Tractor · 2011Unverified

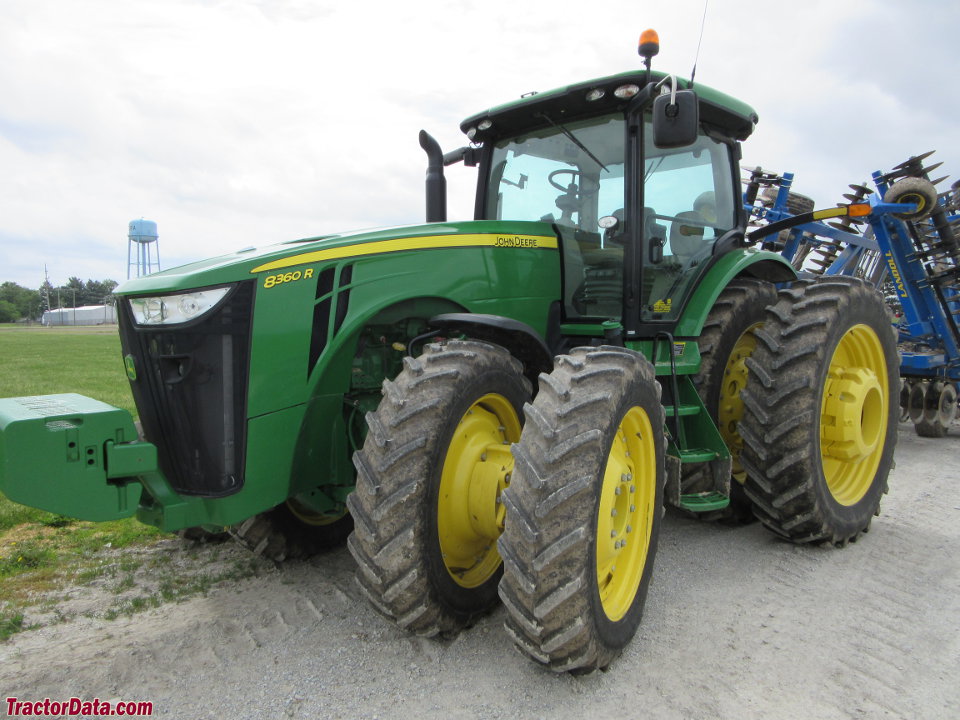

John Deere 8360R

Name: John Deere 8360R
Brand: John Deere

John Deere 8360R — 8R Series · 360 hp. Reference specifications; pending source verification.

The John Deere 8360R is a 360 hp tractor model classified among high-powered machines in its class. Manufactured from 2011 to 2013, it features a 6-cylinder turbocharged diesel liquid-cooled engine. The 8360R operates through a four-wheel drive system with a hydrostatic transmission and has a weight range of 27218 to 30252 pounds. It is suited for tasks on land areas of around 1,500 acres or more.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

360 hp

Max power

265.0 kW

Weight

27218 to 30252 pounds

Catalogue coverage

Variants represented

Richest spec table

152 rows

Recorded power

360 hp

Production years

2011-2013

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Row-Crop tractorReference

Built in Waterloo, Iowa, USAReference

Original price$296,312 (2011)Reference

Three-point hitch capacity on the John Deere 8360R increased by four-hundred pounds for the 2012 model year.Reference

Four-wheel driveReference

Differential lockfront and rear lockReference

Steeringhydrostatic powerReference

SteeringActiveCommand Steering optional (ACS)Reference

Differential hydraulic wet disc brakesReference

Trailer brakeshydraulic and air optionalReference

CommandView II cab standard with heat and air-conditioning.Reference

Variants

8360Rwheeled tractorReference

8360RTtracked tractorReference

Engine

John Deere 9.0L 6-cyl dieselReference

Fuel tank694.9 LReference

Engine (gross)268.5 kWReference

Engine (max)295.3 kWReference

Drawbar (tested)208.2 kWReference

John Deere PowerTech PSXReference

dual turbochargers dieselReference

6-cylinder 24-valveReference

liquid-cooled inlineReference

Optional Intelligent Power Management (IPM) provides a 35HP increase at rated speed.Reference

Displacement9.0 LReference

Bore/Stroke118 x 136 mmReference

EmissionsInterim Tier IVReference

EmissionsStage IIIBReference

Emission controlexhaust gas recirculation (EGR)Reference

Rated Power (gross)268.5 kWReference

Maximum Power (gross)295.3 kWReference

Maximum Power (gross)305.0 kWReference

Air cleanerdual stageReference

Pre-heatingether (optional)Reference

Pre-heatingblock heater (optional)Reference

Compression16:1Reference

Rated RPM2100Reference

StarterelectricReference

Starter volts12Reference

Oil capacity27.9 LReference

Oil change250 hReference

Oil change500 h (JD Plus-50 II oil)Reference

Coolant capacity41.0 LReference

Max power265.0 kWReference

Power at rated engine speed240.0 kWReference

Max power208.2 kWReference

Fuel TypeDieselReference

No of Cylinders6 cylinderReference

Rated engine speed2,100 RPMReference

Emissions complianceInterim Tier IV, Stage IIIB | exhaust gas recirculation (EGR)Reference

Bore and stroke4.66x5.35 inchesReference

Compression ratio16:1Reference

Cooling systemliquid-cooledReference

Interval for engine oil change500 hrReference

Transmission

infinitely variable transmission (IVT)Reference

TransmissionJohn Deere AutoPowrReference

Typeinfinitely variable transmission (IVT)Reference

Gearsinfinite forward and reverseReference

IVT available with right- or left-hand reverser.Reference

Transmission TypeIVTReference

forward and reverse optionsIVT -infinite forward and reverseReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)227.4 kWReference

PTO (tested)265.0 kWReference

Typeclosed center pressure-flow compensatedReference

Pressure200.0 barReference

Rear valves3 to 5Reference

Pump flow132.5 lpmReference

Total flow227.1 lpmReference

Rear Type4N/3Reference

Rear lift (at 24"/610mm)8300 kgReference

Rear lift (at 24"/610mm)8482 kgReference

Front Hitch3N/2 (optional)Reference

Front lift (at ends)3991 kgReference

Front lift (at ends)5193 kgReference

Front lift (at ends)5579 kgReference

Rear PTOindependentReference

Rear PTO Type1000 (1-3/4)Reference

Rear PTO Type1000 (1-3/8 optional)Reference

Rear PTO Type540 (1-3/8 optional)Reference

Power at rated PTO speed258.2 kWReference

Dimensions

Wheelbase302 cmReference

Weight27218 to 30252 poundsReference

Front tire420/85R34Reference

Rear tire480/80R50Reference

Ag front420/85R34Reference

Ag rear480/80R50Reference

Length619 cmReference

Length656 cmReference

Width243 cmReference

Width300 cmReference

Width348 cmReference

Width444 cmReference

Height (cab)352 cmReference

Clearance (front axle)59 cmReference

Clearance (front axle)51 cmReference

Clearance (rear axle)66 cmReference

Clearance (drawbar)35 cmReference

Operating12346 kgReference

Operating13722 kgReference

Max front axle8000 kgReference

Max rear axle11500 kgReference

John Deere 8360R attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps200Reference

Batteries2Reference

Battery CCA925Reference

Battery volts12Reference

Total cold cranking amps925 CCAReference

Capacities

Max capacity18000 kgReference

Capacity548 ciReference

Crankcase oil volume29.5 qtsReference

Test results

OECD 1991: diesel IVT 4WDReference

OECD 1991A: diesel IVT 4WDReference

Diesel IVT 4WDApril 20 - May 5, 2011Link: OCED Tractor Test 1991 fileReference

PTO performanceReference

Fuel use72.7 l/hourReference

Fuel use66.6 l/hourReference

Fuel use70.8 l/hourReference

Drawbar performanceReference

Pull at 9 kphReference

Max pull12426 kgReference

Pull at 6 kphReference

Diesel IVT 4WDApril 20 - May 5, 2011Link: OCED Tractor Test 1991A fileReference

Speeds

The AutoPowr/IVT is available with 50 km/h top speeds with ILS.Reference

General

Make & ModelJohn DeereReference

Cruise controlTRUEReference

Country of manufacturerUSAReference

Hydraulics

Capacity Valves24 valveReference

Pump Rated Output (total)60 gpmReference

Hydraulics Typeclosed center pressure-flow compensatedReference

Maximum operating pressure2,900 psiReference

Remote Valves3 to 5 VALVESReference

Rear Hitch category (SAE designation)Category 4N/3Reference

Front Hitch category (SAE designation)Category 3N/2 (optional)Reference

Front Hitch lift capacity beyond lift points5,579.2 kgReference

Power

Rated Power360 hpReference

PTO

PTO Power305 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Steering & brakes

Brakesdifferential hydraulic wet discReference

Steering typehydrostatic power, ActiveCommand Steering (ACS) optionalReference

Dimensions & weight

Height Over Cab352.8 cmReference

Overall Length656.1 cmReference

Overall Width444.8 cmReference

Front axle clearance59.7 cmReference

Drawbar clearance35.3 cmReference

Overall weight13,722.1 kgReference

Wheels & tyres

Rear Wheel Type480/80R50Reference

Front Wheel Type420/85R34Reference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
