Tractor · 2011Unverified

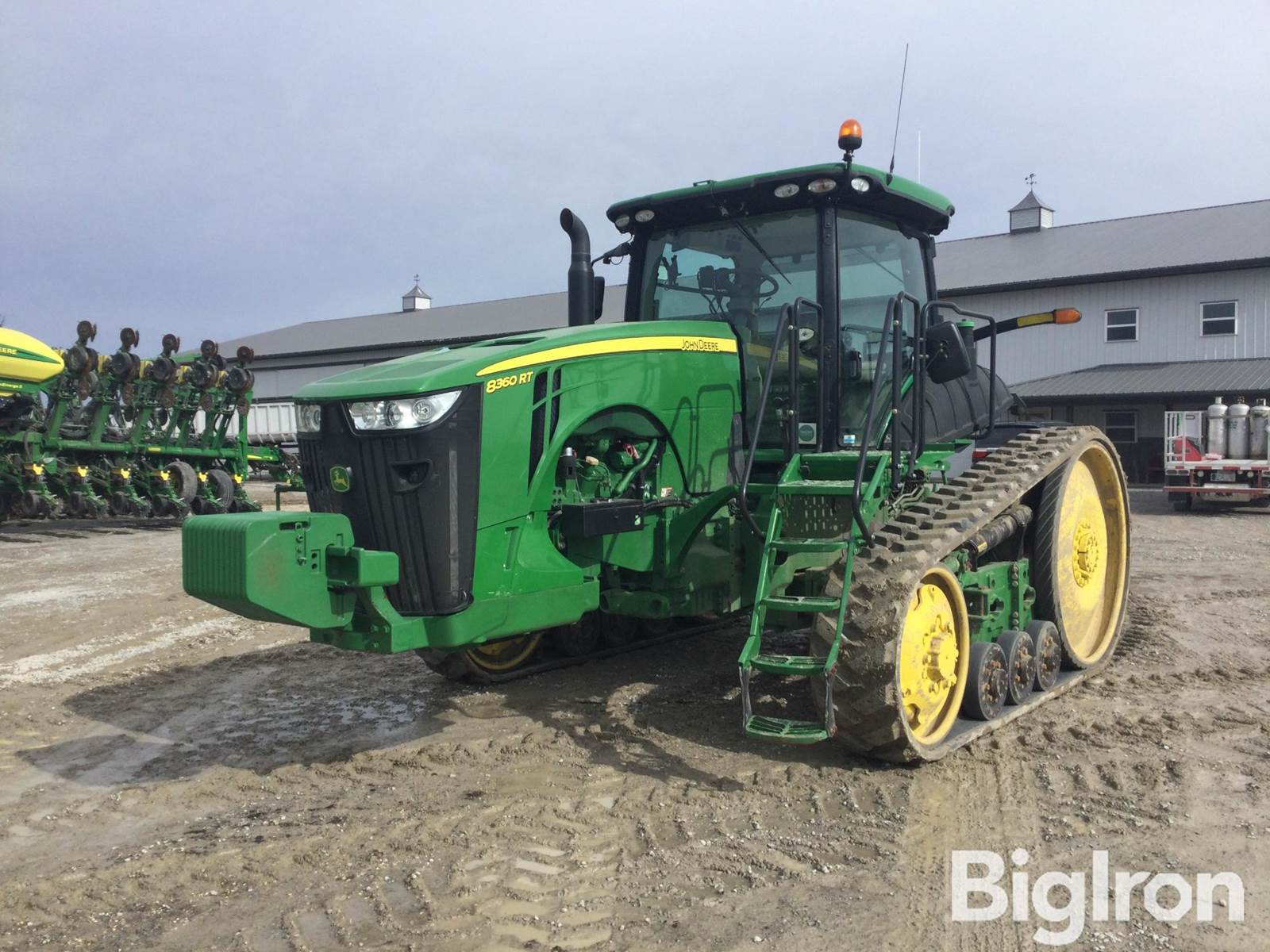

John Deere 8360RT
John Deere 8360RT — 8R Series · 360 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
360 hp
Max power
253.4 kW
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Agricultural Crawler tractorReference
Built in Waterloo, Iowa, USAReference
The John Deere 8360RT was re-tested at Nebraska (Test 2000A) to reflect the new three-point lift capacity for the 2012 model year.Reference
DrivecrawlerReference
Steeringelectro-hydraulic powerReference
CommandView II cab standard with heat and air-conditioning.Reference
Variants
8360Rwheeled tractorReference
8360RTtracked tractorReference
Engine
John Deere 9.0L 6-cyl dieselReference
Engine (gross)268.5 kWReference
Engine (max)295.3 kWReference
Drawbar (tested)191.3 kWReference
John Deere PowerTech PSXReference
dual turbocharged dieselReference
6-cylinder 24-valveReference
liquid-cooled inlineReference
Optional engine Intelligent Power Management (IPM) adds 35 horsepower at rated speed.Reference
Displacement9.0 LReference
Bore/Stroke118 x 136 mmReference
EmissionsInterim Tier IVReference
EmissionsStage IIIBReference
Emission controlexhaust gas recirculation (EGR)Reference
Rated Power (gross)268.5 kWReference
Maximum Power (gross)295.3 kWReference
Maximum Power (gross)305.0 kWReference
Air cleanerdual stage with aspirationReference
Compression16:1Reference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Oil capacity25.0 LReference
Oil change250 hReference
Oil change500 h (with JD Plus-50 II)Reference
Coolant capacity41.0 LReference
Max power253.4 kWReference
Power at rated engine speed227.8 kWReference
Max power191.3 kWReference
Transmission
infinitely variable transmission (IVT)Reference
TransmissionJohn Deere AutoPowrReference
Typeinfinitely variable transmission (IVT)Reference
Gearsinfinite forward and reverseReference
Oil capacity258.6 LReference
PTO & Hydraulics
PTO (claimed)214.8 kWReference
PTO (tested)253.4 kWReference
Hydraulic system258.5 LReference
Typeclosed center pressure-flow compensatedReference
Capacity258.5 LReference
Pressure200.0 barReference
Rear valves3 to 5Reference
Pump flow132.5 lpmReference
Total flow227.1 lpmReference
Rear Type4N/3Reference
Rear lift (at 24"/610mm)8754 kgReference
Rear lift (at 24"/610mm)9072 kgReference
Rear PTOindependentReference
Rear PTO Type1000 (1-3/4)Reference
Power at rated PTO speed246.8 kWReference
Dimensions
Wheelbase251 cmReference
16-inch tracksReference
Length688 cmReference
Width341 cmReference
Width443 cmReference
Height (cab)333 cmReference
Ballasted weight17690 kgReference
Max weight19958 kgReference
Clearance (drawbar)39 cmReference
8360RT Serial Number Location
Serial number on the right side of main tractor frame, below the engine.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Batteries2Reference
Battery CCA925Reference
Battery volts12Reference
John Deere 8360RT Tracks
Width40 cmReference
Width45 cmReference
Width60 cmReference
Width63 cmReference
Width76 cmReference
Test results
OECD 2000: diesel IVT crawlerReference
OECD 2000A: diesel IVT crawlerReference
Diesel IVT crawlerSeptember 8 - 27, 2011Link: OCED Tractor Test 2000 fileReference
PTO performanceReference
Fuel use70.8 l/hourReference
Fuel use65.1 l/hourReference
Fuel use69.3 l/hourReference
Drawbar performanceReference
Fuel use65.5 l/hourReference
Pull at 7.6 KPHReference
Max pull16016 kgReference
Pull at 4.4 KPHReference
Diesel IVT crawlerSeptember 8 - 27, 2011Link: OCED Tractor Test 2000A fileReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
