Tractor · 2014Unverified

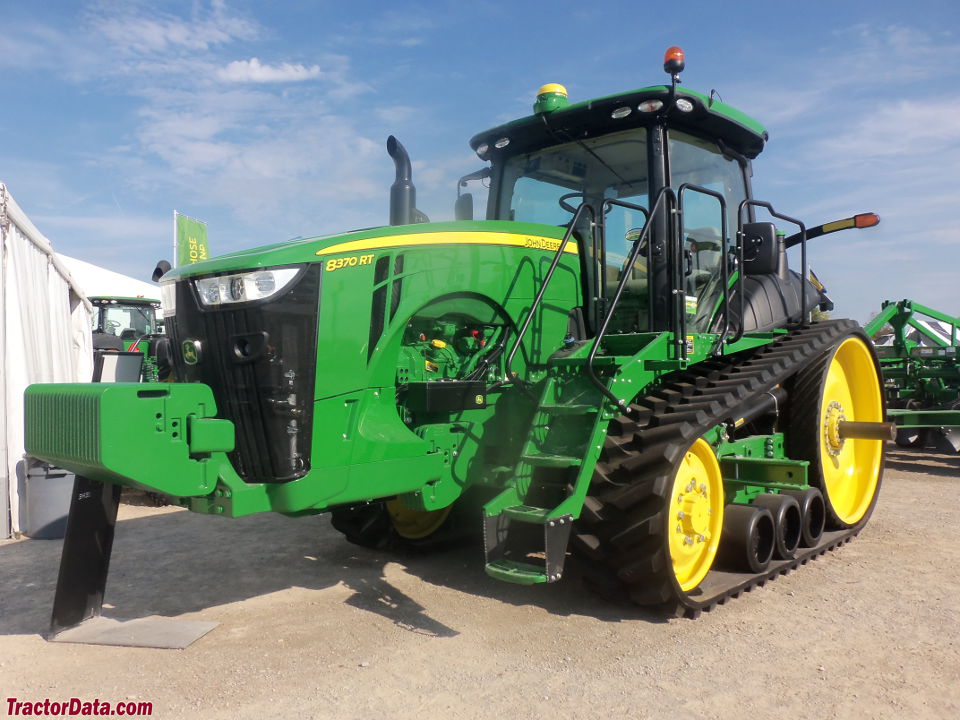

John Deere 8370RT
John Deere 8370RT — 8R Series · 370 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
370 hp
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Agricultural Crawler tractorReference
Built in Waterloo, Iowa, USAReference
Four-wheel driveReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulic (optional)Reference
Trailer brakesdual line air (optional)Reference
CommandView III cab standard with air-conditioning.Reference
Variants
8370Rwheeled tractorReference
8370RTcrawlerReference
Engine
John Deere 9.0L 6-cyl dieselReference
Engine (gross)275.9 kWReference
John Deere PowerTech PSSReference
dual variable geometry turbochargers dieselReference
6-cylinderReference
liquid-cooledReference
Displacement9.0 LReference
Bore/Stroke118 x 136 mmReference
EmissionsTier 4BReference
Emission controlselective catalyst reductionReference
Rated Power (gross)275.9 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
infinitely variable transmission (IVT)Reference
TransmissionJohn Deere AutoPowrReference
Typeinfinitely variable transmission (IVT)Reference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)229.7 kWReference
PTO (claimed)111.9 kWReference
Hydraulic system40.1 LReference
Typeclosed-center load sensing pressure flow compensatedReference
Capacity40.1 LReference
Rear valves4 to 6Reference
Pump flow227.1 lpmReference
SCV flow132.5 lpmReference
SCV flow159.0 lpmReference
Rear TypeIVN/IIIReference
Rear lift6804 kgReference
Rear lift9072 kgReference
DrawbarCat 4Reference
DrawbarCat 4 Heavy-Duty optionalReference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Front PTOoptional independentReference
Front PTO Type1000 (1.75)Reference
Front PTO Type1000 (1.375)Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps240Reference
Batteries2Reference
Battery CCA925 (each)Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
