Industrial Tractor · 1987Unverified

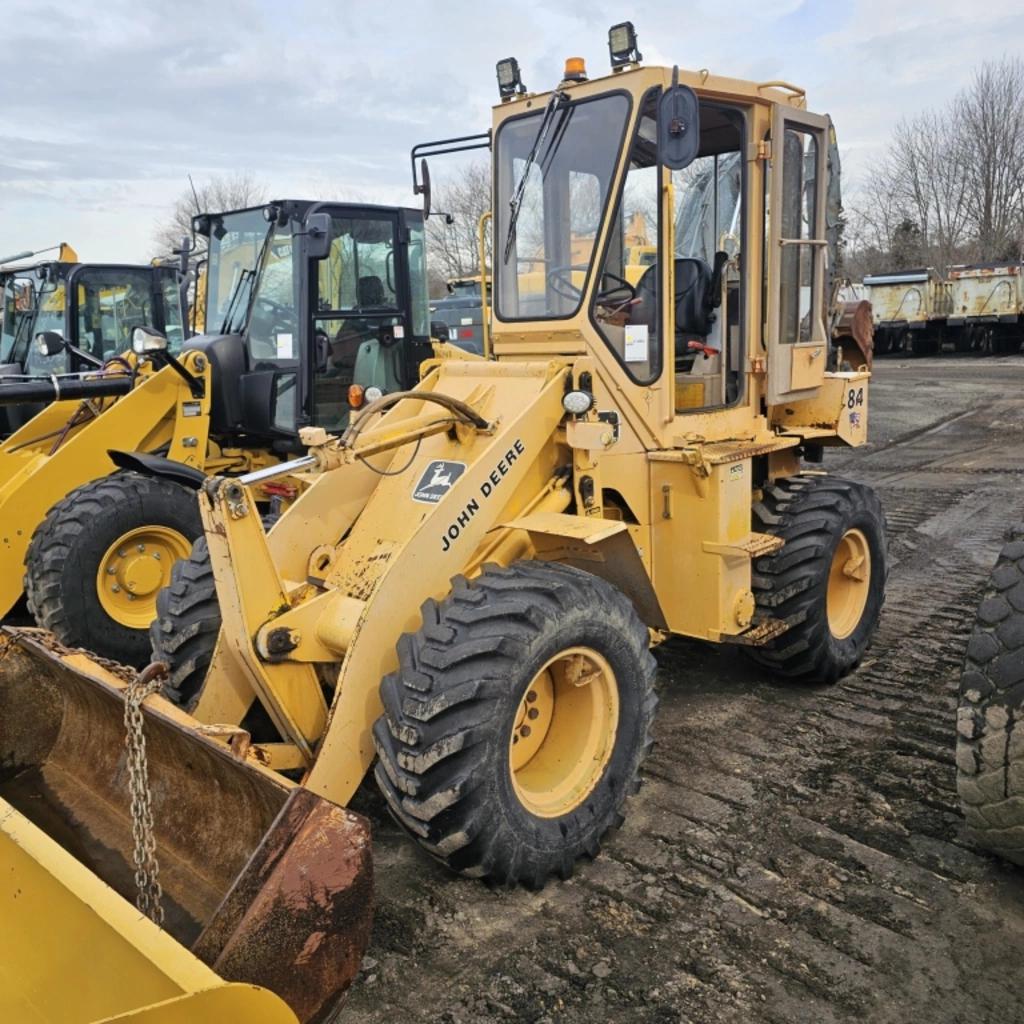

John Deere 84
John Deere 84 — Wheel Loader · 55 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
55 hp
Weight
5101 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Wheel LoaderReference
Four-wheel driveReference
Articulated power steeringReference
Four-post ROPS canopy. Cab available with heat.Reference
Engine
Yanmar 3.5L 4-cyl dieselReference
Fuel tank57.9 LReference
Engine (gross)41.0 kWReference
Engine (net)38.8 kWReference
Yanmar 4TN100Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.5 LReference
Bore/Stroke99 x 109 mmReference
Power (net)38.8 kWReference
Power (gross)41.0 kWReference
Air cleanerdryReference
Rated RPM1800Reference
Torque235.9 NmReference
Torque RPM1200Reference
StarterelectricReference
Starter volts24Reference
Oil capacity12.3 LReference
Coolant capacity20.0 LReference
Transmission
3-speed torque converterReference
Typetorque converterReference
Gears3 forward and 1 reverseReference
PTO & Hydraulics
Typeopen centerReference
Pressure172.4 barReference
Pump flow79.9 lpmReference
Dimensions
Weight5101 kgReference
Front tire17.5/65-20Reference
Rear tire17.5/65-20Reference
Industrial front17.5/65-20Reference
Industrial rear17.5/65-20Reference
Length464 cmReference
Height (ROPS)289 cmReference
Operating weight5101 kgReference
Front tread154 cmReference
Rear tread154 cmReference
John Deere 84 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Batteries2Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
