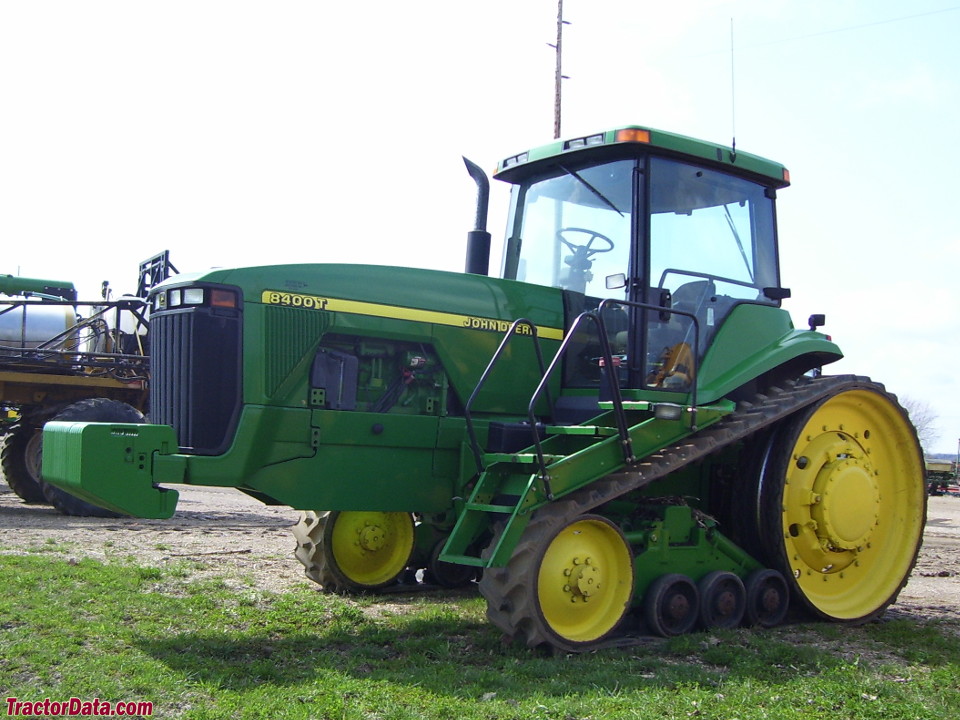

John Deere 8400T
John Deere 8400T — Agricultural Crawler tractor · 227 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
227 hp
Max power
190.3 kW
Weight
11340 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Agricultural Crawler tractorReference
Built in Waterloo, Iowa, USAReference
DrivecrawlerReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
CommandView Cab standardReference
Variants
8400wheeled tractorReference
8400Tcrawler tractorReference
Engine
John Deere 8.1L 6-cylReference
Drawbar (tested)146.0 kWReference
John DeereReference
turbocharged intercooledReference
6-cylinderReference
liquid-cooledReference
Displacement8.1 LReference
Bore/Stroke116 x 129 mmReference
Air cleanertwo paper elementsReference
Compression16.5:1Reference
Rated RPM2200Reference
Starter volts12Reference
Oil capacity21.5 LReference
Coolant capacity34.0 LReference
Max power190.3 kWReference
Power at rated engine speed169.1 kWReference
Max power146.0 kWReference
Transmission
16-speed full powershiftReference
Typefull powershiftReference
Gears16 forward and 4 reverseReference
Oil capacity246.1 LReference
PTO & Hydraulics
PTO (claimed)167.8 kWReference
PTO (tested)190.3 kWReference
Hydraulic system246.0 LReference
Typepressure/flow compensated (PFC)Reference
Capacity246.0 LReference
Pressure200.0 barReference
Valves3 to 5Reference
Pump flow113.6 lpmReference
Pump flow143.8 lpmReference
Rear TypeIII/IIINReference
Rear lift7098 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Capacities
Fuel492.1 LReference
Dimensions
Wheelbase226 cmReference
Weight11340 kgReference
16-inch tracksReference
Length525 cmReference
Length557 cmReference
Width263 cmReference
Height (cab)312 cmReference
Operating weight11340 kgReference
Ballasted weight12396 kgReference
Ground clearance44 cmReference
Ground clearance55 cmReference
8400T Serial Numbers
Location:Rear of tractorReference
1997901001Reference
1998902001Reference
1999904001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps140Reference
Batteries2Reference
Battery volts12Reference
Questions
I am attempting to finish the fall harvest and one is doing the ripping for our fall tillage. My question to you, if you are the person to ask is where is the transmission / hydraulic dip stick on the 8400t john deere tractor? I have not been able to find a picture in the manual that came with the tractor that we purchased used a few years ago. Looking at the manual it appears there is not a dipstick. It looks like a sightglass just to the left of the rear PTO shaft.Reference
John Deere 8400T Tracks
Width40 cmReference
Width60 cmReference
Width76 cmReference
Test results
Diesel 16-speed crawlerApril 8 - May 1, 1998Link: OCED Tractor Test 1747 fileReference
PTO performanceReference
Fuel use51.5 l/hourReference
Fuel use49.2 l/hourReference
Drawbar performanceReference
Gear 9 used for power test.Reference
Max pull12697 kgReference
Gear 3 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
