Industrial Tractor · 1994Unverified

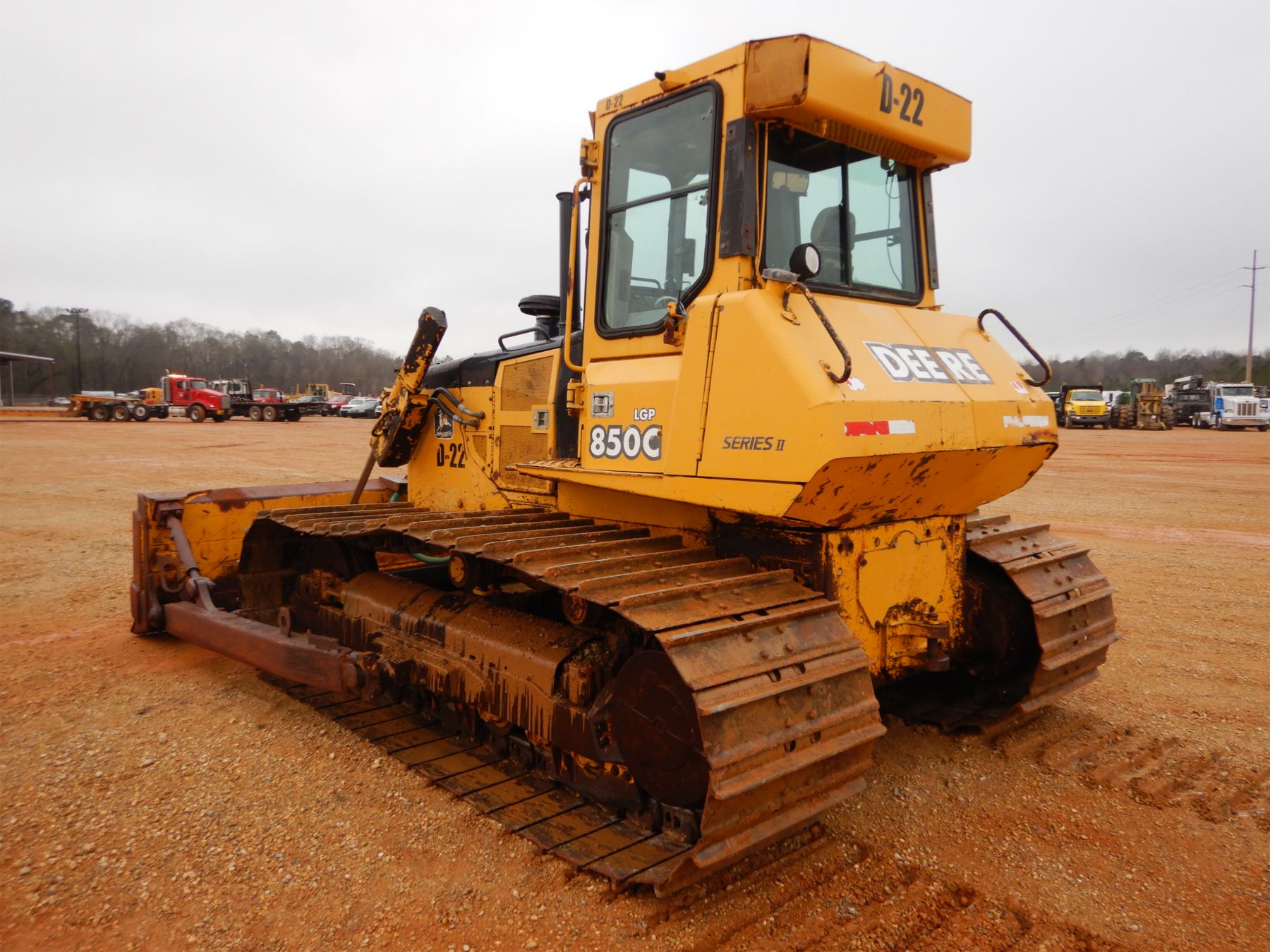

John Deere 850C
John Deere 850C — Bulldozer · 185 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
185 hp
Weight
15115 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
BulldozerReference
DrivecrawlerReference
Four-post ROPS canopy. Cab available with optional air-conditioning.Reference
Engine
John Deere 7.6L 6-cyl dieselReference
Fuel tank348.2 LReference
Engine (gross)138.0 kWReference
Engine (net)134.2 kWReference
John Deere 6076AReference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.6 LReference
Bore/Stroke116 x 121 mmReference
Power (net)134.2 kWReference
Power (gross)138.0 kWReference
Air cleanerdryReference
Torque783.8 NmReference
Torque RPM1300Reference
StarterelectricReference
Starter volts24Reference
Oil capacity32.2 LReference
Coolant capacity34.1 LReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Typeopen centerReference
Pressure155.1 barReference
Pump flow166.5 lpmReference
Dimensions
Weight15115 kgReference
16.4-inch tracksReference
Straight dozer length526 cmReference
Semi-U dozer length534 cmReference
Angle Dozer dozer length536 cmReference
Height (ROPS)314 cmReference
Height (exhaust)316 cmReference
Operating weight15115 kgReference
Gauge187 cmReference
John Deere 850C attachments
bladeReference
850C Serial Numbers
1994797246Reference
1995809310Reference
1996815220Reference
1997825626Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Batteries2Reference
Battery volts12Reference
John Deere 850C Tracks
Width41 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
