Tractor · 2002Unverified

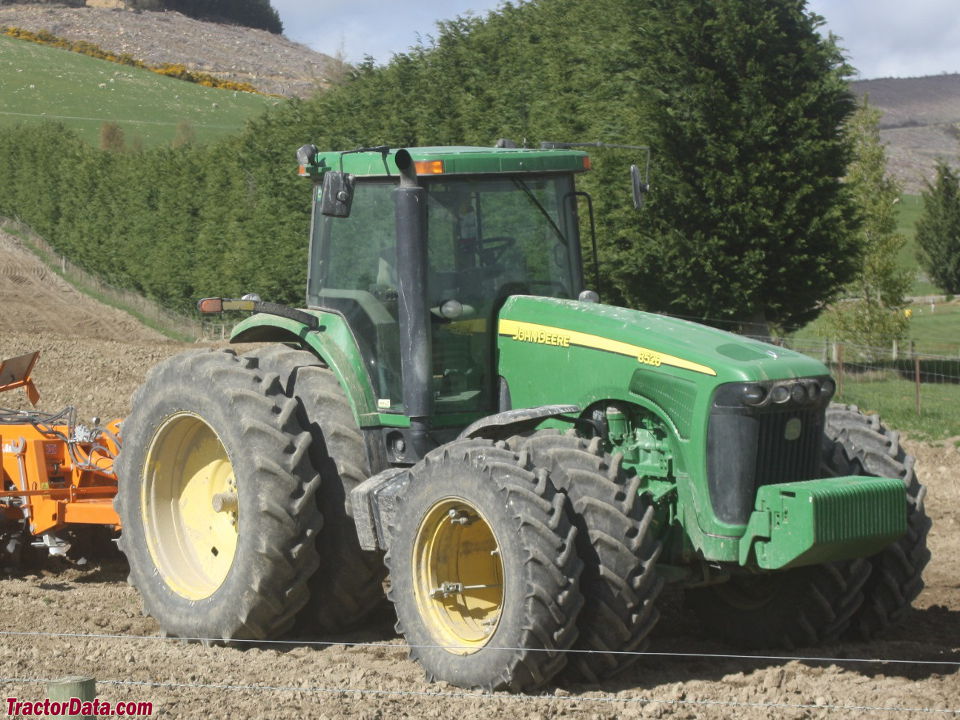

John Deere 8520
John Deere 8520 — Row-Crop tractor · 305 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
305 hp
Max power
218.4 kW
Weight
23050 to 23800 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Row-Crop tractorReference
Built in Waterloo, Iowa, USAReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Cab standard.Reference
Variants
8520wheeled tractorReference
8520TcrawlerReference
Engine
John Deere 8.1L 6-cyl dieselReference
Engine (gross)227.4 kWReference
Engine (net)220.0 kWReference
Engine (max)249.8 kWReference
Drawbar (tested)167.9 kWReference
John DeereReference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement8.1 LReference
Bore/Stroke116 x 129 mmReference
Rated Power (net)220.0 kWReference
Rated Power (gross)227.4 kWReference
Maximum Power (net)242.4 kWReference
Maximum Power (gross)249.8 kWReference
Fuel systemelectronic high-pressure common rail (HPCR)Reference
Air cleanerdry with secondary elementReference
Compression16.5:1Reference
Rated RPM2200Reference
Idle RPM900-2300Reference
Operating RPM1500-2200Reference
Starter volts12Reference
Coolant capacity34.0 LReference
Oil capacity30.9 LReference
Oil change250 hReference
Max power218.4 kWReference
Power at rated engine speed191.3 kWReference
Max power167.9 kWReference
Transmission
16-speed full power shiftReference
TransmissionJohn Deere PowerShiftReference
Typefull power shiftReference
Gears16 forward and 4 reverseReference
Clutchhydraulic wet discReference
Oil capacity149.9 LReference
Full power shift transmission with single shift lever with display on cab corner post. Tractor begins in 7 (forward) and 2 (reverse) on start up. Clutch pedal may be used to pre-select a gear by holding clutch and pressing lever until desired gear is reached. Automatic PowerShift (APS) allows automated shifting to match load.Reference
PTO & Hydraulics
PTO (claimed)190.2 kWReference
PTO (tested)218.4 kWReference
Hydraulic system149.9 LReference
Typeclosed center pressure-flow compensated (PFC)Reference
Capacity149.9 LReference
Pressure200.0 barReference
Valves5Reference
SCV flow113.6 lpmReference
Total flow126.8 lpmReference
Total flow160.9 lpmReference
Rear TypeIII/IIINReference
Rear lift6885 kgReference
Rear lift7847 kgReference
Front HitchIIINReference
Front lift4989 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discsReference
Rear PTO Type1000 (1.75)Reference
Engine RPM1000@2200Reference
Capacities
Fuel605.6 LReference
Front hubs4.0 LReference
Front diff.13.4 LReference
Dimensions
Wheelbase298 cmReference
Weight23050 to 23800 poundsReference
Rear tire18.4R46Reference
Ag rear18.4R46Reference
Length538 cmReference
Height (cab)310 cmReference
Front axle4WDReference
Front axleIndependent Link SuspensionReference
Rack-and-pinion rear axle119 by 3009 mmReference
4WD Front tread152 to 203 cmReference
ILS Front tread152 to 223 cmReference
Shipping10455 kgReference
Operating10795 kgReference
Max Drawbar2222 kgReference
Max Drawbar4536 kgReference
8520 Serial Numbers
Location:Rear of tractor.Reference
20021001Reference
200310001Reference
200420001Reference
200530001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps150Reference
Batteries2Reference
Battery CCA925Reference
Battery volts12Reference
Test results
Diesel 16-speed 4WDMay 2 - 31, 2002Link: OCED Tractor Test 1801 fileReference
PTO performanceReference
Fuel use60.9 l/hourReference
Fuel use56.8 l/hourReference
Drawbar performanceReference
Fuel use56.4 l/hourReference
Gear 8 used for power test.Reference
Max pull16153 kgReference
Gear 3 used for pull test.Reference
Speeds
With 18.4R46 rear tires.Reference
