Tractor · 2006Unverified

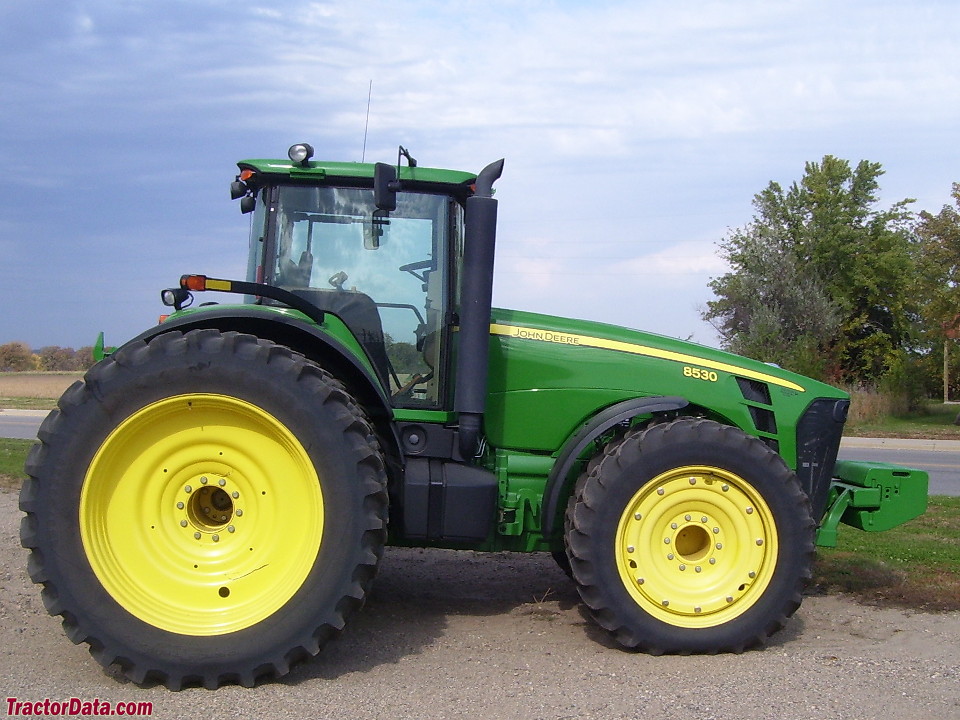

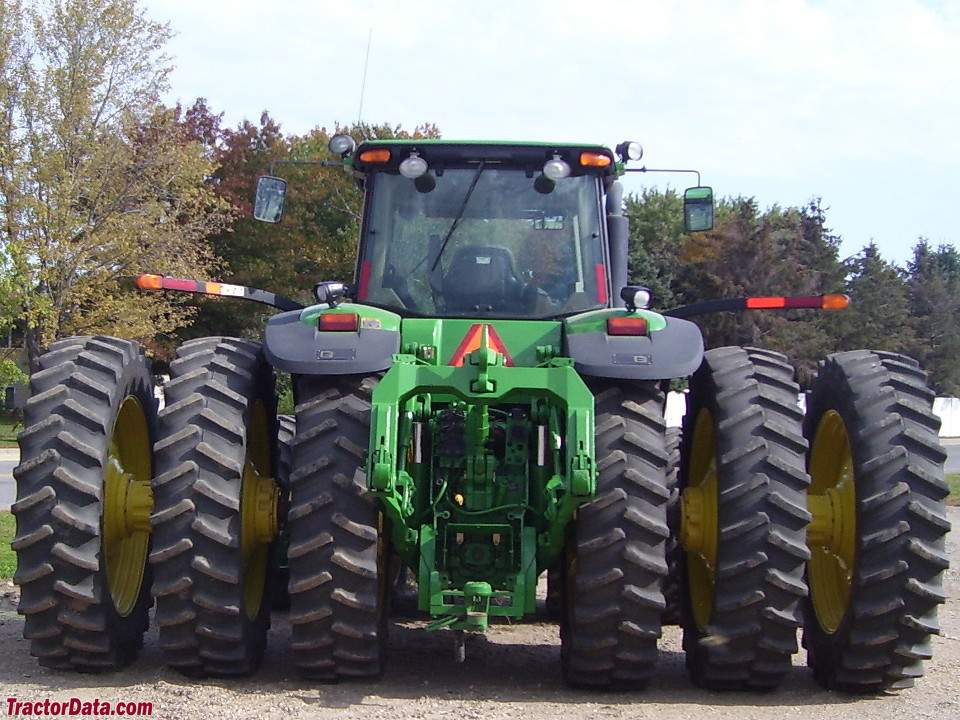

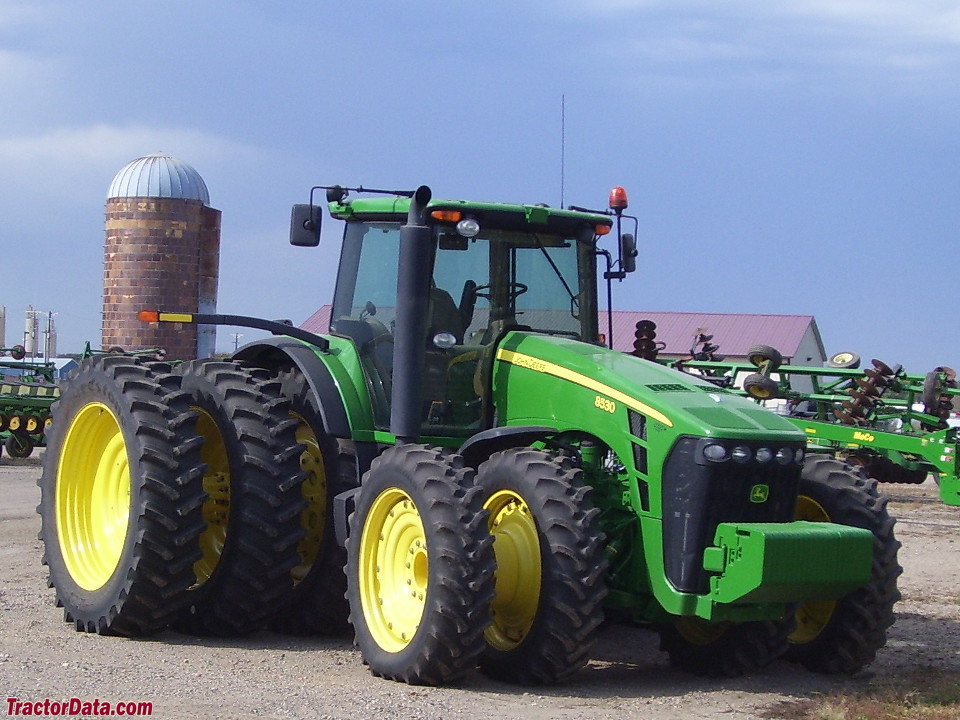

John Deere 8530
John Deere 8530 — Row-Crop tractor · 330 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
330 hp
Max power
233.2 kW
Weight
12156 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Row-Crop tractorReference
Built in Waterloo, Iowa, USAReference
Drive4x4 Independent Link Suspension MFWD 4WD (ILS)Reference
Power steeringReference
Hydraulic wet disc brakesReference
CommandView cab standard.Reference
Engine
John Deere 9.0L 6-cyl dieselReference
Engine (gross)246.1 kWReference
Engine (max)268.5 kWReference
Drawbar (tested)179.2 kWReference
John Deere PowerTechReference
variable geometry turbocharger dieselReference
6-cylinder 24-valveReference
liquid-cooled inlineReference
Displacement9.0 LReference
Bore/Stroke118 x 136 mmReference
Rated Power (gross)246.1 kWReference
Maximum Power (gross)268.5 kWReference
Air cleanerdual paper elementsReference
Compression16.3:1Reference
Rated RPM2100Reference
Idle RPM900-2200Reference
Operating RPM1500-2100Reference
Starter volts12Reference
Oil capacity27.9 LReference
Coolant capacity40.0 LReference
Max power233.2 kWReference
Power at rated engine speed207.0 kWReference
Max power179.2 kWReference
PTO & Hydraulics
PTO (claimed)205.1 kWReference
PTO (tested)233.2 kWReference
Hydraulic system36.0 LReference
Hydraulic system54.9 LReference
Typeclosed center pressure-flow compensating PFCReference
Capacity36.0 LReference
Capacity54.9 LReference
Pressure206.2 barReference
Valves3 to 5Reference
Pump flow120.0 lpmReference
Total flow227.1 lpmReference
Rear TypeIVN/IIIReference
Rear lift (at 24"/610mm)8312 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Rear PTO Type540/1000 (optional)Reference
Engine RPM540@1817Reference
Engine RPM1000@2000Reference
Power at rated PTO speed225.5 kWReference
Capacities
Fuel681.3 LReference
Dimensions
Wheelbase302 cmReference
Weight12156 kgReference
Length556 cmReference
Height312 cmReference
Operating weight12156 kgReference
Ground clearance44 cmReference
8530 Serial Number Location
Rear of tractorReference
8530 Serial Numbers
20061001Reference
200710005Reference
200820007Reference
200940000Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Batteries2Reference
Battery CCA925Reference
Battery volts12Reference
Test results
Diesel IVT 4WDOctober 5 - 25, 2006Link: OCED Tractor Test 1890 fileReference
PTO performanceReference
Fuel use63.2 l/hourReference
Fuel use58.3 l/hourReference
Fuel use61.3 l/hourReference
Drawbar performanceReference
Fuel use57.5 l/hourReference
Pull at 10 kphReference
Max pull11177 kgReference
Pull at 5.8 kphReference
Transmission
TransmissionJohn Deere Infinitely Variable Transmission (IVT)Reference
Gearsinfinite forward and reverseReference
IVT available with 40 or 50 kph (25 or 31 mph) maximum speed. With maximum speed set to less than 2 kph the transmission automatically enters creeper mode.Reference
