Tractor · 1993Unverified

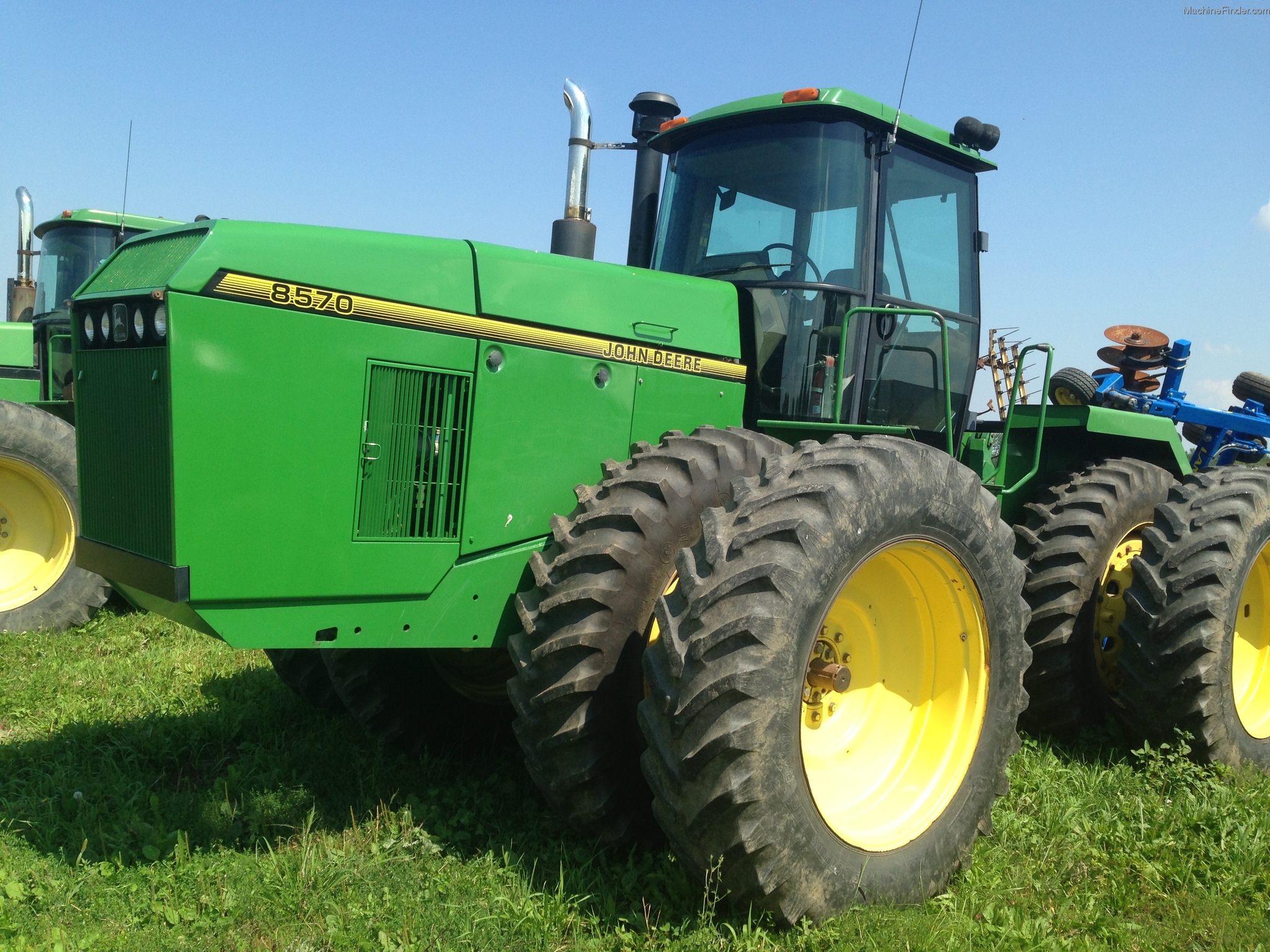

John Deere 8570
John Deere 8570 — Four-wheel Drive (4WD) tractor · 250 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
250 hp
Max power
142.9 kW
Weight
29564 to 32100 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Four-wheel Drive (4WD) tractorReference
Built in Waterloo, Iowa, USAReference
Original price was $96,000 in 1996Reference
Four-wheel driveReference
Final drivesinboard planetaryReference
Steeringhydrostatic powerReference
Hydraulic wet discs brakesReference
Sound-Gard cab standard.Reference
Engine
John deere 7.6L 6-cyl dieselReference
Engine (gross)186.4 kWReference
Drawbar (tested)142.9 kWReference
John deereReference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.6 LReference
Bore/Stroke116 x 121 mmReference
Power (gross)186.4 kWReference
Compression15.8:1Reference
Rated RPM2100Reference
Firing order1-5-3-6-2-4Reference
Starter volts12Reference
Oil capacity23.0 LReference
Coolant capacity54.9 LReference
Power at rated engine speed155.3 kWReference
Max power142.9 kWReference
Transmission
12-speed partially synchronizedReference
24-speed two-speed power shiftReference
TransmissionSyncroReference
Typepartially synchronizedReference
Gears12 forward and 3 reverseReference
ClutchPermaClutch hydraulic wet discReference
Three synchronized gears (1-3) in four ranges (A-D).Reference
TransmissionPowrSyncReference
Typetwo-speed power shiftReference
Gears24 forward and 6 reverseReference
Clutchhydraulic wet discReference
Six gears (1-6) in four ranges (A-D). Power shift between gear pairs 1/2, 3/4, and 5/6. Synchronized shifting between other gears and ranges.Reference
PTO & Hydraulics
PTO (claimed)152.9 kWReference
PTO (tested)155.3 kWReference
Hydraulic system143.8 LReference
Typeclosed center pressure compensatedReference
Capacity143.8 LReference
Pressure174.4 barReference
Rear valves3 to 5Reference
Pump flow169.6 lpmReference
SCV flow126.0 lpmReference
Rear Type3 (optional)Reference
Controldraft sensingReference
Rear lift6794 kgReference
Rear PTOindependent (optional)Reference
Clutchhydraulic wet discReference
Rear PTO Type1000 (1.75)Reference
Power at rated PTO speed172.1 kWReference
Capacities
Fuel832.7 LReference
Dimensions
Wheelbase340 cmReference
Weight29564 to 32100 poundsReference
Front tire24.5R-32Reference
Rear tire24.5R-32Reference
Ag front24.5R-32Reference
Ag front18.4R-38Reference
Ag front20.8R-38Reference
Ag front710/70R38Reference
Ag front18.4R-42Reference
Ag front20.8R-42Reference
Ag front18.4R-46Reference
Ag rear24.5R-32Reference
Ag rear18.4R-38Reference
Ag rear20.8R-38Reference
Ag rear710/70R38Reference
Ag rear18.4R-42Reference
Ag rear20.8R-42Reference
Ag rear18.4R-46Reference
Length683 cmReference
Weight14560 kgReference
Shipping weight13410 kgReference
Front axle99 by 3048 mmReference
Rear axle99 by 3048 mmReference
8570 Serial Number Location
Left side of tractor hinge.Reference
8570 Serial Numbers
19931001Reference
19941551Reference
19952595Reference
19963001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Batteries2Reference
Battery CCA925Reference
Battery volts12Reference
Test results
Diesel PowerSync 4WDOctober 21 - December 1, 1993Link: Nebraska Tractor Test 1670 fileReference
PTO performanceReference
Fuel use45.0 l/hourReference
Fuel use47.3 l/hourReference
Drawbar performanceReference
Fuel use44.7 l/hourReference
Max pull14480 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
