Tractor · 2019Unverified

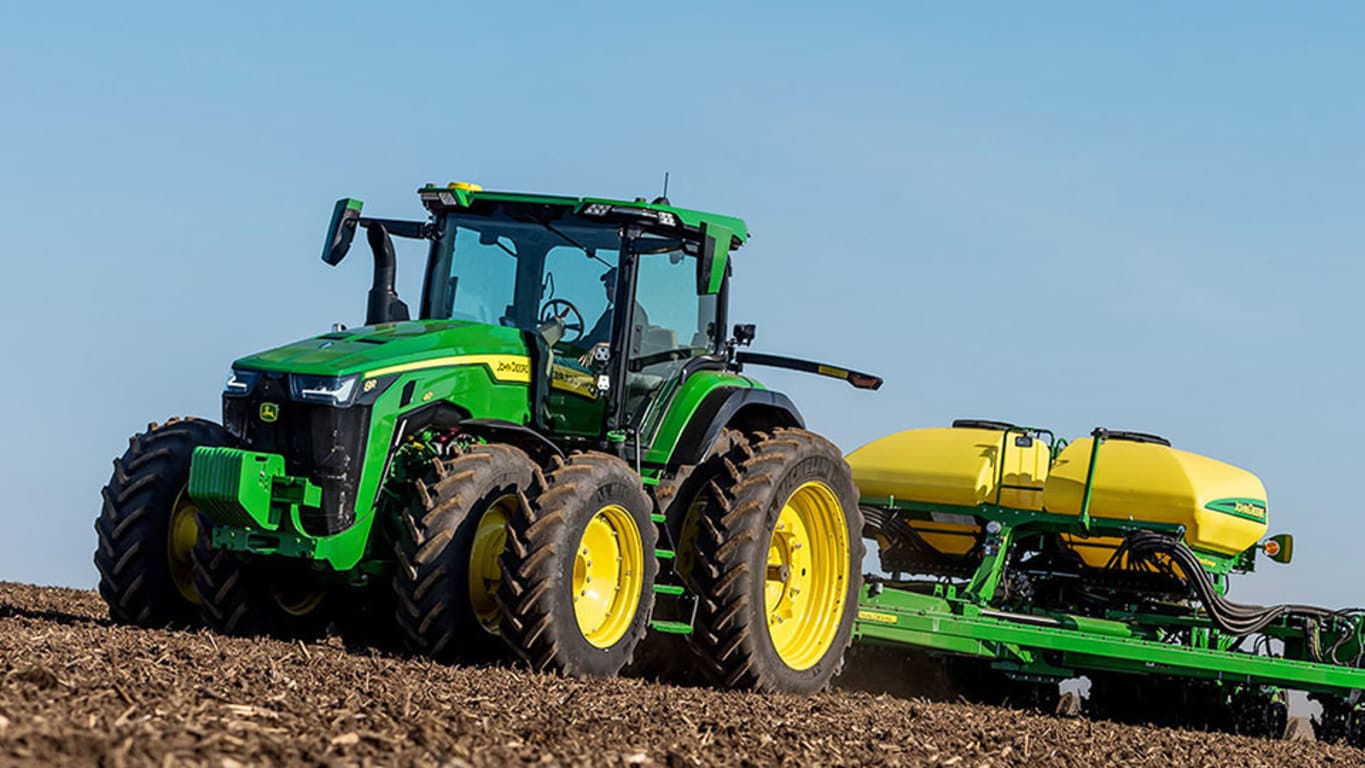

John Deere 8R 230
John Deere 8R 230 — 8R Series · 230 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
230 hp
Weight
12610 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Row-Crop tractorReference
Built in Waterloo, Iowa, USAReference
Original price was $283,001 in 2020Reference
Four-wheel driveReference
Final drivesinboard planetaryReference
Power steeringReference
Cab standard with air-conditioning.Reference
Engine
John Deere 9.0L 6-cyl dieselReference
Fuel tank726.7 LReference
Exhaust fluid (DEF)37.1 LReference
Engine (gross)171.5 kWReference
Engine (max)188.7 kWReference
John DeereReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement9.0 LReference
Bore/Stroke118 x 136 mmReference
EmissionsTier IVReference
Rated Power (gross)171.5 kWReference
Maximum Power (gross)188.7 kWReference
Fuel systemelectronic high-pressure common railReference
Compression16.0:1Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed full power shiftReference
23-speed full power shiftReference
infinitely variable transmissionReference
Typefull power shiftReference
Gears16 forward and 5 reverseReference
Transmissione23Reference
Gears23 forward and 11 reverseReference
Typeinfinitely variable transmissionReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)135.7 kWReference
Typeclosed-center pressure flow compensatedReference
Pressure204.0 barReference
Rear valves4 to 6Reference
Pump flow227.1 lpmReference
Pump flow317.9 lpmReference
SCV flow132.5 lpmReference
Rear TypeIII/IIINReference
Rear TypeIVN/IIIReference
Controlelectro-hydraulic draft sensingReference
Rear lift (at 24"/610mm)6894 kgReference
Rear lift (at 24"/610mm)8391 kgReference
Rear lift (at 24"/610mm)9072 kgReference
Front HitchIIINReference
Front lift (at ends)5200 kgReference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Engine RPM1000@2003Reference
Engine RPM1000E@1596Reference
Dimensions
Wheelbase308 cmReference
Wheelbase305 cmReference
Weight12610 kgReference
Front tire420/90R30Reference
Rear tire480/80R46Reference
Standard tires (ag)Front: 420/90R30. Rear: 480/80R46Reference
Length642 cmReference
Height (cab)350 cmReference
Clearance (rear axle)80 cmReference
Clearance (drawbar)38 cmReference
Rear axle109 by 2997 mmReference
Rear axle119 by 2550 mmReference
Rear axle119 by 3009 mmReference
Front tread152 to 223 cmReference
Front tread152 to 365 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps250Reference
Charging amps330Reference
Batteries2Reference
Battery CCA925Reference
Battery volts12Reference
Battery Group31Reference
Speeds
With Group 48 tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
