Tractor · 2019Unverified

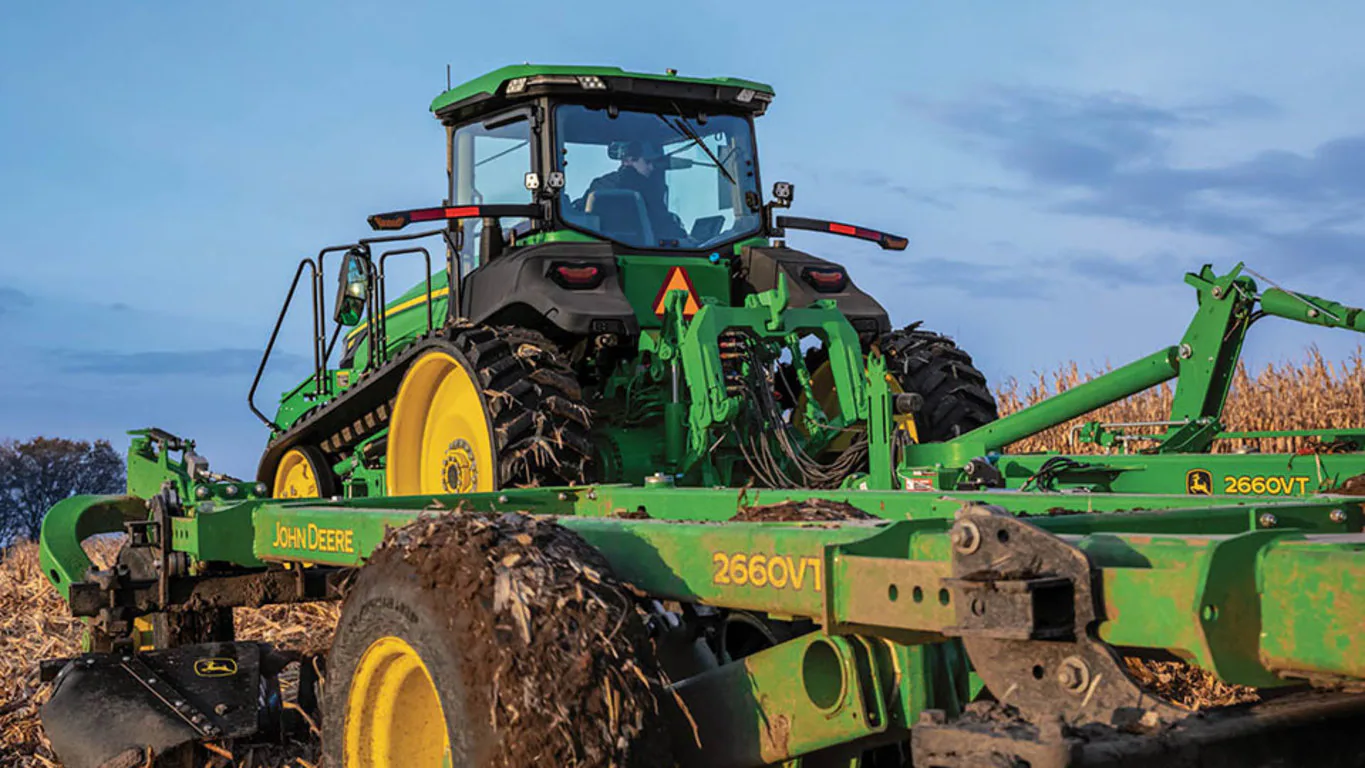

John Deere 8RT 340
John Deere 8RT 340 — 8R Series · 340 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
340 hp
Weight
15603 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Agricultural Crawler tractorReference
Built in Waterloo, Iowa, USAReference
Original price was $430,355 in 2020Reference
DrivecrawlerReference
Cab standard with air-conditioning.Reference
Variants
8R 340wheeledReference
8RT 340two-trackReference
8RX 340four-trackReference
Engine
John Deere 9.0L 6-cyl dieselReference
Fuel tank764.6 LReference
Exhaust fluid (DEF)31.4 LReference
Engine (gross)253.5 kWReference
Engine (max)278.9 kWReference
John DeereReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement9.0 LReference
Bore/Stroke118 x 136 mmReference
EmissionsTier IVReference
Rated Power (gross)253.5 kWReference
Maximum Power (gross)278.9 kWReference
Fuel systemelectronic high-pressure common railReference
Compression16.0:1Reference
StarterelectricReference
Starter volts12Reference
Transmission
23-speed full power shiftReference
infinitely variable transmissionReference
Transmissione23Reference
Typefull power shiftReference
Gears23 forward and 11 reverseReference
Typeinfinitely variable transmissionReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)211.8 kWReference
Typeclosed-center pressure flow compensatedReference
Pressure204.0 barReference
Rear valves4 to 6Reference
Pump flow227.1 lpmReference
SCV flow132.5 lpmReference
SCV flow159.0 lpmReference
Rear TypeIVN/IIIReference
Controlelectro-hydraulic draft sensingReference
Rear lift (at 24"/610mm)9072 kgReference
Rear lift (at 24"/610mm)6894 kgReference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Engine RPM1000@2000Reference
Dimensions
Wheelbase247 cmReference
Weight15603 kgReference
25-inch tracksReference
Gauge182 to 304 cmReference
Gauge284 to 406 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps250Reference
Charging amps330Reference
Batteries2Reference
Battery CCA925Reference
Battery volts12Reference
Battery Group31Reference
John Deere 8RT 340 Tracks
Width63 cmReference
Width40 cmReference
Width45 cmReference
Width60 cmReference
Width76 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
