Tractor · 2019Unverified

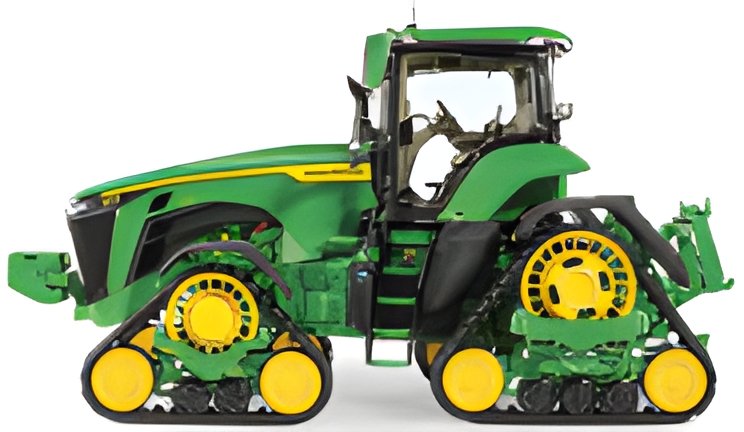

John Deere 8RX 410
John Deere 8RX 410 — 8R Series · 410 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
410 hp
Max power
284.5 kW
Weight
19504 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Agricultural Crawler tractorReference
Built in Waterloo, Iowa, USAReference
Original price was $561,503 in 2020Reference
DrivecrawlerReference
Differential lockelectro-hydraulic front and rearReference
Cab standard with air-conditioning.Reference
Variants
8R 410wheeledReference
8RT 410two-trackReference
8RX 410four-trackReference
Engine
John Deere 9.0L 6-cyl dieselReference
Fuel tank927.3 LReference
Exhaust fluid (DEF)37.1 LReference
Engine (gross)305.7 kWReference
Engine (max)330.3 kWReference
Drawbar (tested)234.6 kWReference
John DeereReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement9.0 LReference
Bore/Stroke118 x 136 mmReference
EmissionsTier IVReference
Rated Power (gross)305.7 kWReference
Maximum Power (gross)330.3 kWReference
Fuel systemelectronic high-pressure common railReference
Compression16.0:1Reference
StarterelectricReference
Starter volts12Reference
Max power284.5 kWReference
Power at rated engine speed252.1 kWReference
Max power234.6 kWReference
Transmission
23-speed full power shiftReference
Transmissione23Reference
Typefull power shiftReference
Gears23 forward and 11 reverseReference
PTO & Hydraulics
PTO (claimed)231.2 kWReference
PTO (tested)284.5 kWReference
Typeclosed-center pressure flow compensatedReference
Pressure204.0 barReference
Rear valves4 to 6Reference
Pump flow227.1 lpmReference
Pump flow317.9 lpmReference
SCV flow132.5 lpmReference
SCV flow159.0 lpmReference
Rear TypeIVN/IIIReference
Controlelectro-hydraulic draft sensingReference
Rear lift (at 24"/610mm)9072 kgReference
Rear lift (at 24"/610mm)6894 kgReference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Engine RPM1000@2000Reference
Power at rated PTO speed275.1 kWReference
Dimensions
Wheelbase323 cmReference
Weight19504 kgReference
18-inch tracksReference
Gauge193 cmReference
Gauge203 cmReference
Gauge223 cmReference
Gauge304 cmReference
8RX 410 Serial Number Location
Serial number plate on the right side of the frame, above the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps250Reference
Charging amps330Reference
Batteries2Reference
Battery CCA925Reference
Battery volts12Reference
Battery Group31Reference
John Deere 8RX 410 Tracks
Width45 cmReference
Width60 cmReference
Width76 cmReference
Test results
Diesel e23 tracksOctober 2 - 15, 2020Link: OCED Tractor Test 1175 fileReference
PTO performanceReference
Fuel use71.2 l/hourReference
Fuel use65.5 l/hourReference
Fuel use70.8 l/hourReference
Drawbar performanceReference
Fuel use72.3 l/hourReference
Gear 11 used for power test.Reference
Max pull16441 kgReference
Gear 6 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
