Tractor · 1986Unverified

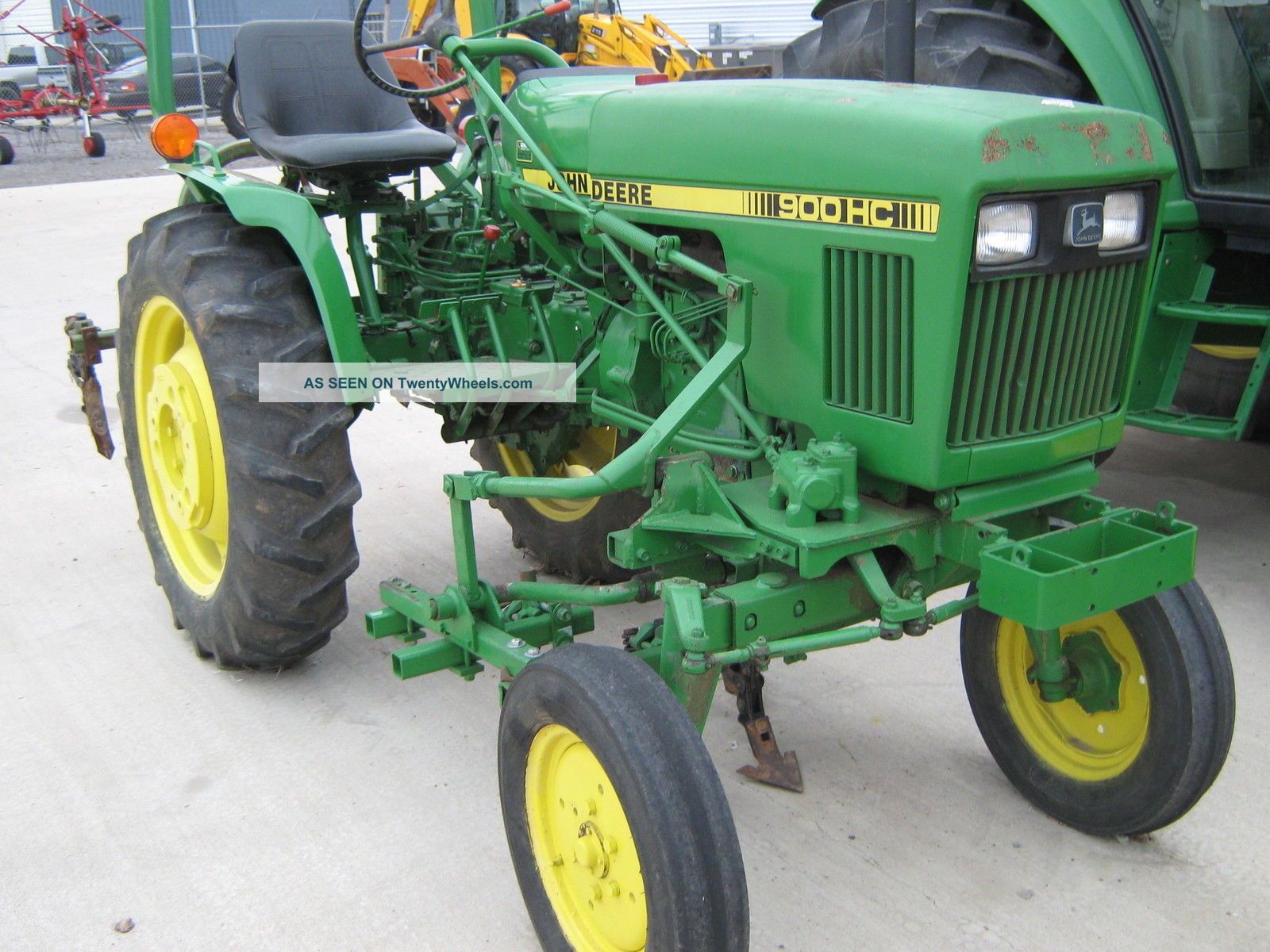

John Deere 900HC

Name: John Deere 900HC
Brand: John Deere

John Deere 900HC — High-Clearance tractor · 25 hp. Reference specifications; pending source verification.

The John Deere 900HC is a compact tractor with a rated engine power of 25 hp. It was produced from 1986 to 1988 and features a 3-cylinder diesel liquid-cooled engine. The tractor is equipped with two-wheel drive and an 8-speed gearbox, with a listed weight of 1299 kg. It is suitable for tasks covering approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

25 hp

Weight

1299 kg

Catalogue coverage

Variants represented

Richest spec table

76 rows

Recorded power

25 hp

Recorded weight

1299 kg

Transmissions

8-speed gear

Production years

1986-1988

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

DistributorJohn DeereReference

ManufacturerYanmarReference

High-Clearance tractorReference

Built in JapanReference

Original price was $13,000 in 1990Reference

Two-wheel driveReference

Final drivesbull gearReference

Differential lockmechanical rearReference

Manual steeringReference

Dry internal expanding shoe brakesReference

Two-post fixed ROPS. Optional canopy.Reference

Engine

John Deere 1.3L 3-cyl dieselReference

Fuel tank32.2 LReference

Engine (gross)18.6 kWReference

Engine (net)17.9 kWReference

John Deere 3T80JReference

dieselReference

3-cylinderReference

liquid-cooled inlineReference

Displacement1.3 LReference

Bore/Stroke80 x 83 mmReference

Power (net)17.9 kWReference

Power (gross)18.6 kWReference

Air cleanerdryReference

Compression21:1Reference

Rated RPM2600Reference

Idle RPM1900-2600Reference

Firing order1-3-2Reference

Starter volts12Reference

Oil capacity4.4 LReference

Coolant capacity5.5 LReference

Transmission

8-speed gearReference

TypegearReference

Gears8 forward and 2 reverseReference

Clutchdry discReference

Oil capacity27.9 LReference

Four gears, plus reverse, in two ranges. Tractor must be stopped, and clutch used, to shift gear or range.Reference

PTO & Hydraulics

PTO (claimed)16.4 kWReference

Typeopen centerReference

Pressure140.0 barReference

Pump flow11.7 lpmReference

Rear TypeIReference

Rear lift (at 24"/610mm)816 kgReference

Rear PTOliveReference

Clutchdry dual discReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2260Reference

Dimensions

Wheelbase185 cmReference

Weight1299 kgReference

Front tire5.00-15Reference

Rear tire11.2-28Reference

Ag front5.00-15Reference

Ag rear11.2-28Reference

Length320 cmReference

Width139 cmReference

Shipping weight1299 kgReference

Clearance (front axle)58 cmReference

Clearance (rear axle)66 cmReference

Front tread106 to 129 cmReference

Rear tread106 to 147 cmReference

900HC Serial Numbers

Location:Serial number plate on the rear of the 900HC, below the PTO shaft.Reference

19861001Reference

19871710Reference

19882127Reference

Final2276Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps25Reference

Battery CCA475Reference

Battery volts12Reference

Battery Group30HReference

John Deere 900HC Height

Hood148 cmReference

ROPS245 cmReference

Exhaust205 cmReference

Speeds

With 11.2x28 R1 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
