Tractor · 1974Unverified

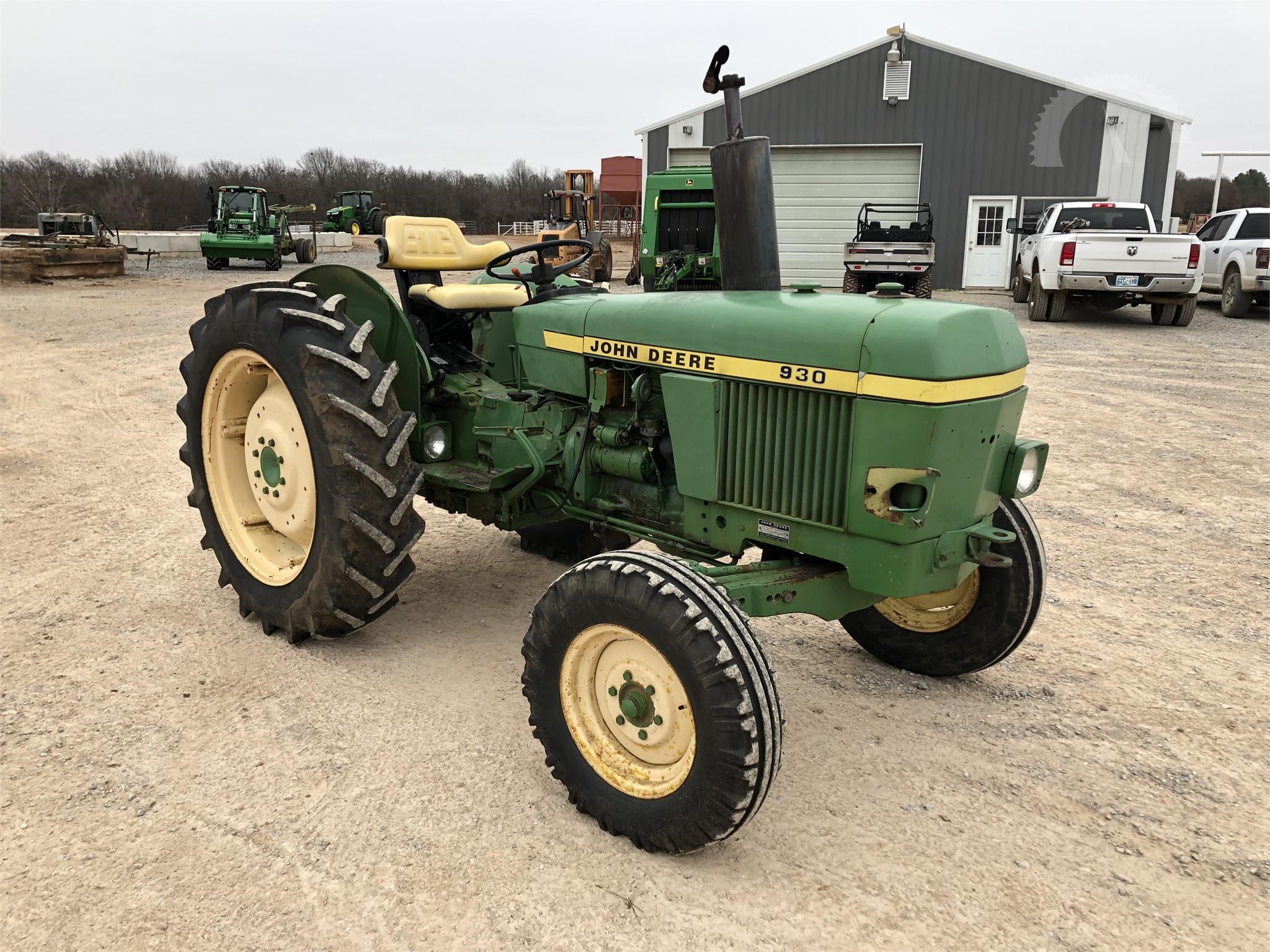

John Deere 930
John Deere 930 — Utility tractor · 43 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
43 hp
Weight
2180 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Mannheim, Baden-Württemberg, GermanyReference
Two-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical rearReference
Manual steeringReference
Wet disc brakesReference
Engine
John Deere 2.7L 3-cyl dieselReference
Engine (gross)32.1 kWReference
Engine (net)30.6 kWReference
John DeereReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke102 x 110 mmReference
Power (net)30.6 kWReference
Power (gross)32.1 kWReference
Air cleanerdryReference
Compression16.2:1Reference
Rated RPM2400Reference
Idle RPM650-2545Reference
Operating RPM1400-2400Reference
Torque138.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Oil capacity5.7 LReference
Coolant capacity10.4 LReference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 4 reverseReference
Clutchdry discReference
Oil capacity30.0 LReference
Four gears in two ranges, plus reverse range.Reference
PTO & Hydraulics
PTO (claimed)26.0 kWReference
Hydraulic system29.9 LReference
Typeopen centerReference
Capacity29.9 LReference
Pump flow23.8 lpmReference
Rear TypeIReference
Controlposition and draft controlReference
Rear lift1549 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Engine RPM540@2100Reference
Capacities
Fuel62.1 LReference
Dimensions
Wheelbase188 cmReference
Weight2180 kgReference
Front tire6.00-16Reference
Rear tire13.6/12-28Reference
Ag front6.00-16Reference
Ag rear13.6/12-28Reference
Length334 cmReference
Width167 cmReference
Height230 cmReference
Front tread125 to 187 cmReference
Rear tread135 to 185 cmReference
930 Serial Numbers
Location:Serial number plate on the right side of the Deere 930 tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps28Reference
Charging volts12Reference
Batteries2Reference
Battery volts12Reference
Battery AH55Reference
Speeds
With 13.6/12-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
