Tractor · 1997Unverified

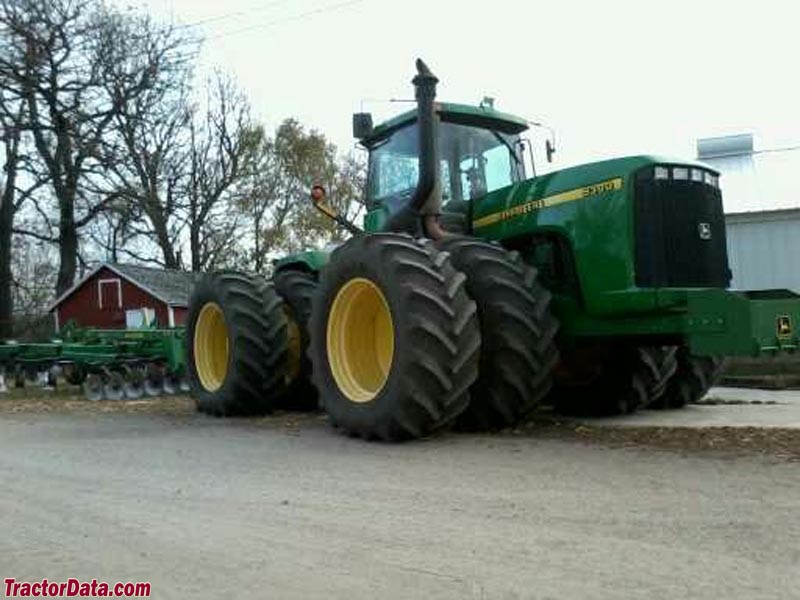

John Deere 9300
John Deere 9300 — Four-wheel Drive (4WD) tractor · 302 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
302 hp
Weight
14261 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Four-wheel Drive (4WD) tractorReference
Built in Waterloo, Iowa, USAReference
Four-wheel driveReference
Final drivesinboard planetaryReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Cab standard.Reference
Variants
9300wheeled tractorReference
9300TcrawlerReference
Engine
John Deere 12.5L 6-cyl dieselReference
Engine268.5 kWReference
John DeereReference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement12.5 LReference
Bore/Stroke127 x 165 mmReference
Power268.5 kWReference
Compression16:1Reference
Rated RPM2100Reference
Coolant capacity60.6 LReference
Oil capacity41.6 LReference
Transmission
12-speed partially synchronizedReference
24-speed partial power shiftReference
12-speed full power shiftReference
TransmissionJohn Deere SyncroReference
Typepartially synchronizedReference
Gears12 forward and 3 reverseReference
Oil capacity139.3 LReference
Oil capacity143.5 LReference
Oil capacity143.1 LReference
Oil capacity147.3 LReference
Oil capacity132.5 LReference
Three speeds (1-3 and reverse) in four ranges (A-D). Synchronized shifting between speeds using the clutch. Tractor must be stopped, and clutch used, to shift ranges. Reverse is not available in the highest (D) range.Reference
TransmissionJohn Deere PowrSyncReference
Typepartial power shiftReference
Gears24 forward and 6 reverseReference
Three speeds (1, 2, 3 and reverse) in four ranges (A-D) plus high-low power shift. Speeds and ranges may be shifted on the move, using the clutch. High-low power shift for each speed using lever.Reference
TransmissionJohn Deere PowerShiftReference
Typefull power shiftReference
Gears12 forward and 2 reverseReference
Oil capacity60.6 LReference
Oil capacity53.0 LReference
Oil capacity56.8 LReference
Oil capacity51.1 LReference
Oil capacity113.6 LReference
Oil capacity102.2 LReference
PTO & Hydraulics
PTO (claimed)225.2 kWReference
Hydraulic system98.4 LReference
Typeclosed center PFCReference
Capacity98.4 LReference
Pressure200.0 barReference
Valves3 to 5Reference
Pump flow132.5 lpmReference
Total flow166.5 lpmReference
Rear TypeIIIReference
Rear lift6291 kgReference
Rear PTOindependentReference
Rear PTO Type1000 (optional)Reference
Capacities
Fuel1022.0 LReference
Dimensions
Wheelbase350 cmReference
Weight14261 kgReference
Front tire620/70R42Reference
Rear tire620/70R42Reference
Ag front620/70R42Reference
Ag rear620/70R42Reference
Length695 cmReference
Width429 cmReference
Height (cab)349 cmReference
Shipping weight14261 kgReference
Ground clearance73 cmReference
Front axle100 by 3048 mmReference
Front axle109 by 3048 mmReference
Rear axle100 by 3048 mmReference
Rear axle109 by 3048 mmReference
9300 Serial Number Location
Serial number plate on the top-left of the tractor's hingeReference
9300 Serial Numbers
19971001Reference
199810001Reference
199920001Reference
200030001Reference
200140001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps140Reference
Batteries3Reference
Battery CCA925Reference
Battery volts12Reference
Speeds
With 620/70R42 tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
