Tractor · 2000Unverified

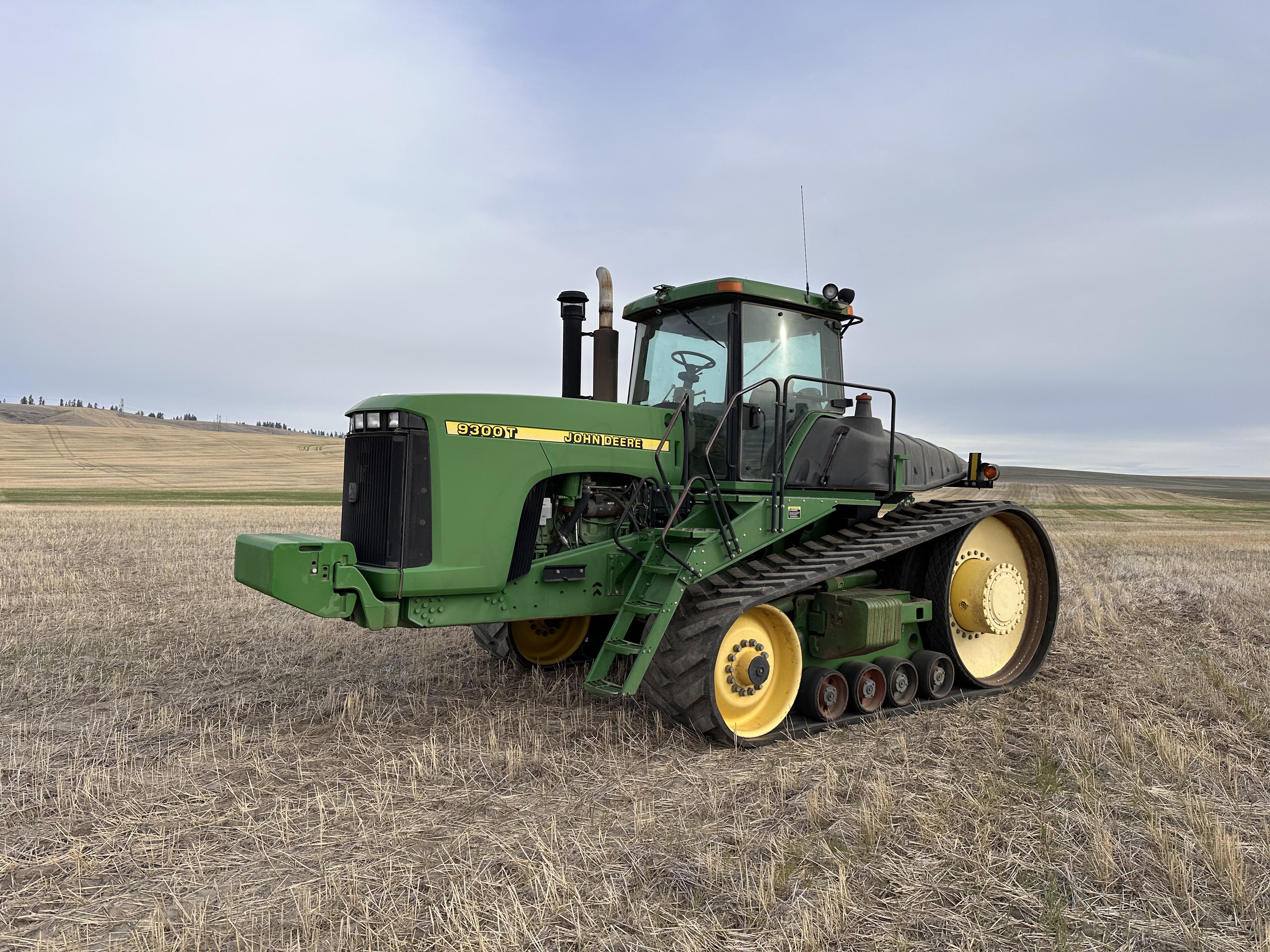

John Deere 9300T
John Deere 9300T — Agricultural Crawler tractor · 346 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
346 hp
Max power
257.6 kW
Weight
19092 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Agricultural Crawler tractorReference
Built in Waterloo, Iowa, USAReference
DrivecrawlerReference
Steeringelectro-hydraulicReference
Wet disc brakesReference
Variants
9300wheeled tractorReference
9300TcrawlerReference
Engine
John Deere 12.5L 6-cyl dieselReference
Drawbar (tested)227.4 kWReference
John DeereReference
turbo dieselReference
6-cylinderReference
liquid-cooled verticalReference
Displacement12.5 LReference
Bore/Stroke127 x 165 mmReference
Air cleanerdual paper elementsReference
Compression17:1Reference
Rated RPM2100Reference
Starter volts12Reference
Max power257.6 kWReference
Max power227.4 kWReference
Transmission
24-speedReference
Gears24 forward and 6 reverseReference
PTO & Hydraulics
PTO (tested)257.6 kWReference
Rear TypeIII,IVReference
Rear PTO Type1000Reference
Dimensions
Weight19092 kgReference
TracksReference
Test results
Diesel March 2001Link: Nebraska Tractor Test 1790 fileReference
PTO performanceReference
Fuel use72.3 l/hourReference
Drawbar performanceReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
