Tractor · 2002Unverified

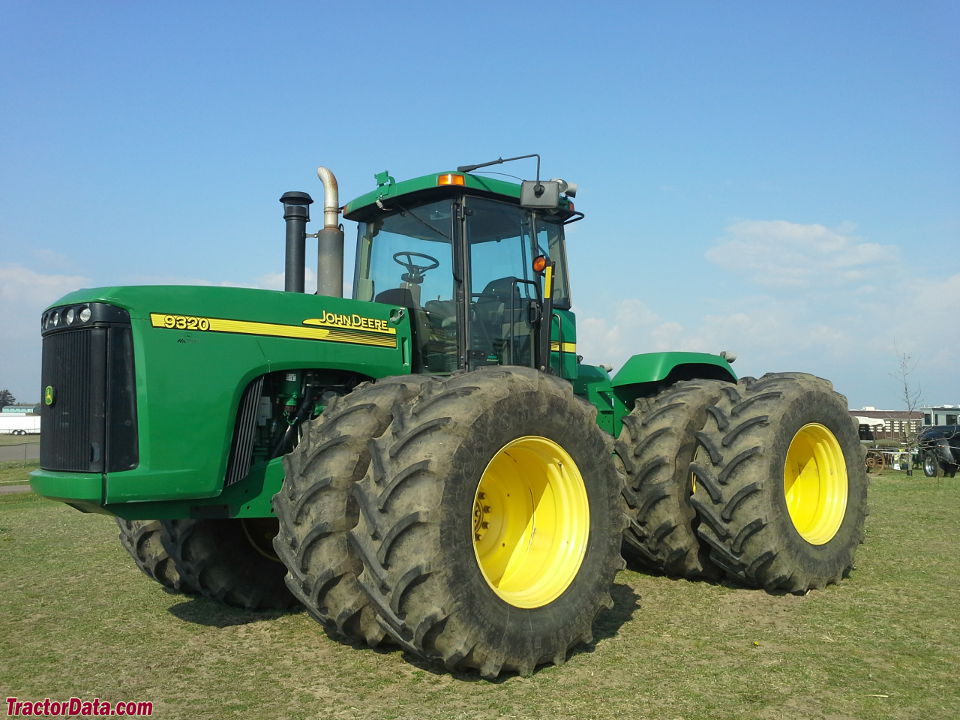

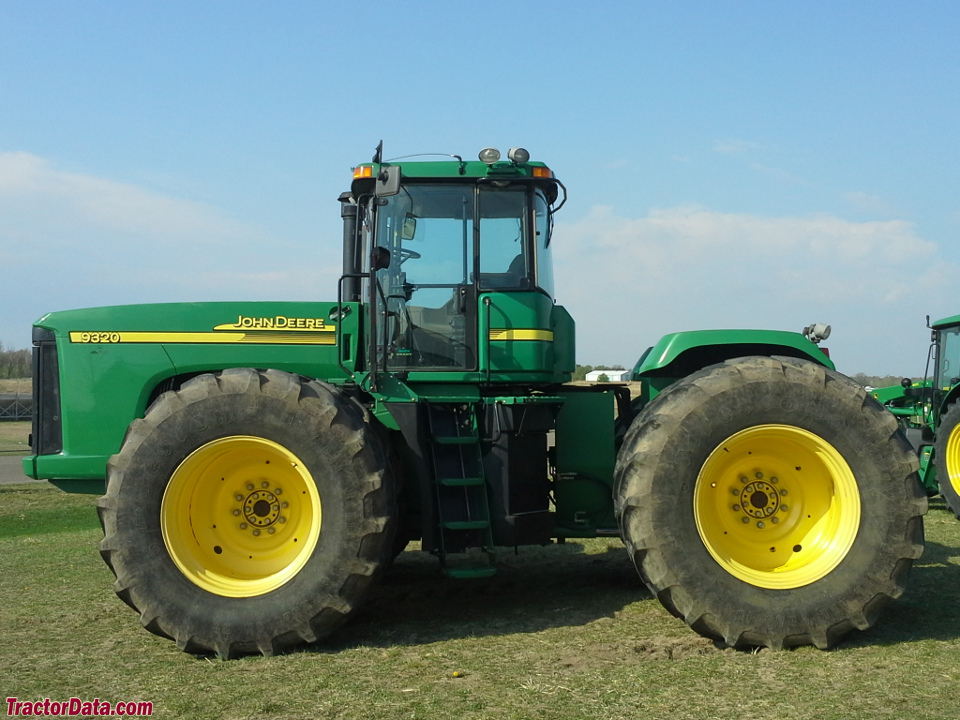

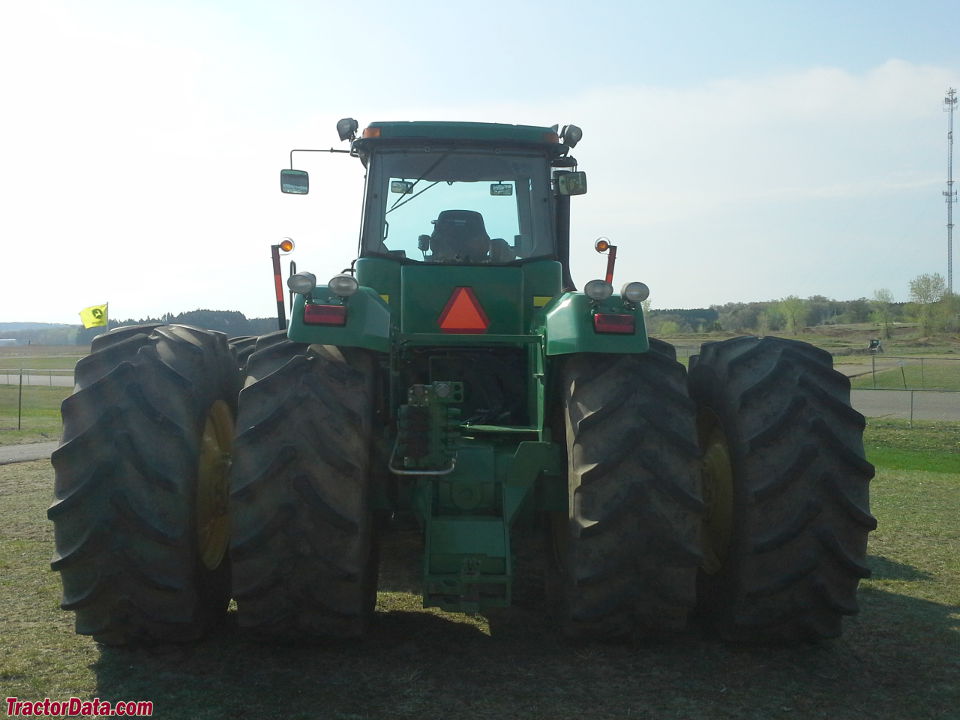

John Deere 9320
John Deere 9320 — Four-wheel Drive (4WD) tractor · 333 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
333 hp
Max power
281.5 kW
Weight
34330 to 36560 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Four-wheel Drive (4WD) tractorReference
Built in Waterloo, Iowa, USAReference
Four-wheel driveReference
Steeringhydrostatic articulatedReference
Hydraulic wet disc brakesReference
CommandView cab standard with air-conditioning.Reference
Variants
9320Tcrawler tractorReference
Engine
John Deere 12.5L 6-cyl dieselReference
Engine279.6 kWReference
Drawbar (tested)227.0 kWReference
John DeereReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement12.5 LReference
Bore/Stroke127 x 165 mmReference
Power279.6 kWReference
Air cleanerdryReference
Compression17:1Reference
Rated RPM2100Reference
Operating RPM1500-2100Reference
Starter volts12Reference
Coolant capacity60.6 LReference
Oil capacity41.6 LReference
Max power281.5 kWReference
Power at rated engine speed248.6 kWReference
Max power227.0 kWReference
Transmission
24-speed partial power shiftReference
18-speed full power shiftReference
TransmissionJohn Deere PowerSyncReference
Typepartial power shiftReference
Gears24 forward and 6 reverseReference
Oil capacity128.7 LReference
Oil capacity132.5 LReference
Four ranges (A-D) and three gears (1-3) with high-low power shift. Synchronized shifting between ranges A-B, B-C, and C-D. Gear shifts are synchronized between 1-R, 1-2, and 2-3. Reverse gear does not operate in D range.Reference
TransmissionJohn Deere PowershiftReference
Typefull power shiftReference
Gears18 forward and 6 reverseReference
PTO & Hydraulics
PTO (claimed)235.6 kWReference
PTO (tested)281.5 kWReference
Hydraulic system102.2 LReference
Hydraulic system106.0 LReference
Hydraulic system113.6 LReference
Hydraulic system117.3 LReference
Typeclosed center pressure/flow compensatedReference
Capacity102.2 LReference
Capacity106.0 LReference
Capacity113.6 LReference
Capacity117.3 LReference
Pressure200.0 barReference
Valves4 or 5Reference
Pump flow113.6 lpmReference
Total flow166.5 lpmReference
Total flow181.7 lpmReference
Total flow295.2 lpmReference
Rear TypeIIIReference
Rear TypeIV/IVNReference
Rear lift6291 kgReference
Rear lift6552 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Power at rated PTO speed272.1 kWReference
Capacities
Fuel1022.0 LReference
Dimensions
Wheelbase350 cmReference
Weight34330 to 36560 poundsReference
Front tire710/70R38Reference
Rear tire710/70R38Reference
Ag front710/70R38Reference
Ag rear710/70R38Reference
Length695 cmReference
Length734 cmReference
Width293 cmReference
Shipping weight15572 kgReference
Operating weight16583 kgReference
Clearance (front axle)73 cmReference
Clearance (drawbar)43 cmReference
9320 Serial Numbers
Location:On the top-left of rear hinge memberReference
20021001Reference
200310001Reference
200420001Reference
200530001Reference
200640001Reference
200750001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps140Reference
Batteries3Reference
Battery CCA925Reference
Battery volts12Reference
John Deere 9320 Height
Hood247 cmReference
Cab349 cmReference
Exhaust355 cmReference
Test results
Diesel 18-speed 4WDApril 9 - May 31, 2002Link: OCED Tractor Test 9320 fileReference
PTO performanceReference
Fuel use79.1 l/hourReference
Fuel use71.9 l/hourReference
Fuel use75.7 l/hourReference
Drawbar performanceReference
Gear 6 used for power test.Reference
Max pull17416 kgReference
Gear 1 used for pull test.Reference
Speeds
With 710/70R38 tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
