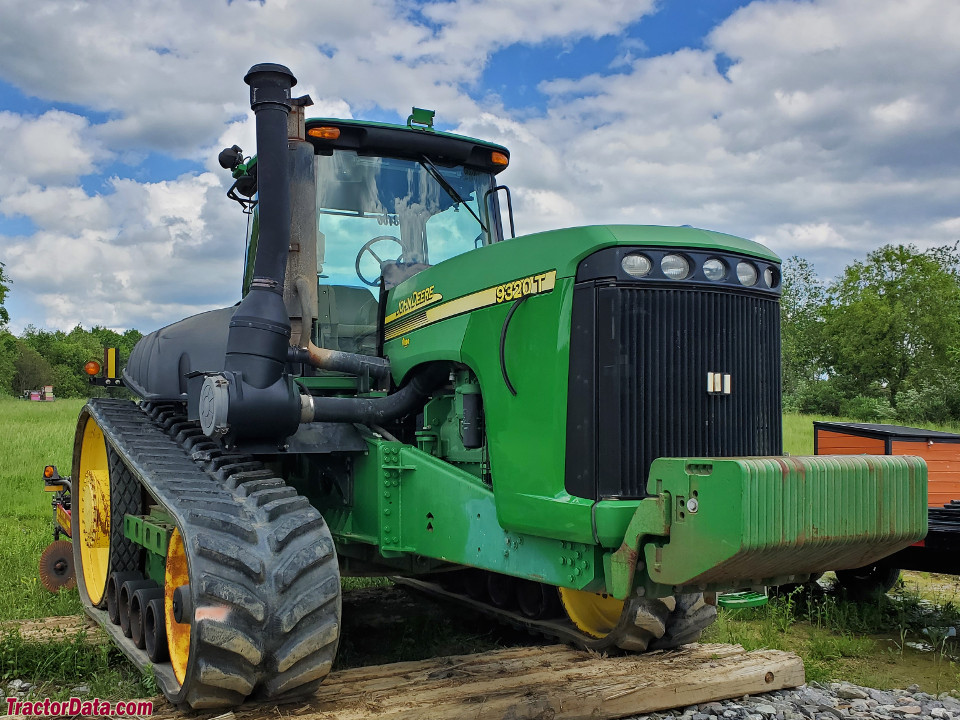

John Deere 9320T
John Deere 9320T — Agricultural Crawler tractor · 389 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
389 hp
Max power
290.2 kW
Weight
39000 to 42840 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Agricultural Crawler tractorReference
Built in Waterloo, Iowa, USAReference
DrivecrawlerReference
Steeringelectro-hydraulic powerReference
Hydraulic wet disc brakesReference
Cab standard.Reference
Variants
9320wheeled tractorReference
Engine
John Deere 12.5L 6-cyl dieselReference
Engine279.6 kWReference
Drawbar (tested)228.0 kWReference
John DeereReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement12.5 LReference
Bore/Stroke127 x 165 mmReference
EmissionsTier IIReference
Power279.6 kWReference
Compression17:1Reference
Rated RPM2100Reference
Starter volts12Reference
Coolant capacity60.6 LReference
Oil capacity41.6 LReference
Max power290.2 kWReference
Power at rated engine speed290.2 kWReference
Max power228.0 kWReference
Transmission
18-speed full power shiftReference
24-speed partial power shiftReference
TransmissionJohn Deere PowerShiftReference
Typefull power shiftReference
Gears18 forward and 6 reverseReference
Oil capacity227.1 LReference
Oil capacity230.9 LReference
TransmissionJohn Deere PowrSyncReference
Typepartial power shiftReference
Gears24 forward and 6 reverseReference
Oil capacity242.3 LReference
Oil capacity246.1 LReference
Four synchronized ranges (A-D) with three synchronized gears (1-3) and a high-low power shift.Reference
PTO & Hydraulics
PTO (claimed)225.2 kWReference
PTO (tested)290.2 kWReference
Hydraulic system102.2 LReference
Hydraulic system104.1 LReference
Typeclosed center pressure/flow compensatedReference
Capacity102.2 LReference
Capacity104.1 LReference
Pressure200.0 barReference
Valves4 or 5Reference
Pump flow113.6 lpmReference
Total flow166.5 lpmReference
Total flow181.7 lpmReference
Rear TypeIII, IV/IVNReference
Rear lift6291 kgReference
Rear lift6552 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Power at rated PTO speed267.7 kWReference
Capacities
Fuel1211.2 LReference
Max capacity22680 kgReference
Dimensions
Wheelbase281 cmReference
Weight39000 to 42840 poundsReference
30-inch tracksReference
Length601 cmReference
Length683 cmReference
Width358 cmReference
Width345 cmReference
Height (cab)345 cmReference
Height (exhaust)351 cmReference
Ground clearance40 cmReference
Ground clearance48 cmReference
Shipping17690 kgReference
Operating19432 kgReference
9320T Serial Number Location
Serial number plate on the left side of the tractor frame.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps140Reference
Batteries3Reference
Battery CCA925Reference
Battery volts12Reference
John Deere 9320T Tracks
Width76 cmReference
Length on ground281 cmReference
Area on ground4.3 m²Reference
Width91 cmReference
Area on ground5.2 m²Reference
Test results
Diesel 18-speed crawlerApril 5 - May 31, 2002Link: OCED Tractor Test 1804 fileReference
PTO performanceReference
Fuel use83.6 l/hourReference
Fuel use87.1 l/hourReference
Fuel use76.8 l/hourReference
Drawbar performanceReference
Fuel use74.6 l/hourReference
Gear 7 used for power test.Reference
Max pull18812 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
