Tractor · 2012Unverified

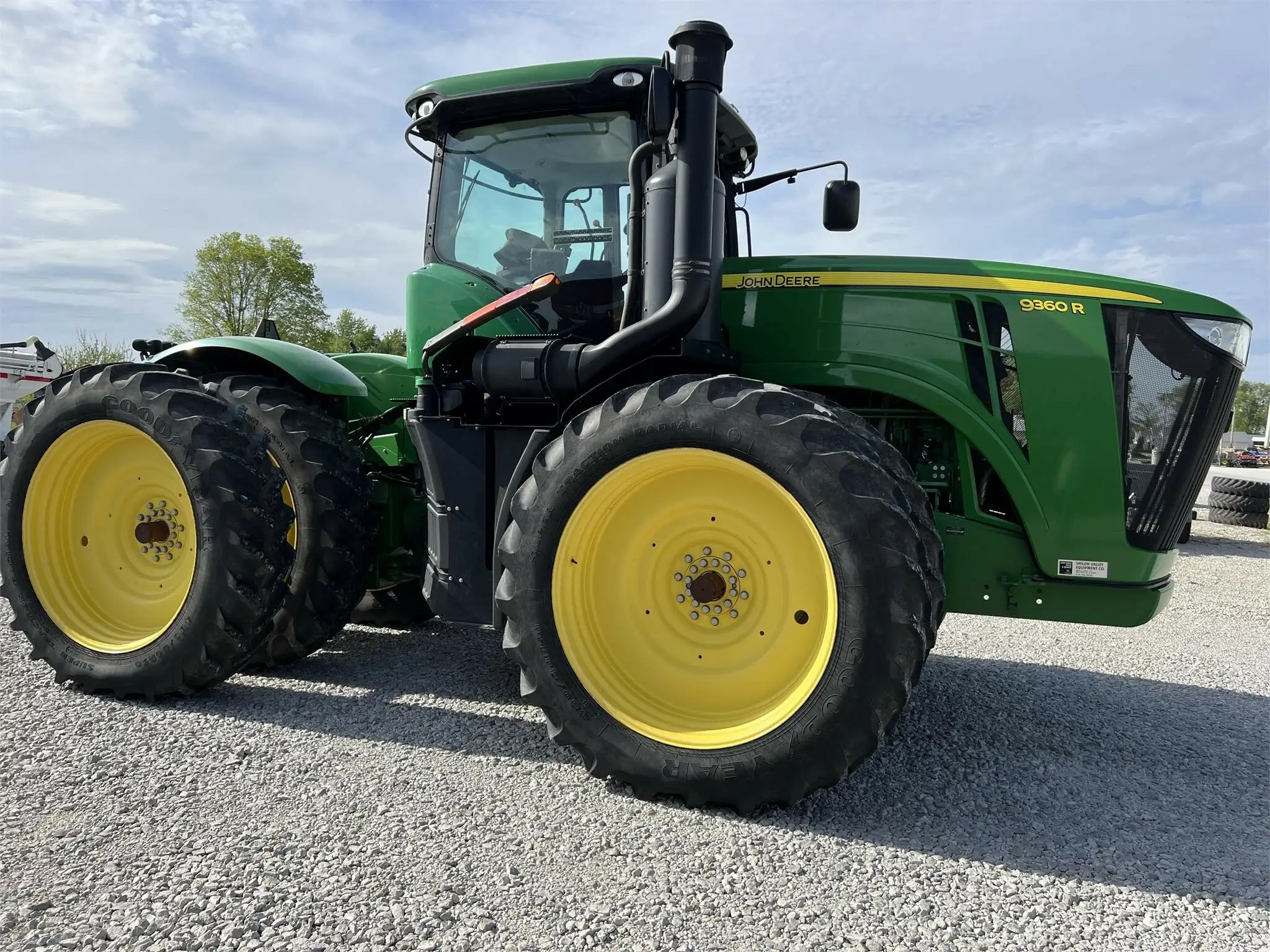

John Deere 9360R
John Deere 9360R — 9R/RT Series · 360 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
360 hp
Max power
258.1 kW
Weight
34420 to 37705 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Four-wheel Drive (4WD) tractorReference
Built in Waterloo, Iowa, USAReference
Original price was $280,427 in 2014Reference
Four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockfully-locking electro-hydraulicReference
Steeringhydraulic powerReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulic optionalReference
CommandView II cab standard with air-conditioning.Reference
Engine
John Deere 9.0L 6-cyl dieselReference
Fuel tank1324.8 LReference
Engine (gross)268.5 kWReference
Engine (max)295.3 kWReference
Drawbar (tested)208.5 kWReference
John Deere PowerTech PSXReference
turbocharged dieselReference
6-cylinder 24-valveReference
liquid-cooled inlineReference
Displacement9.0 LReference
Bore/Stroke118 x 136 mmReference
EmissionsTier 4AReference
Emission controlexhaust gas recirculation (EGR)Reference
Rated Power (gross)268.5 kWReference
Maximum Power (gross)295.3 kWReference
Fuel systemelectronic high-pressure common railReference
Compression16:1Reference
Rated RPM2100Reference
Starter volts12Reference
Max power258.1 kWReference
Power at rated engine speed230.6 kWReference
Max power208.5 kWReference
Transmission
24-speed partial power shiftReference
18-speed full power shiftReference
TransmissionJohn Deere PowrSyncReference
Typepartial power shiftReference
Gears24 forward and 6 reverseReference
Clutchhydraulic wet discReference
Three gears (1-3) in four ranges (A-D) with high-low power shift. Synchronized shifting between gears and ranges.Reference
TransmissionJohn Deere PowerShiftReference
Typefull power shiftReference
Gears18 forward and 6 reverseReference
PTO & Hydraulics
PTO (claimed)214.0 kWReference
PTO (tested)258.1 kWReference
Typeclosed center pressure flow compensatedReference
Pressure200.0 barReference
Valves4 to 6Reference
Pump flow166.5 lpmReference
Pump flow181.7 lpmReference
Pump flow295.2 lpmReference
SCV flow140.0 lpmReference
SCV flow170.3 lpmReference
Rear Type4N/3Reference
Rear Type4N/4Reference
Controlelectronic draft sensingReference
Rear lift6940 kgReference
Rear lift9072 kgReference
DrawbarCategory 4 standard with optional heavy-duty support . Optional Category 5 with heavy-duty support rated at 5,440 kg. (2,470 kg)Reference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
With hitch Length749 cmReference
Power at rated PTO speed256.6 kWReference
Dimensions
Wheelbase350 cmReference
Weight34420 to 37705 poundsReference
Front tire620/70R42Reference
Rear tire620/70R42Reference
Ag front620/70R42Reference
Ag rear620/70R42Reference
Length716 cmReference
Width304 cmReference
Front axle109 by 3048 mmReference
Front axle119 by 3048 mmReference
Rear axle109 by 3048 mmReference
Rear axle119 by 3048 mmReference
Shipping15612 kgReference
Operating17102 kgReference
9360R Serial Number Location
Serial number plate on the front-right of the tractor frame, ahead of the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Charging volts12Reference
Batteries3Reference
Battery CCA925Reference
Battery volts12Reference
Capacities
Max capacity17487 kgReference
John Deere 9360R Height
Hood269 cmReference
Cab363 cmReference
Cab378 cmReference
Exhaust444 cmReference
Test results
Diesel 18-speed 4WDMay 22 - June 4, 2012Link: OCED Tractor Test 2030 fileReference
PTO performanceReference
Fuel use72.7 l/hourReference
Fuel use66.2 l/hourReference
Fuel use72.3 l/hourReference
Drawbar performanceReference
Fuel use67.4 l/hourReference
Gear 7 used for power test.Reference
Max pull16364 kgReference
Gear 1 used for pull test.Reference
Speeds
With Group 47 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
