Tractor · 2015Unverified

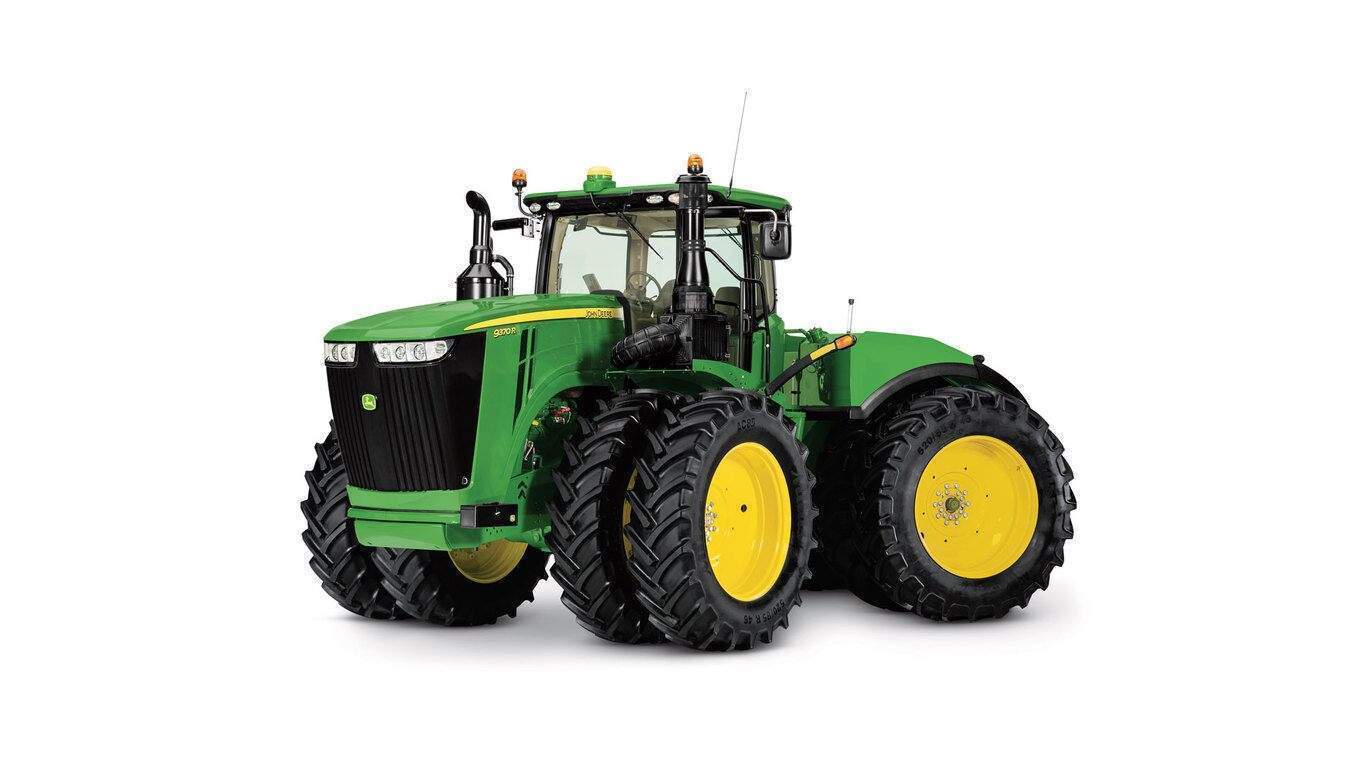

John Deere 9370R
John Deere 9370R — 9R Series · 370 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
370 hp
Weight
17781 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Four-wheel Drive (4WD) tractorReference
Built in Waterloo, Iowa, USAReference
Four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Articulated power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Command View Cab III standard with air-conditioning. AutoTrac ready; ISOBUS 11783; JDLink readyReference
Engine
John Deere 9.0L 6-cyl dieselReference
Engine (gross)275.9 kWReference
Engine (max)303.5 kWReference
John Deere PSSReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement9.0 LReference
Bore/Stroke118 x 136 mmReference
EmissionsTier IVReference
Rated Power (gross)275.9 kWReference
Maximum Power (gross)303.5 kWReference
Fuel systemelectronic high-pressure common railReference
Compression16:1Reference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Oil capacity34.0 LReference
Coolant capacity42.0 LReference
Transmission
18-speed full power shiftReference
Transmissione18 PowerShiftReference
Typefull power shiftReference
Gears18 forward and 6 reverseReference
Oil capacity276.0 LReference
Oil capacity284.0 LReference
PTO & Hydraulics
PTO (claimed)249.8 kWReference
Hydraulic system276.3 LReference
Hydraulic system283.9 LReference
Typeclosed-center pressure/flow compensatedReference
Capacity276.3 LReference
Capacity283.9 LReference
Pressure200.0 barReference
Rear valves4 to 8Reference
Pump flow219.5 lpmReference
Pump flow435.3 lpmReference
SCV flow132.5 lpmReference
SCV flow159.0 lpmReference
Rear TypeIV/IVNReference
Rear TypeIVN/IIIReference
Controldraft sensingReference
Rear lift6804 kgReference
Rear lift9072 kgReference
DrawbarCat. 4Reference
DrawbarCat. 4 HDReference
DrawbarCat. 5 HDReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type1000 (1.75)Reference
Capacities
Fuel1173.4 LReference
Exhaust fluid (DEF)83.3 LReference
Dimensions
Wheelbase380 cmReference
Weight17781 kgReference
Length798 cmReference
Width447 cmReference
Clearance (drawbar)38 cmReference
Front axle109 by 3048 mmReference
Front axle119 by 3048 mmReference
Rear axle109 by 3048 mmReference
Rear axle119 by 3048 mmReference
Shipping17781 kgReference
Ballasted22090 kgReference
Max Drawbar2472 kgReference
Max Drawbar4989 kgReference
Max Drawbar5443 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Charging amps240Reference
Charging volts12Reference
Batteries3Reference
Battery CCA925Reference
Battery volts12Reference
John Deere 9370R Height
Hood274 cmReference
Cab368 cmReference
Exhaust398 cmReference
Speeds
With group 47 (710/70R38) tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
