Tractor · 1997Unverified

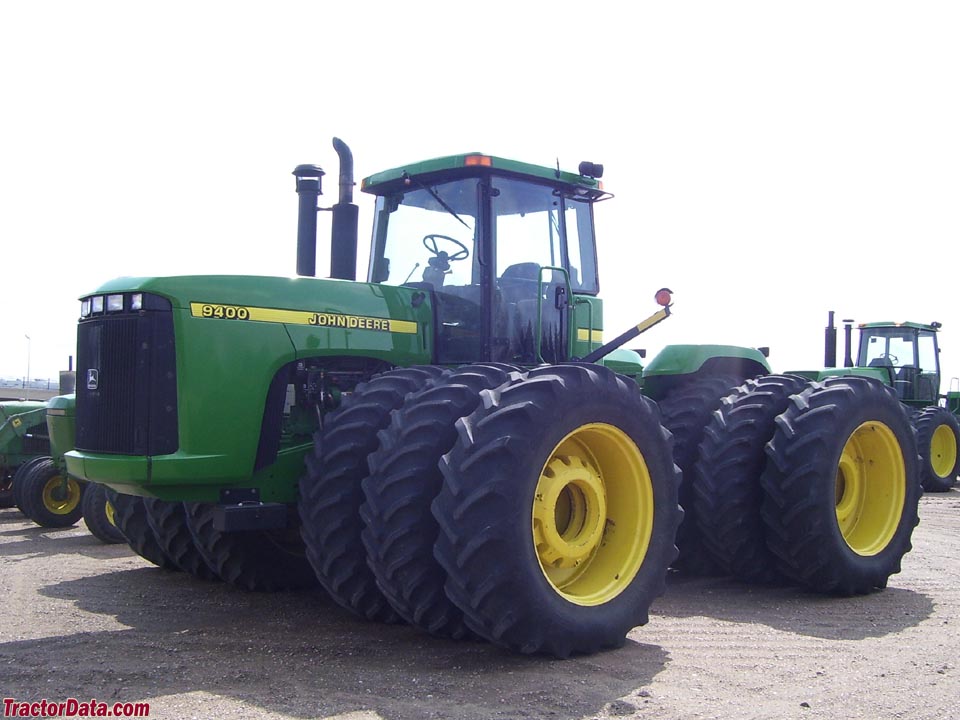

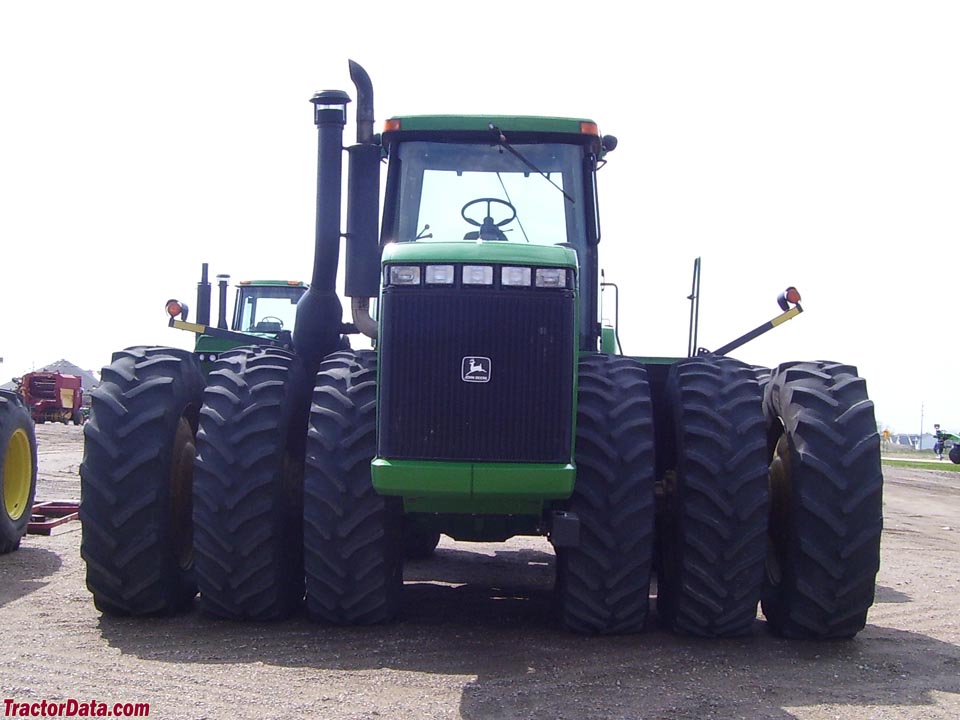

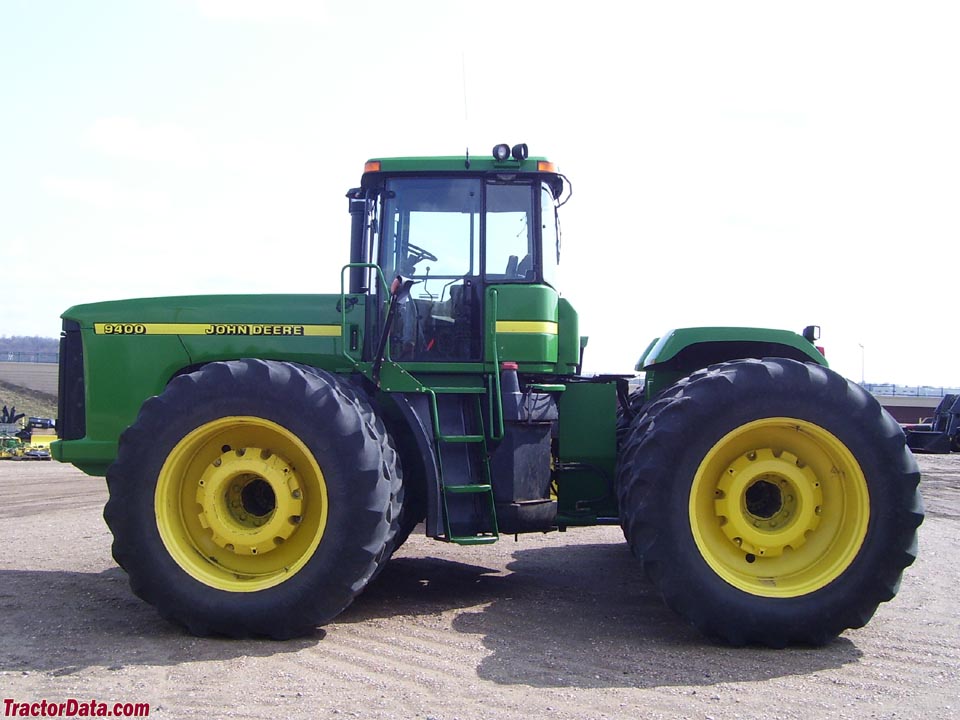

John Deere 9400
John Deere 9400 — Four-wheel Drive (4WD) tractor · 312 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
312 hp
Max power
257.3 kW
Weight
33770 to 37410 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Four-wheel Drive (4WD) tractorReference
Built in Waterloo, Iowa, USAReference
Original price was $121,000 in 2001Reference
Four-wheel driveReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Cab standard.Reference
Variants
9400wheeled tractorReference
9400TcrawlerReference
Engine
John Deere 12.5L 6-cyl dieselReference
Engine316.9 kWReference
Drawbar (tested)257.3 kWReference
John DeereReference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement12.5 LReference
Bore/Stroke127 x 165 mmReference
Power316.9 kWReference
Compression16:1Reference
Rated RPM2100Reference
Coolant capacity60.6 LReference
Oil capacity41.6 LReference
Power at rated engine speed232.8 kWReference
Max power257.3 kWReference
Transmission
12-speed partially synchronizedReference
24-speed partial power shiftReference
12-speed full power shiftReference
TransmissionJohn Deere SyncroReference
Typepartially synchronizedReference
Gears12 forward and 3 reverseReference
Oil capacity139.3 LReference
Oil capacity143.5 LReference
Oil capacity143.1 LReference
Oil capacity147.3 LReference
Oil capacity132.5 LReference
Three speeds (1-3 and reverse) in four ranges (A-D). Synchronized shifting between speeds using the clutch. Tractor must be stopped, and clutch used, to shift ranges. Reverse is not available in the highest (D) range.Reference
TransmissionJohn Deere PowrSyncReference
Typepartial power shiftReference
Gears24 forward and 6 reverseReference
Three speeds (1, 2, 3 and reverse) in four ranges (A-D) plus high-low power shift. Speeds and ranges may be shifted on the move, using the clutch. High-low power shift for each speed using lever.Reference
TransmissionJohn Deere PowerShiftReference
Typefull power shiftReference
Gears12 forward and 2 reverseReference
Oil capacity60.6 LReference
Oil capacity53.0 LReference
Oil capacity56.8 LReference
Oil capacity51.1 LReference
Oil capacity113.6 LReference
Oil capacity102.2 LReference
PTO & Hydraulics
PTO (claimed)225.2 kWReference
PTO (tested)232.8 kWReference
Hydraulic system98.4 LReference
Typeclosed center PFCReference
Capacity98.4 LReference
Pressure200.0 barReference
Valves2 to 5Reference
Pump flow132.5 lpmReference
Total flow166.5 lpmReference
Rear TypeIIIReference
Rear TypeIV/IVNReference
Rear lift6291 kgReference
Rear lift6552 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Power at rated PTO speed256.1 kWReference
Capacities
Fuel969.0 LReference
Dimensions
Wheelbase350 cmReference
Weight33770 to 37410 poundsReference
Front tire710/70R38Reference
Rear tire710/70R38Reference
Ag front710/70R38Reference
Ag rear710/70R38Reference
Length695 cmReference
Width436 cmReference
Height (cab)349 cmReference
Ground clearance73 cmReference
Front axle109 by 3048 mmReference
Rear axle109 by 3048 mmReference
Shipping15318 kgReference
Operating16969 kgReference
Ballasted18804 kgReference
9400 Serial Number Location
Serial number plate on the top-left of the tractor's hingeReference
9400 Serial Numbers
19971001Reference
199810001Reference
199920001Reference
200030001Reference
200140001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps140Reference
Batteries3Reference
Battery CCA925Reference
Battery volts12Reference
Test results
Diesel 24-speed 4WDMay 2 - June 18, 1997Link: OCED Tractor Test 1733 fileReference
PTO performanceReference
Fuel use65.1 l/hourReference
Fuel use68.1 l/hourReference
Drawbar performanceReference
Fuel use76.8 l/hourReference
Max pull17422 kgReference
Speeds
With 710/70R38 tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
