Tractor · 2012Unverified

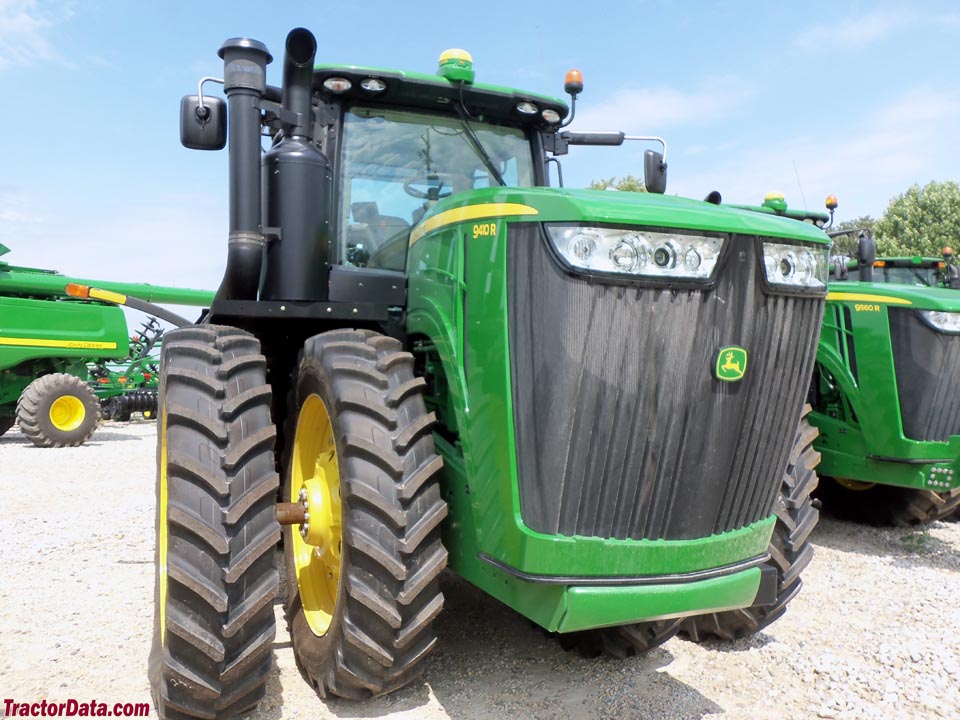

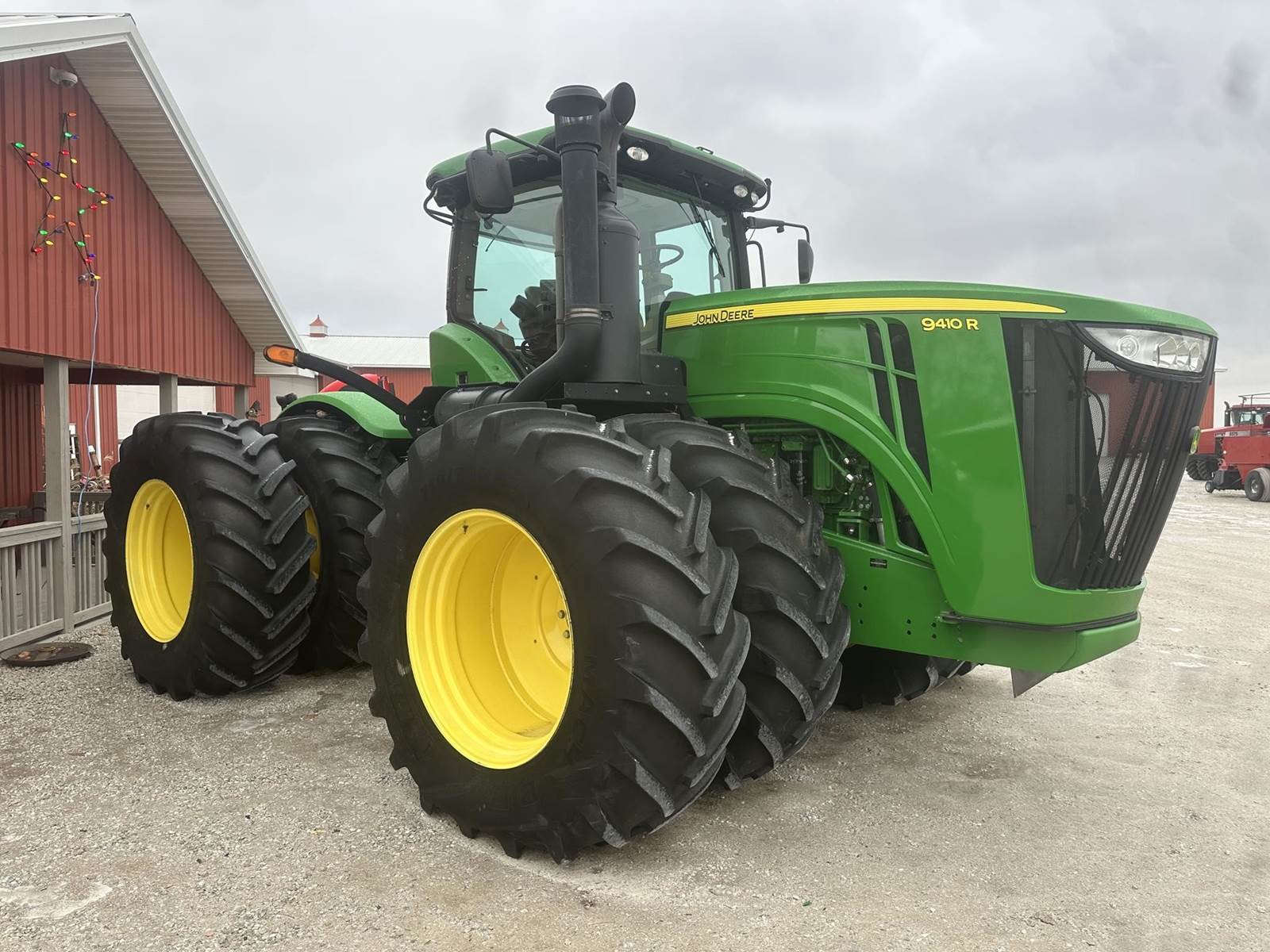

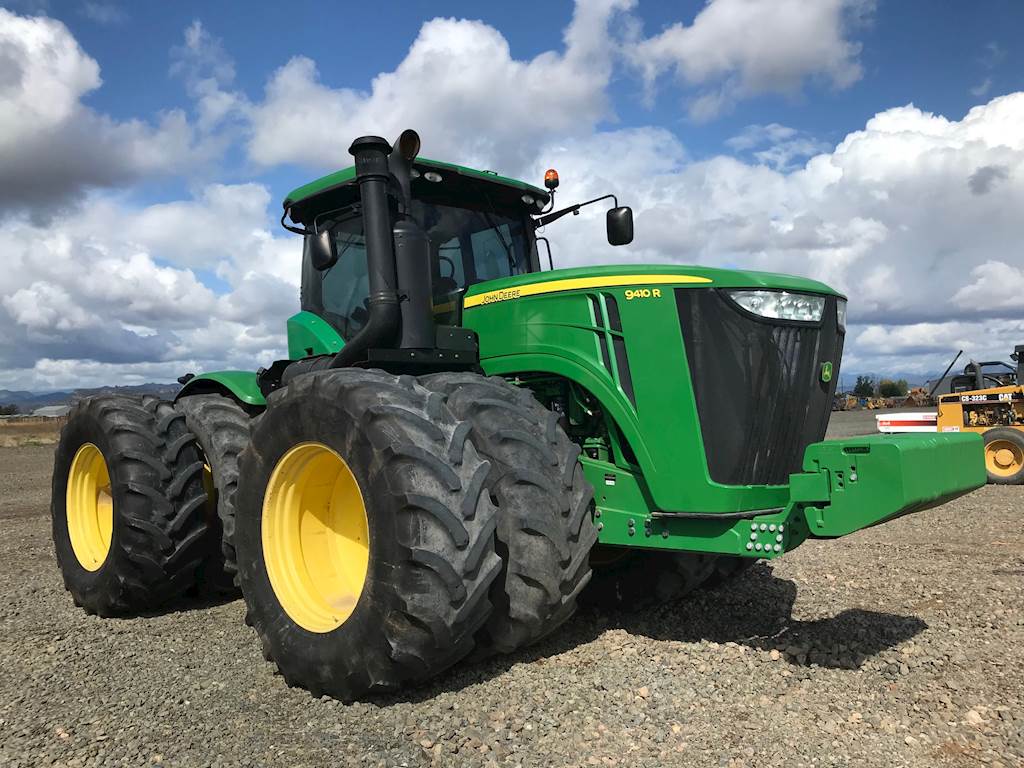

John Deere 9410R
John Deere 9410R — 9R/RT Series · 410 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
410 hp
Max power
281.8 kW
Weight
38060 to 38785 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Four-wheel Drive (4WD) tractorReference
Built in Waterloo, Iowa, USAReference
Original price was $310,609 in 2014Reference
Four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockfully-locking electro-hydraulicReference
Steeringhydraulic powerReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulic optionalReference
CommandView II cab standard with air-conditioning.Reference
Engine
John Deere 13.5L 6-cyl dieselReference
Fuel tank1324.8 LReference
Engine (gross)305.7 kWReference
Engine (max)336.3 kWReference
Drawbar (tested)240.0 kWReference
John Deere PowerTech PSXReference
turbocharged dieselReference
6-cylinder 24-valveReference
liquid-cooled inlineReference
Displacement13.5 LReference
Bore/Stroke132 x 165 mmReference
EmissionsTier 4AReference
Emission controlexhaust gas recirculation (EGR)Reference
Rated Power (gross)305.7 kWReference
Maximum Power (gross)336.3 kWReference
Fuel systemelectronic unit injectorsReference
Compression16:1Reference
Rated RPM2100Reference
Starter volts12Reference
Max power281.8 kWReference
Power at rated engine speed245.1 kWReference
Max power240.0 kWReference
Transmission
24-speed partial power shiftReference
18-speed full power shiftReference
TransmissionJohn Deere PowrSyncReference
Typepartial power shiftReference
Gears24 forward and 6 reverseReference
Clutchhydraulic wet discReference
Three gears (1-3) in four ranges (A-D) with high-low power shift. Synchronized shifting between gears and ranges.Reference
TransmissionJohn Deere PowerShiftReference
Typefull power shiftReference
Gears18 forward and 6 reverseReference
PTO & Hydraulics
PTO (claimed)237.9 kWReference
PTO (tested)281.8 kWReference
Typeclosed center pressure flow compensatedReference
Pressure200.0 barReference
Valves4 to 6Reference
Pump flow166.5 lpmReference
Pump flow181.7 lpmReference
Pump flow295.2 lpmReference
SCV flow140.0 lpmReference
SCV flow170.3 lpmReference
Rear Type4N/3Reference
Rear Type4N/4Reference
Controlelectronic draft sensingReference
Rear lift6940 kgReference
Rear lift9072 kgReference
DrawbarCategory 4 standard with optional heavy-duty support . Optional Category 5 with heavy-duty support rated at 5,440 kg. (2,470 kg)Reference
Rear PTOindependent (optional)Reference
Rear PTO Type1000 (1.75)Reference
With hitch Length749 cmReference
Power at rated PTO speed274.7 kWReference
Dimensions
Wheelbase350 cmReference
Weight38060 to 38785 poundsReference
Front tire710/70R38Reference
Rear tire710/70R38Reference
Ag front710/70R38Reference
Ag rear710/70R38Reference
Length716 cmReference
Width304 cmReference
Front axle109 by 3048 mmReference
Front axle119 by 3048 mmReference
Rear axle109 by 3048 mmReference
Rear axle119 by 3048 mmReference
Shipping17264 kgReference
Operating17592 kgReference
9410R Serial Number Location
Serial number plate on the front-right of the tractor frame, ahead of the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Charging volts12Reference
Batteries3Reference
Battery CCA925Reference
Battery volts12Reference
Capacities
Max capacity20218 kgReference
John Deere 9410R Height
Hood269 cmReference
Cab363 cmReference
Cab378 cmReference
Exhaust444 cmReference
Test results
Diesel 18-speed 4WDSeptember 17 - October 8, 2012Link: OCED Tractor Test 2039 fileReference
PTO performanceReference
Fuel use80.2 l/hourReference
Fuel use79.5 l/hourReference
Fuel use81.4 l/hourReference
Drawbar performanceReference
Fuel use82.5 l/hourReference
Gear 7 used for power test.Reference
Max pull16526 kgReference
Gear 2 used for pull test.Reference
Speeds
With Group 47 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
