Tractor · 2007Unverified

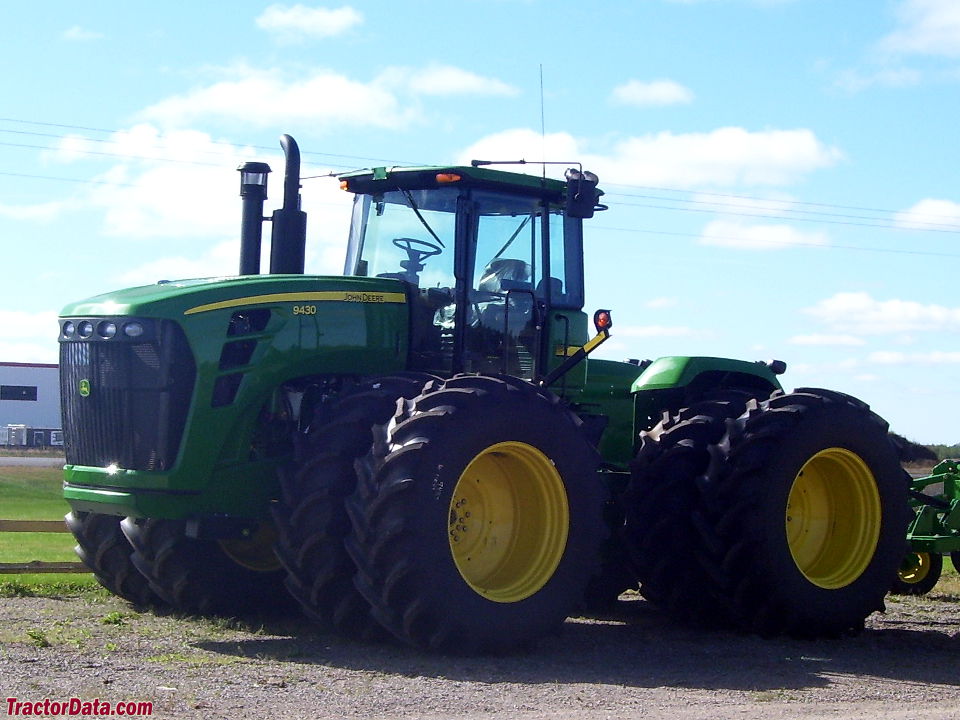

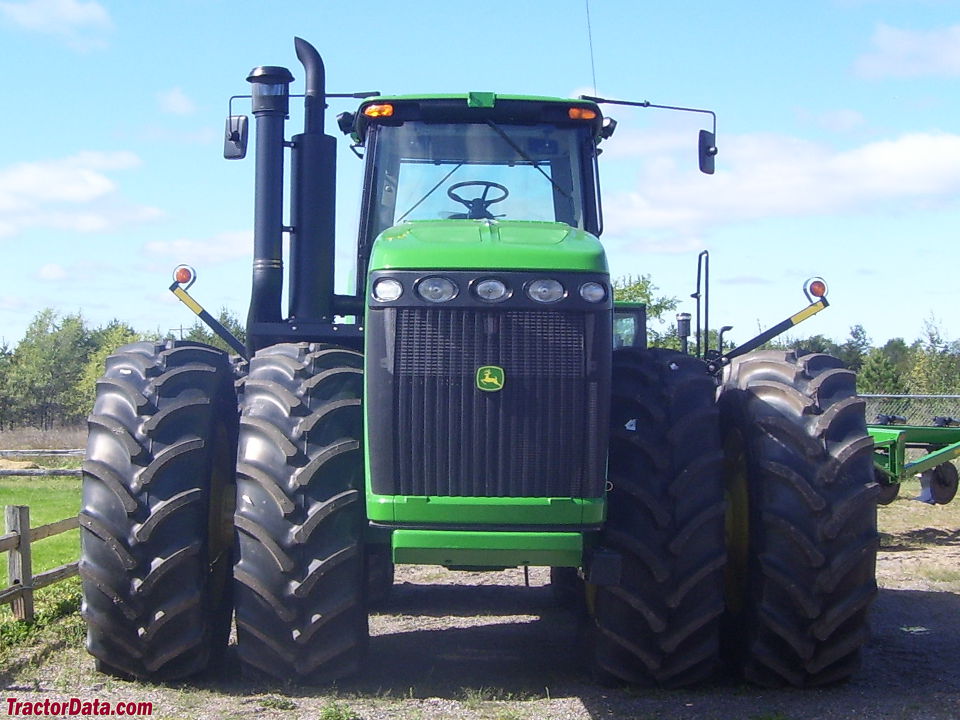

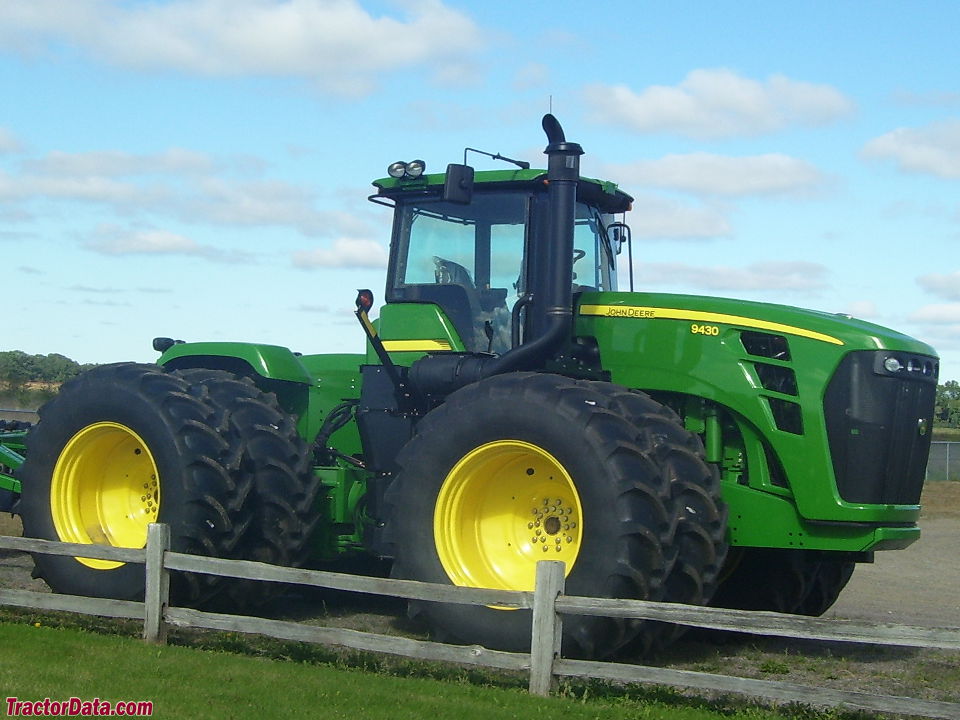

John Deere 9430
John Deere 9430 — Four-wheel Drive (4WD) tractor · 338 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
338 hp
Max power
286.1 kW
Weight
36359 to 38600 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Four-wheel Drive (4WD) tractorReference
Built in Waterloo, Iowa, USAReference
Four-wheel driveReference
Differential lockhydraulic differential lock optionalReference
Steeringhydrostatic powerReference
Hydraulic wet discs brakesReference
Trailer brakeshydraulic optionalReference
CommandView Cab standard with air-conditioning. Optional automatic climate control and leather trim.Reference
Variants
9630wheeledReference
9430TcrawlerReference
Engine
John Deere 13.5L 6-cyl dieselReference
Engine316.9 kWReference
Drawbar (tested)255.8 kWReference
John DeereReference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement13.5 LReference
Bore/Stroke132 x 165 mmReference
EmissionsTier IIIReference
Power316.9 kWReference
Air cleaneraspirator and dual paper elemntsReference
Compression16.0:1Reference
Rated RPM2100Reference
Starter volts12Reference
Coolant capacity66.2 LReference
Oil capacity41.6 LReference
Max power286.1 kWReference
Power at rated engine speed252.0 kWReference
Max power255.8 kWReference
Transmission
24-speed partial power shiftReference
18-speed full power shiftReference
TransmissionJohn Deere PowrSyncReference
Typepartial power shiftReference
Gears24 forward and 6 reverseReference
Clutchhydraulic wet discReference
Three gears (1-3) in four ranges (A-D) with high-low power shift. Gears and range shifts are synchronized using the clutch.Reference
TransmissionJohn Deere PowerShiftReference
Typefull power shiftReference
Gears18 forward and 6 reverseReference
Clutchelectronic wet discReference
PTO & Hydraulics
PTO (claimed)238.6 kWReference
PTO (tested)286.1 kWReference
Hydraulic system102.2 LReference
Hydraulic system106.0 LReference
Hydraulic system75.7 LReference
Hydraulic system117.3 LReference
Typeclosed-center pressure and flow compensatingReference
Capacity102.2 LReference
Capacity106.0 LReference
Capacity75.7 LReference
Capacity117.3 LReference
Pressure200.0 barReference
Valves4 to 6Reference
SCV flow113.6 lpmReference
PowrSync Total flow166.5 lpmReference
PowerShift Total flow181.7 lpmReference
Hi-Flow Total flow295.2 lpmReference
Rear Type4N/3Reference
Rear Type4N/4Reference
Rear lift (at 24"/610mm)6940 kgReference
DrawbarCatergory 4 standard with secondary chain support. Optional reinforcement up to 11,000 pounds. Optional 12,000 pounds Catergory 5 drawbar, not available with 3-point hitch or PTO.Reference
Rear PTOindependent (optional)Reference
Clutchelectro-hydraulic wet discReference
Rear PTO Type1000 (1.75)Reference
Power at rated PTO speed282.3 kWReference
Capacities
Fuel1324.8 LReference
Dimensions
Weight36359 to 38600 poundsReference
Length685 cmReference
Length723 cmReference
Width301 cmReference
Shipping weight16492 kgReference
Operating weight17508 kgReference
Hinge pin Ground clearance52 cmReference
Clearance (rear axle)78 cmReference
Rear axle110 by 3048 mmReference
9430 Serial Number Location
Rear-left of tractor hinge frame on early models. Right side of tractor frame, ahead of front axle, on late models.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Batteries2Reference
Battery CCA950Reference
Battery volts12Reference
John Deere 9430 Height
Hood271 cmReference
Cab360 cmReference
Exhaust396 cmReference
Test results
Diesel 18-speed 4WDOctober 10 - November 5, 2008Link: OCED Tractor Test 1942 fileReference
PTO performanceReference
Fuel use84.0 l/hourReference
Fuel use76.5 l/hourReference
Fuel use83.3 l/hourReference
Drawbar performanceReference
Gear 8 used for power test.Reference
Max pull20022 kgReference
Gear 1 used for pull test.Reference
Speeds
With 620/70R42 tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
