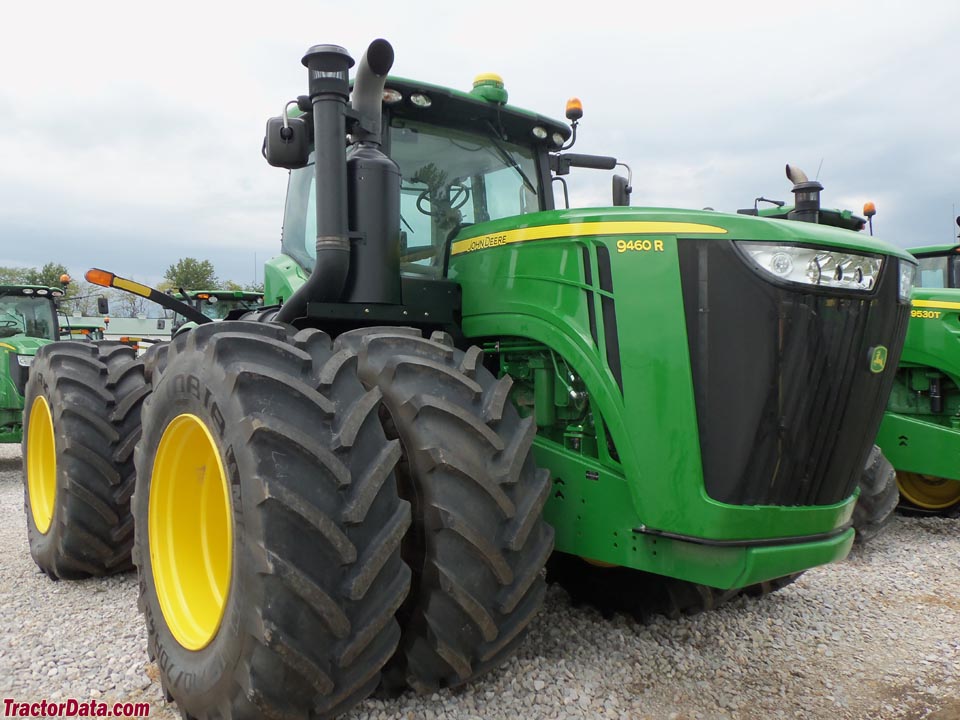

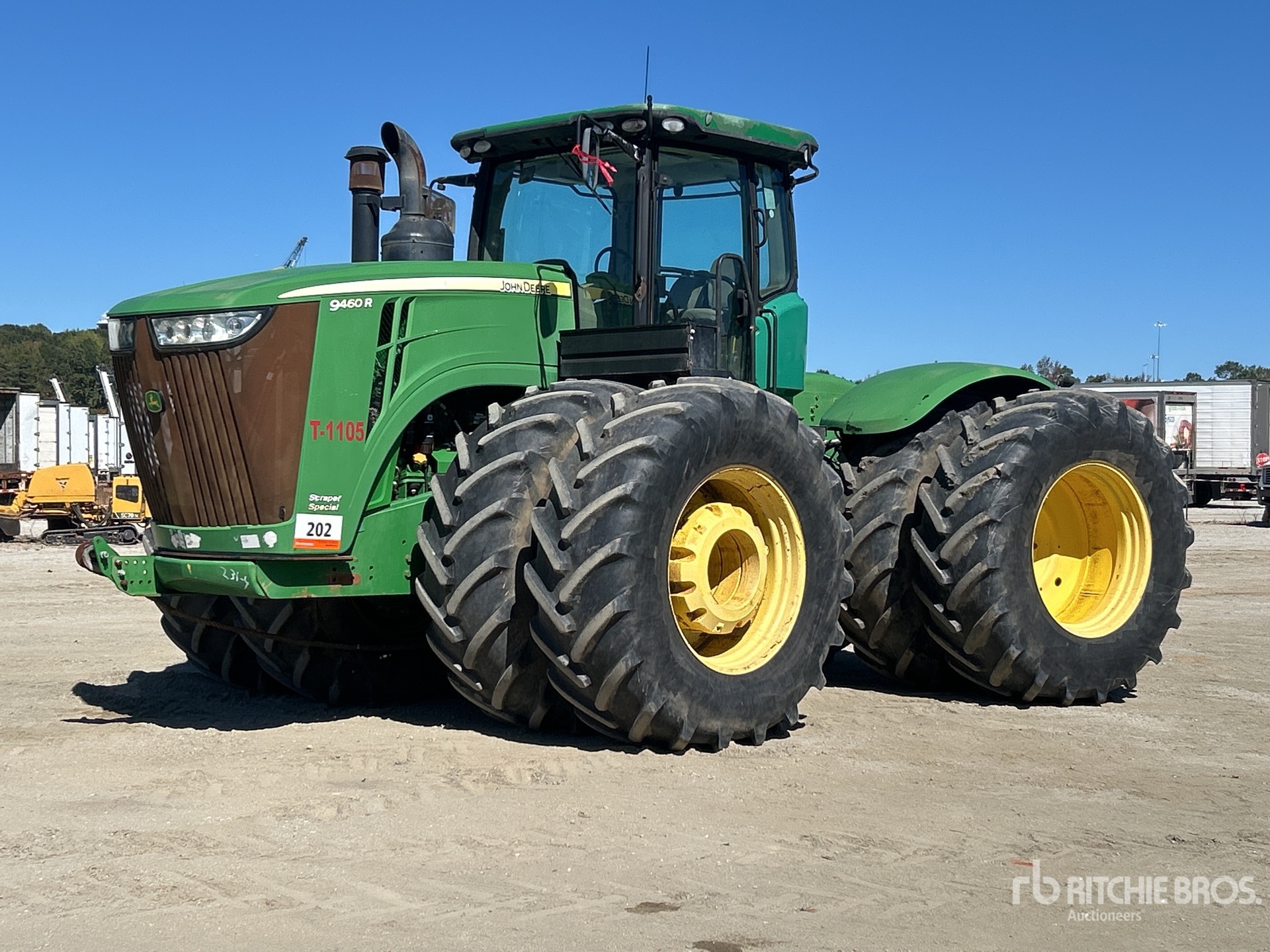

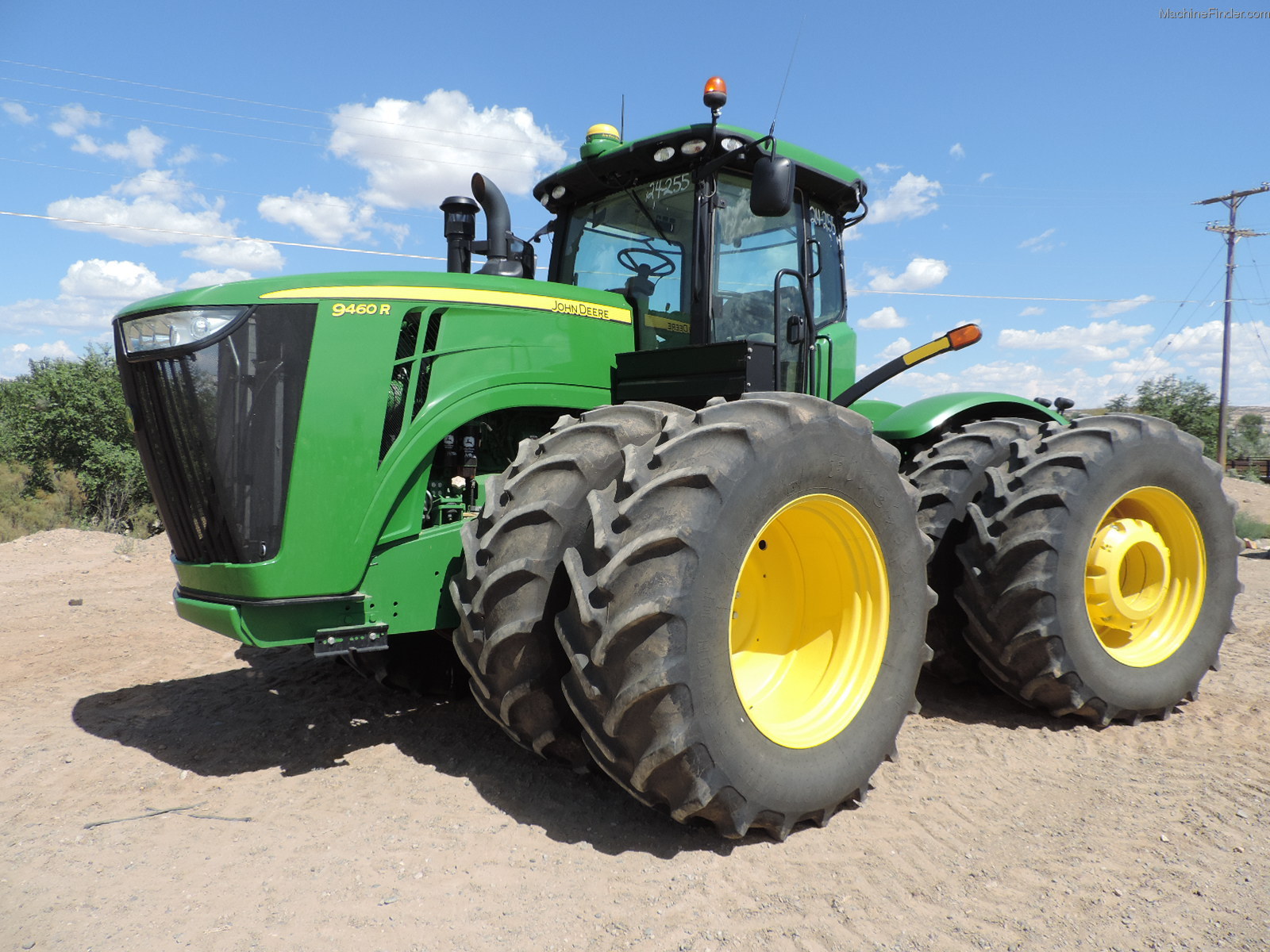

John Deere 9460R
John Deere 9460R — 9R/RT Series · 460 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
460 hp
Max power
279.2 kW
Weight
39010 to 41715 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Four-wheel Drive (4WD) tractorReference
Built in Waterloo, Iowa, USAReference
Original price was $337,031 in 2014Reference
Four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockfully-locking electro-hydraulicReference
Steeringhydraulic powerReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulic optionalReference
CommandView II cab standard with air-conditioning.Reference
Variants
9460R4WDReference
9460RTcrawlerReference
Engine
John Deere 13.5L 6-cyl dieselReference
Fuel tank1324.8 LReference
Engine (gross)343.0 kWReference
Engine (max)377.3 kWReference
Drawbar (tested)274.0 kWReference
John Deere PowerTech PSXReference
turbocharged dieselReference
6-cylinder 24-valveReference
liquid-cooled inlineReference
Displacement13.5 LReference
Bore/Stroke132 x 165 mmReference
EmissionsTier 4AReference
Emission controlexhaust gas recirculation (EGR)Reference
Rated Power (gross)343.0 kWReference
Maximum Power (gross)377.3 kWReference
Fuel systemelectronic unit injectorsReference
Compression16:1Reference
Rated RPM2100Reference
Starter volts12Reference
Max power279.2 kWReference
Power at rated engine speed248.3 kWReference
Max power274.0 kWReference
Transmission
24-speed partial power shiftReference
18-speed full power shiftReference
TransmissionJohn Deere PowrSyncReference
Typepartial power shiftReference
Gears24 forward and 6 reverseReference
Clutchhydraulic wet discReference
Three gears (1-3) in four ranges (A-D) with high-low power shift. Synchronized shifting between gears and ranges.Reference
TransmissionJohn Deere PowerShiftReference
Typefull power shiftReference
Gears18 forward and 6 reverseReference
PTO & Hydraulics
PTO (claimed)237.9 kWReference
PTO (tested)279.2 kWReference
Typeclosed center pressure flow compensatedReference
Pressure200.0 barReference
Valves4 to 6Reference
Pump flow166.5 lpmReference
Pump flow181.7 lpmReference
Pump flow295.2 lpmReference
SCV flow140.0 lpmReference
SCV flow170.3 lpmReference
Rear Type4N/3Reference
Rear Type4N/4Reference
Controlelectronic draft sensingReference
Rear lift6940 kgReference
Rear lift9072 kgReference
DrawbarCategory 4 standard with optional heavy-duty support . Optional Category 5 with heavy-duty support rated at 5,440 kg. (2,470 kg)Reference
Rear PTOindependent (optional)Reference
Rear PTO Type1000 (1.75)Reference
With hitch Length749 cmReference
Power at rated PTO speed275.7 kWReference
Dimensions
Wheelbase350 cmReference
Weight39010 to 41715 poundsReference
Front tire710/70R42Reference
Rear tire710/70R42Reference
Ag front710/70R42Reference
Ag rear710/70R42Reference
Length716 cmReference
Width304 cmReference
Front axle119 by 3048 mmReference
Rear axle119 by 3048 mmReference
Shipping17694 kgReference
Operating18921 kgReference
9460R Serial Number Location
Serial number plate on the front-right of the tractor frame, ahead of the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Charging volts12Reference
Batteries3Reference
Battery CCA925Reference
Battery volts12Reference
Capacities
Max capacity21918 kgReference
John Deere 9460R Height
Hood274 cmReference
Cab368 cmReference
Cab383 cmReference
Exhaust449 cmReference
Test results
Diesel 18-speed 4WDSeptember 25 - October 4, 2012Link: OCED Tractor Test 2040 fileReference
PTO performanceReference
Fuel use80.2 l/hourReference
Fuel use81.4 l/hourReference
Drawbar performanceReference
Fuel use90.5 l/hourReference
Gear 7 used for power test.Reference
Max pull19673 kgReference
Gear 1 used for pull test.Reference
Speeds
With Group 48 rear tires.Reference
