Tractor · 2012Unverified

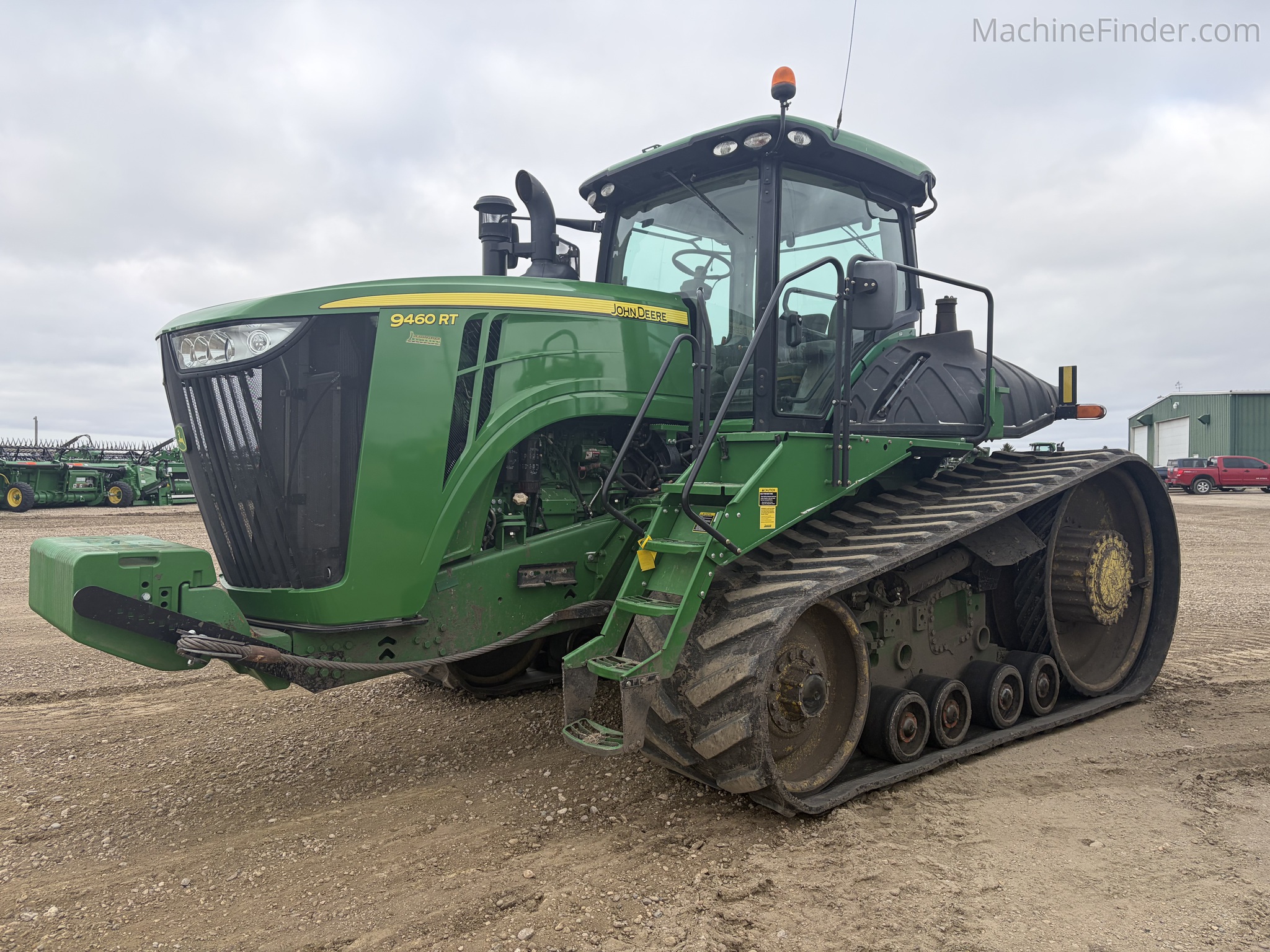

John Deere 9460RT
John Deere 9460RT — 9R/RT Series · 460 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
460 hp
Max power
268.3 kW
Weight
44910 to 46845 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Agricultural Crawler tractorReference
Built in Waterloo, Iowa, USAReference
Original price was $401,154 in 2014Reference
DrivecrawlerReference
Final drivesoutboard planetaryReference
Steeringhydrostatic power differentialReference
Hydraulic wet disc brakesReference
CommandView II cab standard with air-conditioning.Reference
Variants
9460R4WDReference
9460RTcrawlerReference
Engine
John Deere 13.5L 6-cyl dieselReference
Fuel tank1286.9 LReference
Engine (gross)343.0 kWReference
Engine (net)329.6 kWReference
Drawbar (tested)263.3 kWReference
John Deere PowerTech PSXReference
turbocharged dieselReference
6-cylinder 24-valveReference
liquid-cooled inlineReference
Displacement13.5 LReference
Bore/Stroke132 x 165 mmReference
EmissionsInterim Tier 4Reference
Emission controlexhaust gas recirculation (EGR)Reference
Rated Power (net)329.6 kWReference
Rated Power (gross)343.0 kWReference
Cooling systemvariable ratio belt driveReference
Compression16:1Reference
Rated RPM2100Reference
Idle RPM900-2200Reference
Operating RPM1500-2100Reference
StarterelectricReference
Starter volts12Reference
Oil capacity48.0 LReference
Coolant capacity55.1 LReference
Max power268.3 kWReference
Power at rated engine speed235.7 kWReference
Max power263.3 kWReference
Transmission
18-speed full power shiftReference
TransmissionJohn Deere PowerShiftReference
Typefull power shiftReference
Gears18 forward and 6 reverseReference
Clutchhydraulic wet discReference
PTO & Hydraulics
PTO (claimed)237.9 kWReference
PTO (tested)268.3 kWReference
Typeclosed center pressure flow compensatedReference
Pressure200.0 barReference
Valves4 to 6Reference
Pump flow181.7 lpmReference
Pump flow295.2 lpmReference
SCV flow140.0 lpmReference
SCV flow170.3 lpmReference
Rear Type4N/3Reference
Rear Type4N/4Reference
Controlelectronic draft sensingReference
Rear lift6940 kgReference
Rear lift9072 kgReference
DrawbarCategory 4 standard with heavy-duty support . Optional Cat. 4 reinforcement to 4,581 kg (wide swing) or 4,900 kg. Optional Category 5 drawbar rated to 4,581 kg (wide swing) or 5,440 kg. (2,470 kg)Reference
Rear PTOindependent (optional)Reference
Rear PTO Type1000 (1.75)Reference
Power at rated PTO speed260.5 kWReference
Dimensions
Wheelbase294 cmReference
Weight44910 to 46845 poundsReference
30-inch tracksReference
Length601 cmReference
Width345 cmReference
Width360 cmReference
Width396 cmReference
Height (cab)340 cmReference
Height (exhaust)393 cmReference
Shipping weight20371 kgReference
Operating weight21248 kgReference
Ground clearance40 cmReference
Clearance (drawbar)48 cmReference
9460RT Serial Number Location
On main tractor frame, front-right side.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Batteries3Reference
Battery CCA925Reference
Battery volts12Reference
John Deere 9460RT Tracks
Width76 cmReference
Test results
Diesel 18-speed crawlerSeptember 20 - October 3, 2012Link: OCED Tractor Test 2041 fileReference
PTO performanceReference
Fuel use78.3 l/hourReference
Fuel use79.1 l/hourReference
Fuel use79.9 l/hourReference
Drawbar performanceReference
Fuel use90.8 l/hourReference
Gear 7 used for power test.Reference
Max pull20764 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
