Tractor · 2015Unverified

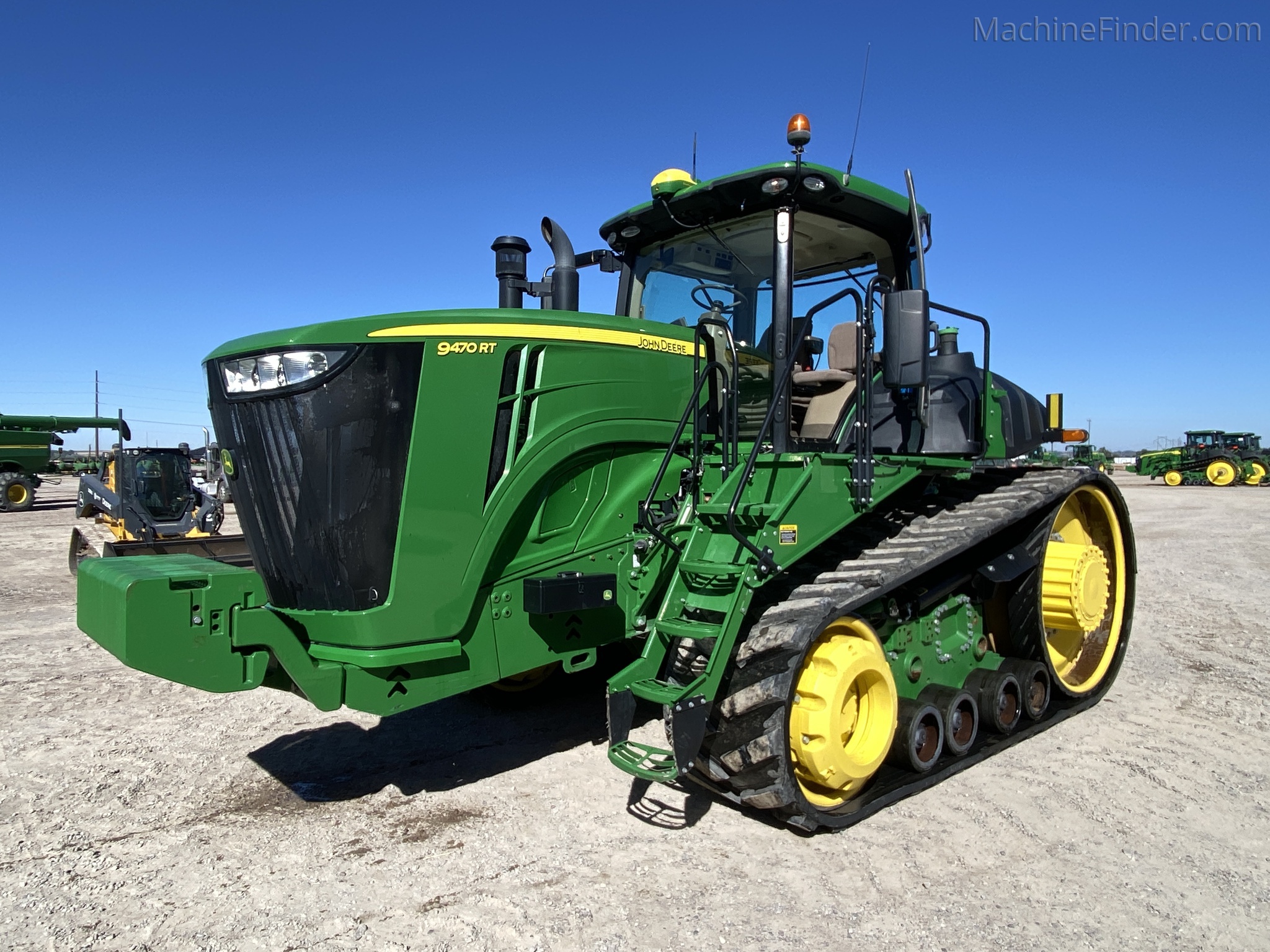

John Deere 9470RT
John Deere 9470RT — 9R Series · 470 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
470 hp
Weight
20371 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Agricultural Crawler tractorReference
Built in Waterloo, Iowa, USAReference
DrivecrawlerReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Command View Cab III standard with air-conditioning. AutoTrac ready; ISOBUS 11783; JDLink readyReference
Variants
9470Rwheeled 4WDReference
9470RTcrawlerReference
9470RXarticulated crawlerReference
Engine
John Deere 13.5L 6-cyl dieselReference
Engine (gross)350.5 kWReference
Engine (max)385.5 kWReference
John Deere PSSReference
variable geometry turbocharger dieselReference
6-cylinderReference
liquid-cooledReference
Displacement13.5 LReference
Bore/Stroke132 x 165 mmReference
EmissionsTier IVReference
Emission controlselective catalytic reductionReference
Rated Power (gross)350.5 kWReference
Maximum Power (gross)385.5 kWReference
Compression16:1Reference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Transmission
18-speed full power shiftReference
Transmissione18 PowerShiftReference
Typefull power shiftReference
Gears18 forward and 6 reverseReference
PTO & Hydraulics
PTO (claimed)245.3 kWReference
Hydraulic system300.2 LReference
Hydraulic system307.7 LReference
Typeclosed-center pressure/flow compensatedReference
Capacity300.2 LReference
Capacity307.7 LReference
Pressure200.0 barReference
Rear valves4 to 8Reference
Pump flow219.5 lpmReference
Pump flow435.3 lpmReference
SCV flow132.5 lpmReference
SCV flow159.0 lpmReference
Rear TypeIV/IVNReference
Rear TypeIVN/IIIReference
Controldraft sensingReference
Rear lift6804 kgReference
Rear lift9072 kgReference
DrawbarCat. 5 HDReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type1000 (1.75)Reference
Capacities
Fuel1324.8 LReference
Exhaust fluid (DEF)83.3 LReference
Dimensions
Weight20371 kgReference
30-inch tracksReference
Shipping20371 kgReference
Ballasted24494 kgReference
Max Drawbar5443 kgReference
Max Drawbar4581 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Charging amps240Reference
Charging volts12Reference
Batteries3Reference
Battery CCA925Reference
Battery volts12Reference
John Deere 9470RT Tracks
Width76 cmReference
Width91 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
