Tractor · 2012Unverified

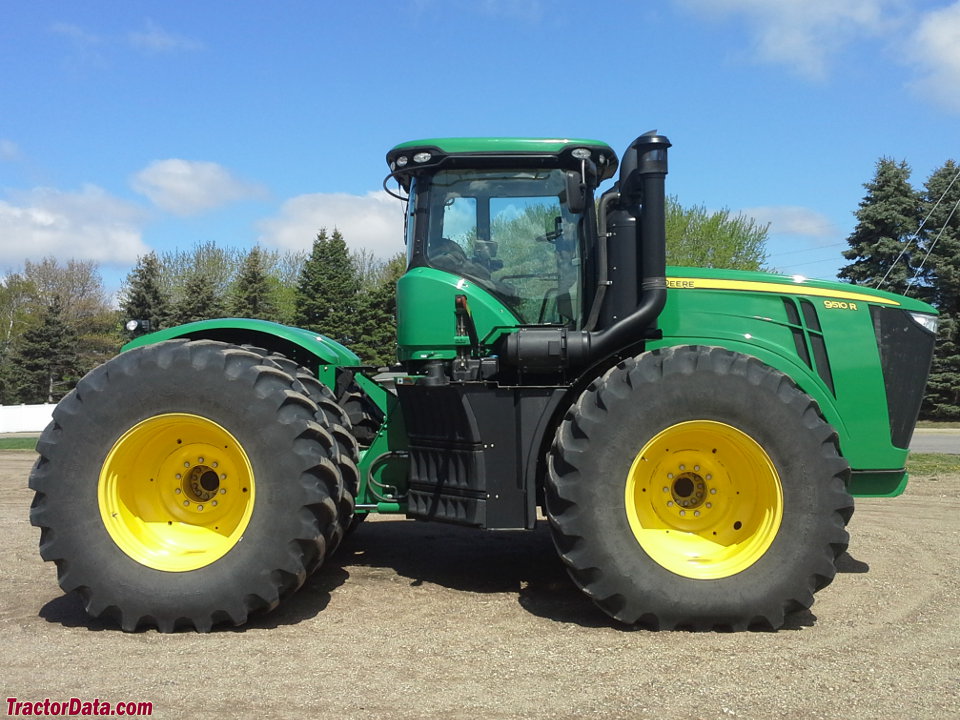

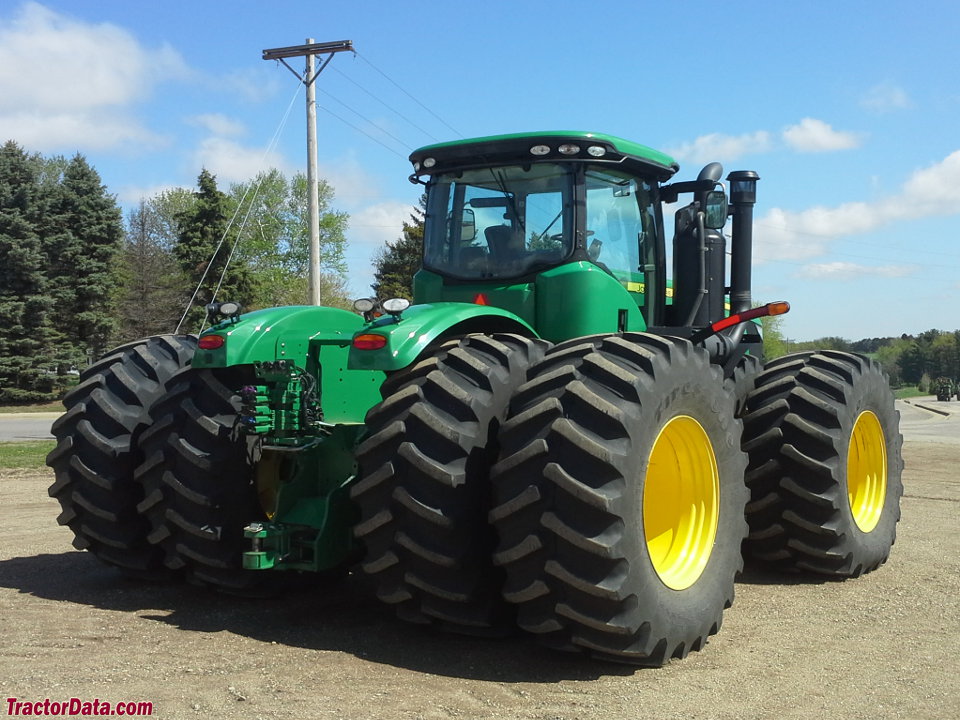

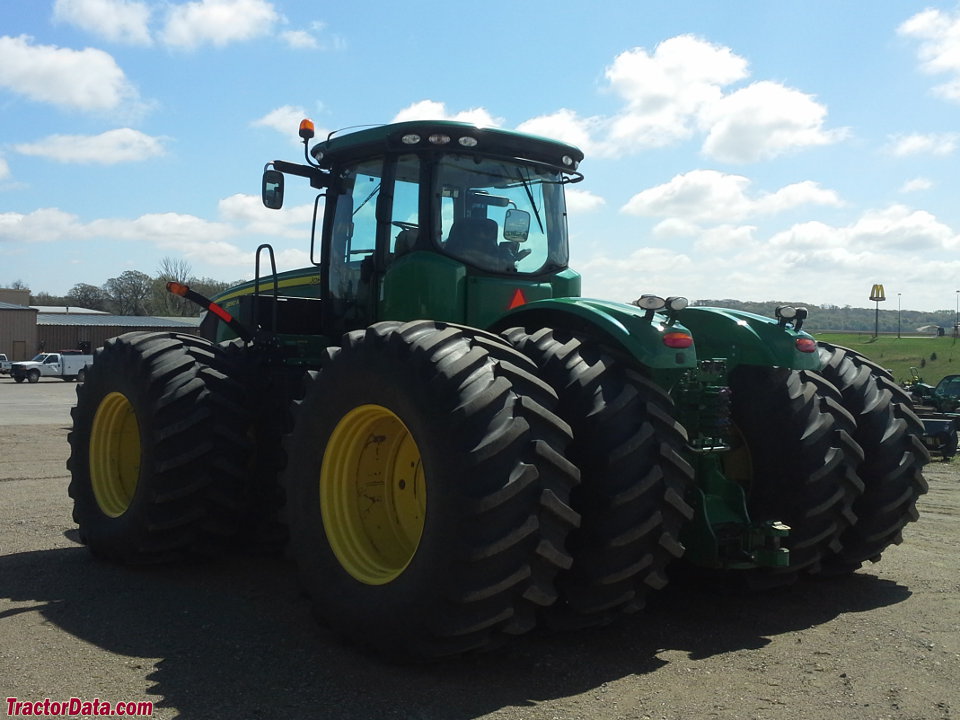

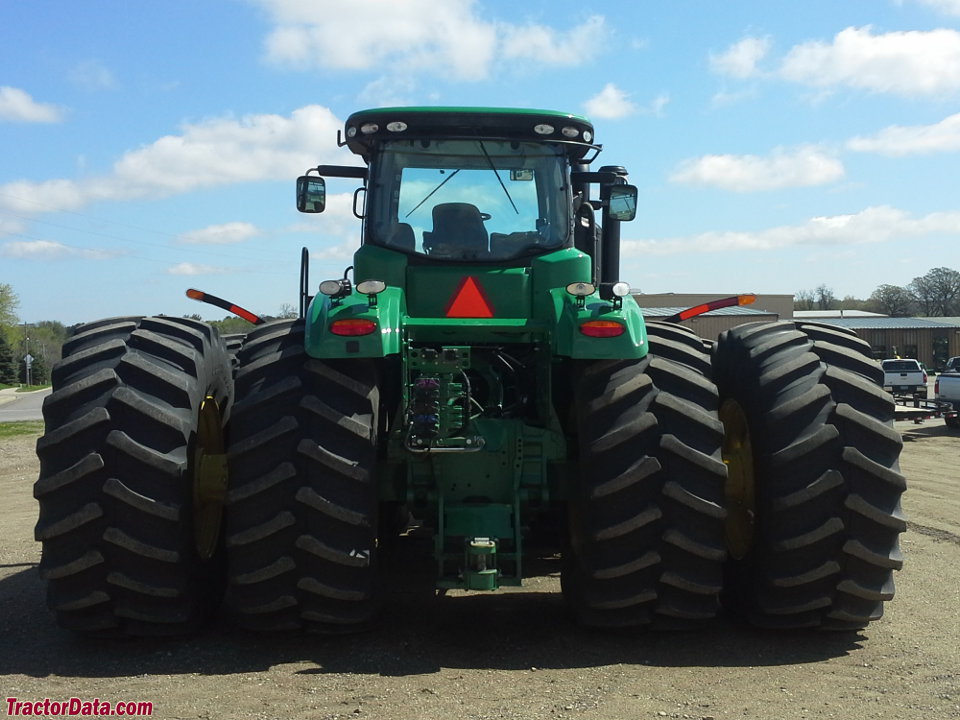

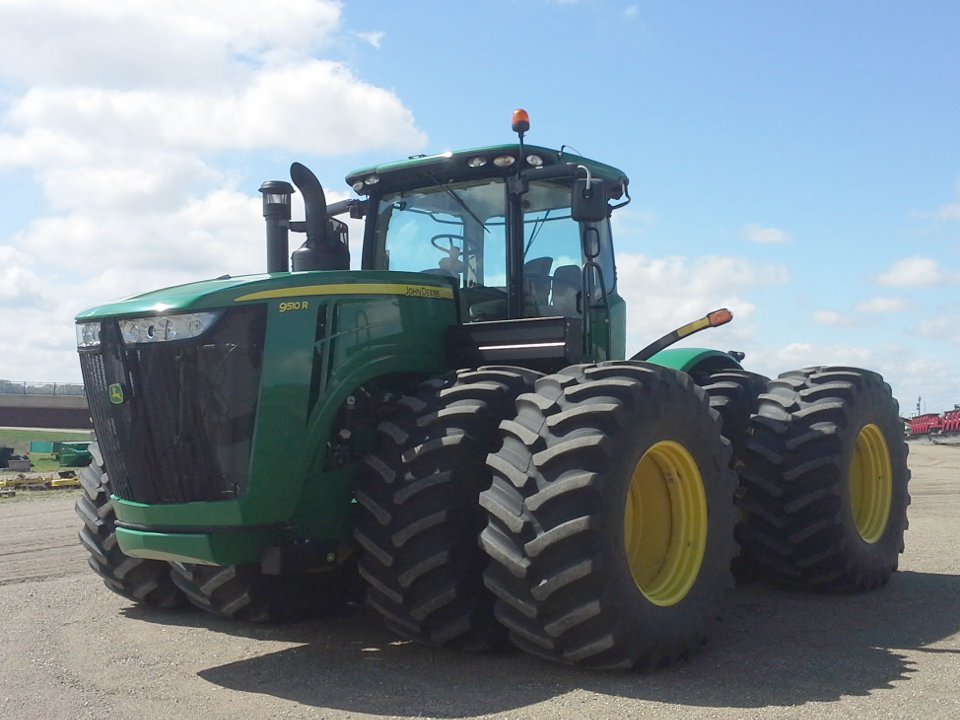

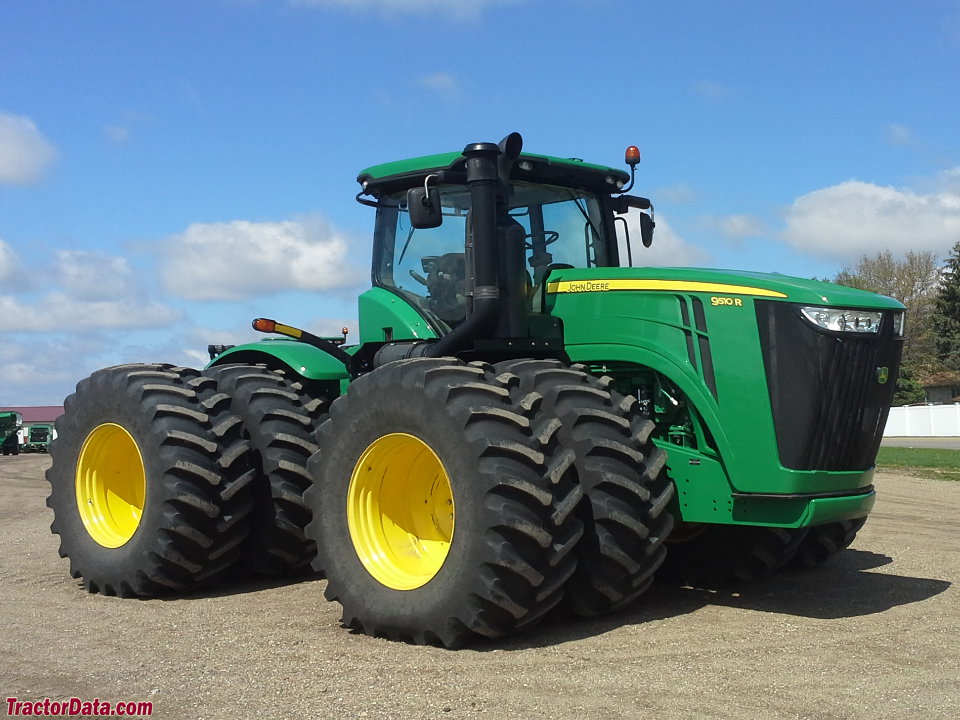

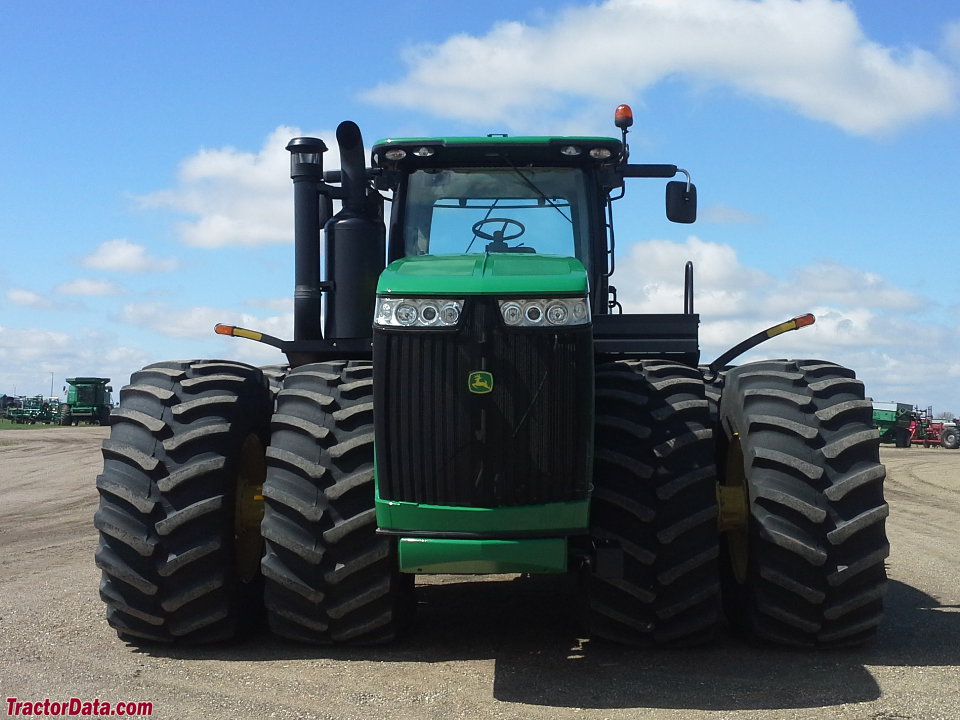

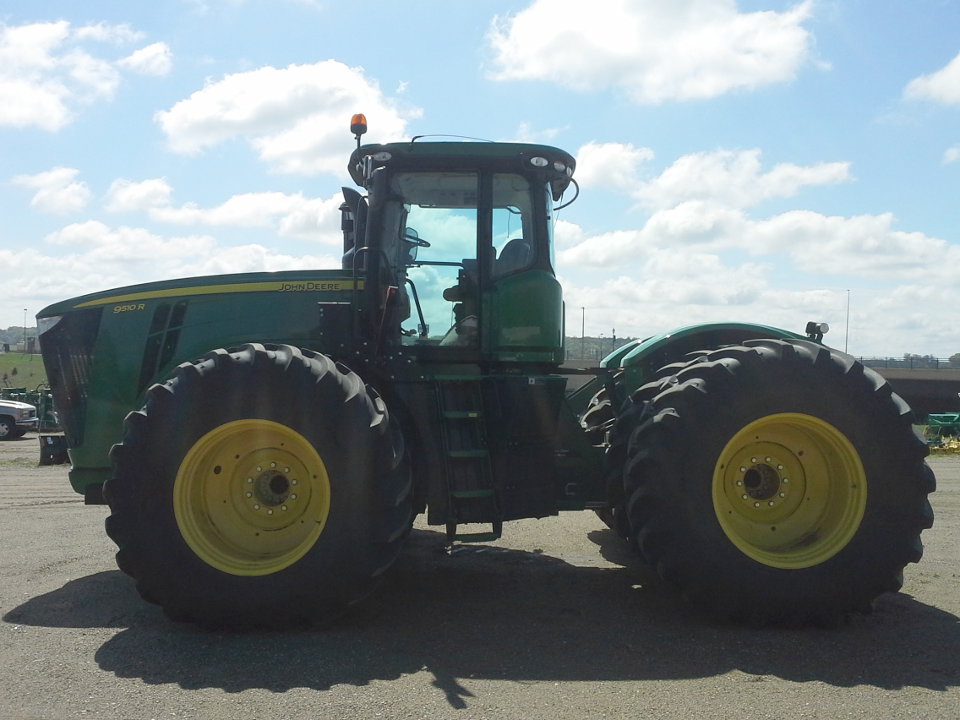

John Deere 9510R
John Deere 9510R — 9R/RT Series · 510 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
510 hp
Max power
274.7 kW
Weight
41540 to 44255 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Four-wheel Drive (4WD) tractorReference
Built in Waterloo, Iowa, USAReference
Original price was $381,687 in 2014Reference
Four-wheel driveReference
Final drivesinboard planetary with double-reduction axleReference
Differential lockfully-locking electro-hydraulicReference
Steeringhydraulic powerReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulic optionalReference
CommandView II cab standard with air-conditioning.Reference
Variants
9510R4WDReference
9510RTcrawlerReference
Engine
John Deere 13.5L 6-cyl dieselReference
Fuel tank1324.8 LReference
Engine (gross)380.3 kWReference
Engine (max)418.3 kWReference
Drawbar (tested)306.5 kWReference
John Deere PowerTech PSXReference
turbocharged dieselReference
6-cylinder 24-valveReference
liquid-cooled inlineReference
Displacement13.5 LReference
Bore/Stroke132 x 165 mmReference
EmissionsInterim Tier 4Reference
Emission controlexhaust gas recirculation (EGR)Reference
Rated Power (gross)380.3 kWReference
Maximum Power (gross)418.3 kWReference
Fuel systemelectronic unit injectorsReference
Compression16:1Reference
Rated RPM2100Reference
Starter volts12Reference
Max power274.7 kWReference
Power at rated engine speed238.7 kWReference
Max power306.5 kWReference
Transmission
18-speed full power shiftReference
TransmissionJohn Deere PowerShiftReference
Typefull power shiftReference
Gears18 forward and 6 reverseReference
Clutchhydraulic wet discReference
PTO & Hydraulics
PTO (claimed)237.9 kWReference
PTO (tested)274.7 kWReference
Typeclosed center pressure flow compensatedReference
Pressure200.0 barReference
Valves4 to 6Reference
Pump flow181.7 lpmReference
Pump flow295.2 lpmReference
SCV flow140.0 lpmReference
SCV flow170.3 lpmReference
Rear Type4N/4Reference
Controlelectronic draft sensingReference
Rear lift6940 kgReference
Rear lift9072 kgReference
DrawbarCategory 5 standard heavy-duty support and 5,440 kg load rating. (12,000 pound)Reference
Rear PTOindependent (optional)Reference
Rear PTO Type1000 (1.75)Reference
With hitch Length749 cmReference
Power at rated PTO speed268.6 kWReference
Dimensions
Wheelbase350 cmReference
Weight41540 to 44255 poundsReference
Front tire710/70R42Reference
Rear tire710/70R42Reference
Ag front710/70R42Reference
Ag rear710/70R42Reference
Length716 cmReference
Width304 cmReference
Front axle119 by 3048 mmReference
Rear axle119 by 3048 mmReference
Shipping18842 kgReference
Operating20074 kgReference
9510R Serial Number Location
Serial number plate on the front-right of the tractor frame, ahead of the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Charging volts12Reference
Batteries3Reference
Battery CCA925Reference
Battery volts12Reference
Capacities
Max capacity27216 kgReference
John Deere 9510R Height
Hood274 cmReference
Cab368 cmReference
Cab383 cmReference
Exhaust449 cmReference
Test results
Diesel 18-seed 4WDOctober 23 - 31, 2012Link: OCED Tractor Test 2042 fileReference
PTO performanceReference
Fuel use79.5 l/hourReference
Fuel use81.4 l/hourReference
Drawbar performanceReference
Fuel use101.8 l/hourReference
Gear 7 used for power test.Reference
Max pull20373 kgReference
Gear 1 used for pull test.Reference
Speeds
With Group 48 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
