Tractor · 2012Unverified

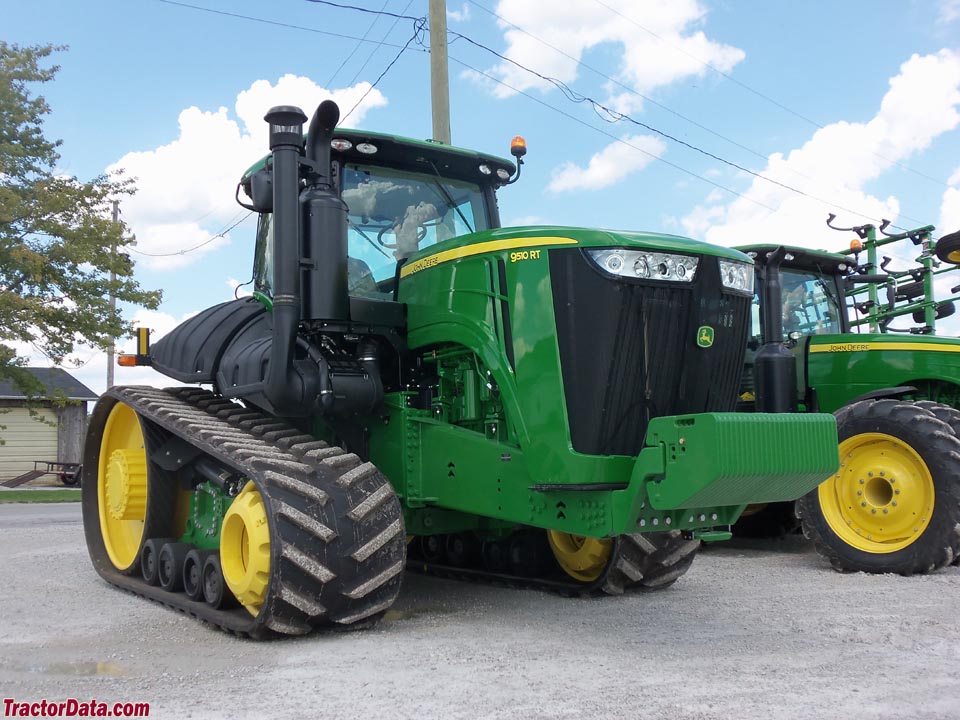

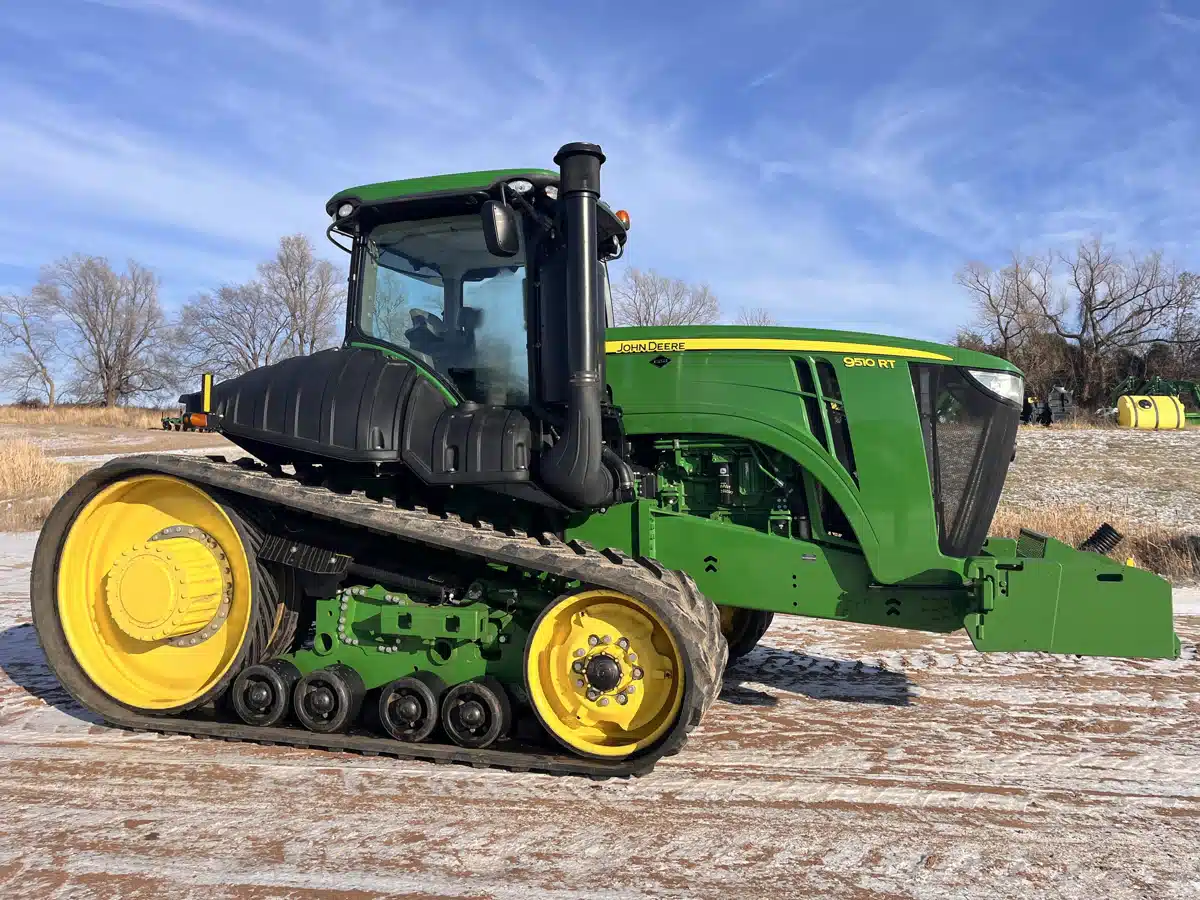

John Deere 9510RT

Name: John Deere 9510RT
Brand: John Deere

John Deere 9510RT — 9R/RT Series · 510 hp. Reference specifications; pending source verification.

The John Deere 9510RT is a tractor with a rating of 510 hp, positioning it within the higher-powered machines in its class. It was produced from 2012 to 2014 and features a 6-cylinder turbocharged diesel liquid-cooled engine, coupled with a hydrostatic transmission and four-wheel drive. The listed weight of the 9510RT ranges from 44910 to 46645 pounds. It is designed for tasks on areas of around 1,500+ acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

510 hp

Max power

267.2 kW

Weight

44910 to 46645 pounds

Catalogue coverage

Variants represented

Richest spec table

126 rows

Recorded power

510 hp

Recorded weight

20371 kg

Transmissions

18-speed full power shift

Production years

2012-2014

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Agricultural Crawler tractorReference

Built in Waterloo, Iowa, USAReference

Original price was $428,960 in 2014Reference

DrivecrawlerReference

Final drivesoutboard planetaryReference

Steeringhydrostatic power differentialReference

Hydraulic wet disc brakesReference

CommandView II cab standard with air-conditioning.Reference

Variants

9510R4WDReference

9510RTcrawlerReference

Engine

John Deere 13.5L 6-cyl dieselReference

Fuel tank1286.9 LReference

Engine (gross)380.3 kWReference

Engine (net)365.4 kWReference

Drawbar (tested)292.2 kWReference

John Deere PowerTech PSXReference

turbocharged dieselReference

6-cylinder 24-valveReference

liquid-cooled inlineReference

Displacement13.5 LReference

Bore/Stroke132 x 165 mmReference

EmissionsInterim Tier 4Reference

Emission controlexhaust gas recirculation (EGR)Reference

Rated Power (net)365.4 kWReference

Rated Power (gross)380.3 kWReference

Cooling systemvariable ratio belt driveReference

Compression16:1Reference

Rated RPM2100Reference

Idle RPM900-2200Reference

Operating RPM1500-2100Reference

StarterelectricReference

Starter volts12Reference

Oil capacity48.0 LReference

Coolant capacity55.1 LReference

Max power267.2 kWReference

Power at rated engine speed233.7 kWReference

Max power292.2 kWReference

Fuel TypeDieselReference

No of Cylinders6 cylinderReference

Rated engine speed2,100 RPMReference

Emissions complianceInterim Tier 4 | exhaust gas recirculation (EGR)Reference

Bore and stroke5.197x6.496 inchesReference

Compression ratio16:1Reference

Transmission

18-speed full power shiftReference

TransmissionJohn Deere PowerShiftReference

Typefull power shiftReference

Gears18 forward and 6 reverseReference

Clutchhydraulic wet discReference

Transmission TypePowershiftReference

forward and reverse optionsfull power shift -18F and 6RReference

Wheel DriveTrackReference

Rear Axle Drive Typeoutboard planetaryReference

PTO & Hydraulics

PTO (claimed)237.9 kWReference

PTO (tested)267.2 kWReference

Typeclosed center pressure flow compensatedReference

Pressure200.0 barReference

Valves4 to 6Reference

Pump flow181.7 lpmReference

Pump flow295.2 lpmReference

SCV flow140.0 lpmReference

SCV flow170.3 lpmReference

Rear Type4N/4Reference

Controlelectronic draft sensingReference

Rear lift6940 kgReference

Rear lift9072 kgReference

DrawbarCategory 5 wide-swing drawbar standard, rated to 4,581 kg. Optional heavy-duty kit rated to 5,440 kg.Reference

Rear PTOindependent (optional)Reference

Rear PTO Type1000 (1.75)Reference

Power at rated PTO speed263.5 kWReference

Dimensions

Wheelbase294 cmReference

Weight44910 to 46645 poundsReference

30-inch tracksReference

Length601 cmReference

Width345 cmReference

Width360 cmReference

Width396 cmReference

Height (cab)340 cmReference

Height (exhaust)393 cmReference

Shipping weight20371 kgReference

Operating weight21158 kgReference

Ground clearance40 cmReference

Clearance (drawbar)48 cmReference

9510RT Serial Number Location

On main tractor frame, front-right side.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps200Reference

Batteries3Reference

Battery CCA925Reference

Battery volts12Reference

Total cold cranking amps925 CCAReference

John Deere 9510RT Tracks

Width76 cmReference

Test results

Diesel 18-speed crawlerOctober 2 - 16, 2012Link: OCED Tractor Test 2043 fileReference

PTO performanceReference

Fuel use78.0 l/hourReference

Fuel use78.7 l/hourReference

Fuel use80.6 l/hourReference

Drawbar performanceReference

Fuel use98.4 l/hourReference

Gear 7 used for power test.Reference

Max pull21868 kgReference

Gear 1 used for pull test.Reference

General

Make & ModelJohn DeereReference

Cruise controlTRUEReference

Country of manufacturerUSAReference

Capacities

Capacity826.7 ciReference

Crankcase oil volume50.7 qtsReference

Hydraulics

Capacity Valves24Reference

Hydraulics Typeclosed center pressure flow compensatedReference

Maximum operating pressure2,900 psiReference

Remote Valves4 to 6 valvesReference

Rear Hitch category (SAE designation)Category 4N/4Reference

Rear Hitch maximum lift capacity9,071.8 kgReference

Rear Hitch Sensing Typeelectronic draft sensingReference

PTO

PTO Power319 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Dimensions & weight

Height Over Cab340.4 cmReference

Overall Length602 cmReference

Overall Width396.2 cmReference

Drawbar clearance48.3 cmReference

Overall weight20,370.8 kgReference

Track width76.2 cmReference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Steering & brakes

Steering typehydrostatic power differentialReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
