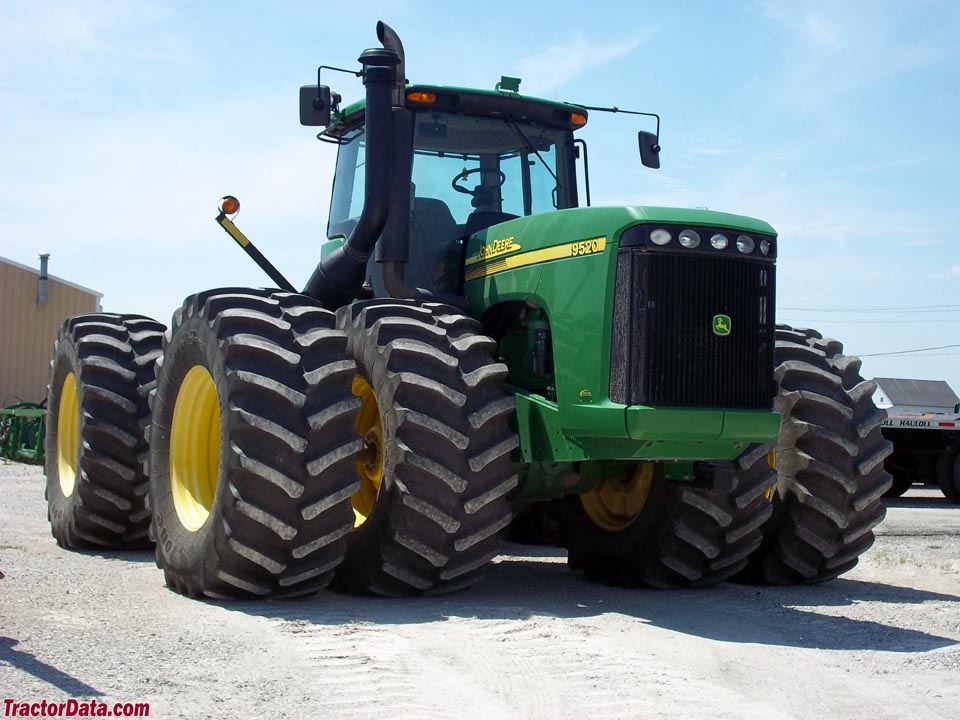

John Deere 9520
John Deere 9520 — Four-wheel Drive (4WD) tractor · 333 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
333 hp
Max power
276.3 kW
Weight
36090 to 38315 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Four-wheel Drive (4WD) tractorReference
Built in Waterloo, Iowa, USAReference
Four-wheel driveReference
Steeringhydrostatic articulatedReference
Hydraulic wet disc brakesReference
CommandView cab standard with air-conditioning.Reference
Variants
9520Tcrawler tractorReference
Engine
John Deere 12.5L 6-cyl dieselReference
Engine335.6 kWReference
Drawbar (tested)261.1 kWReference
John DeereReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement12.5 LReference
Bore/Stroke127 x 165 mmReference
Power335.6 kWReference
Air cleanerdryReference
Compression17:1Reference
Rated RPM2100Reference
Operating RPM1500-2100Reference
Starter volts12Reference
Coolant capacity60.6 LReference
Oil capacity41.6 LReference
Max power276.3 kWReference
Power at rated engine speed248.5 kWReference
Max power261.1 kWReference
Transmission
18-speed full power shiftReference
TransmissionJohn Deere PowershiftReference
Typefull power shiftReference
Gears18 forward and 6 reverseReference
Oil capacity134.0 LReference
Oil capacity137.8 LReference
PTO & Hydraulics
PTO (claimed)235.6 kWReference
PTO (tested)276.3 kWReference
Hydraulic system102.2 LReference
Hydraulic system106.0 LReference
Hydraulic system113.6 LReference
Hydraulic system117.3 LReference
Typeclosed center pressure/flow compensatedReference
Capacity102.2 LReference
Capacity106.0 LReference
Capacity113.6 LReference
Capacity117.3 LReference
Pressure200.0 barReference
Valves4 or 5Reference
Pump flow113.6 lpmReference
Total flow181.7 lpmReference
Total flow295.2 lpmReference
Rear TypeIIIReference
Rear TypeIV/IVNReference
Rear lift6291 kgReference
Rear lift6552 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Power at rated PTO speed267.8 kWReference
Capacities
Fuel1022.0 LReference
Dimensions
Wheelbase350 cmReference
Weight36090 to 38315 poundsReference
Front tire800/70R38Reference
Rear tire800/70R38Reference
Ag front800/70R38Reference
Ag rear800/70R38Reference
Ag front480/80R46Reference
Ag front20.8R42Reference
Ag front520/85R42Reference
Ag front620/70R42Reference
Ag front710/70R38Reference
Ag front480/80R50Reference
Ag front520/85R46Reference
Ag front620/70R46Reference
Ag front710/70R42Reference
Ag rear480/80R46Reference
Ag rear20.8R42Reference
Ag rear520/85R42Reference
Ag rear620/70R42Reference
Ag rear710/70R38Reference
Ag rear480/80R50Reference
Ag rear520/85R46Reference
Ag rear620/70R46Reference
Ag rear710/70R42Reference
Length695 cmReference
Length734 cmReference
Width293 cmReference
Clearance (front axle)73 cmReference
Clearance (drawbar)43 cmReference
Shipping16370 kgReference
Operating17379 kgReference
Ballasted20303 kgReference
9520 Serial Numbers
Location:On the top-left of rear hinge memberReference
20021001Reference
200310001Reference
200420001Reference
200530001Reference
200640001Reference
200750001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps140Reference
Batteries3Reference
Battery CCA925Reference
Battery volts12Reference
John Deere 9520 Height
Hood247 cmReference
Cab349 cmReference
Exhaust355 cmReference
Test results
Diesel 18-speed 4WDMay 28 - 31, 2002Link: OCED Tractor Test 1805 fileReference
PTO performanceReference
Fuel use75.3 l/hourReference
Fuel use73.4 l/hourReference
Drawbar performanceReference
Fuel use79.1 l/hourReference
Gear 7 used for power test.Reference
Max pull20938 kgReference
Gear 14.23 used for pull test.Reference
Speeds
With 800/70R38 rear tires.Reference
