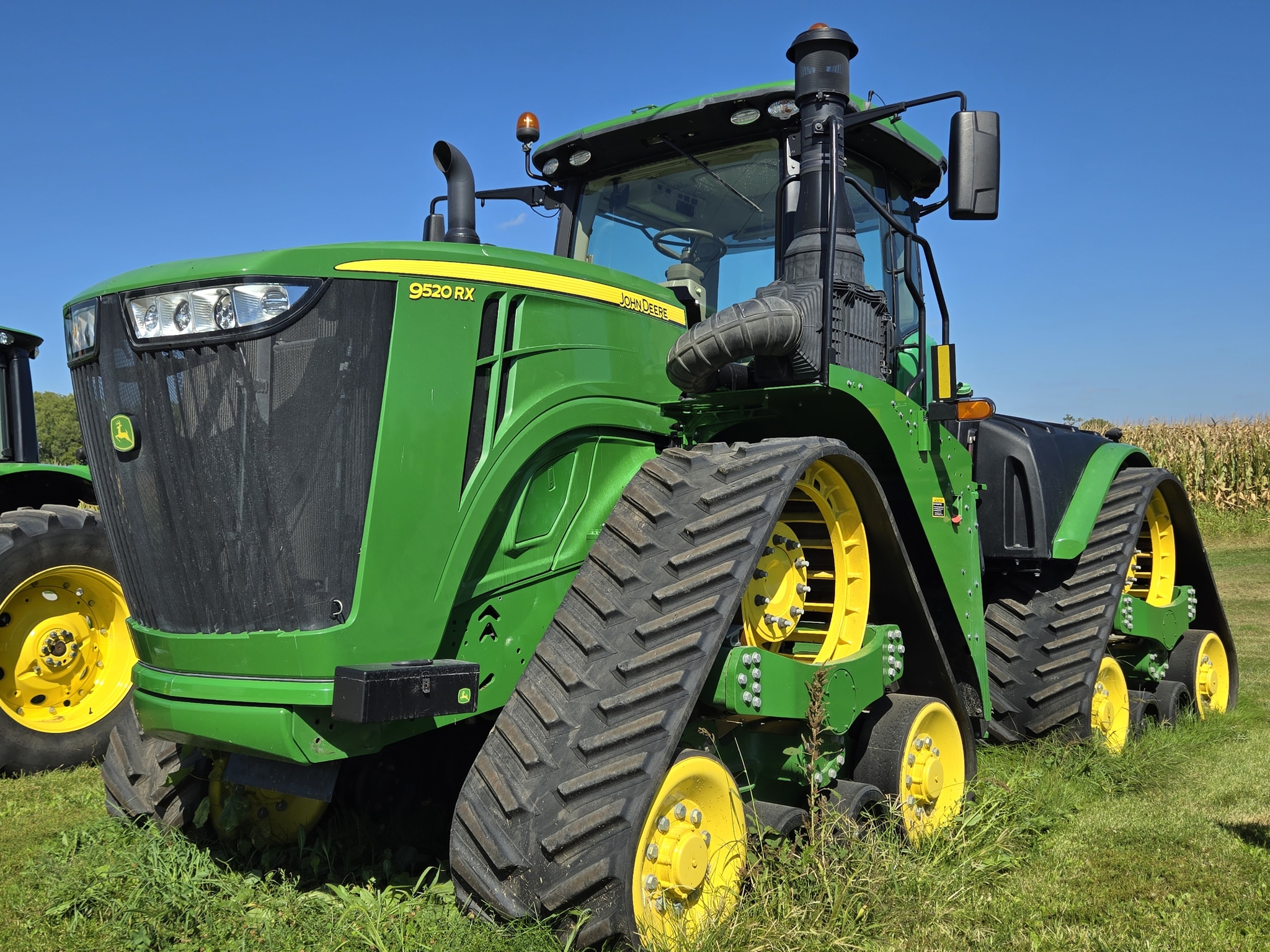

John Deere 9520RX
John Deere 9520RX — 9R Series · 520 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
520 hp
Max power
270.3 kW
Weight
24494 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Articulated Crawler tractorReference
Built in Waterloo, Iowa, USAReference
Original price was $523,359 in 2015Reference
Drivearticulated-crawlerReference
CommandView III cab standard with suspension and air-conditioning. AutoTrac ready; ISOBUS 11783; JDLink readyReference
Variants
9520Rwheeled 4WDReference
9520RTcrawlerReference
9520RXarticulated crawlerReference
Engine
John Deere 13.5L 6-cyl dieselReference
Fuel tank1514.0 LReference
Exhaust fluid (DEF)83.3 LReference
Engine (gross)387.8 kWReference
Drawbar (tested)296.7 kWReference
John Deere PSSReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement13.5 LReference
Bore/Stroke132 x 165 mmReference
EmissionsTier IVReference
Rated Power (gross)387.8 kWReference
StarterelectricReference
Starter volts12Reference
Max power270.3 kWReference
Power at rated engine speed231.9 kWReference
Max power296.7 kWReference
Transmission
18-speed full power shiftReference
Transmissione18 PowerShiftReference
Typefull power shiftReference
Gears18 forward and 6 reverseReference
Clutchhydraulic wet discReference
PTO & Hydraulics
PTO (tested)270.3 kWReference
Typeclosed-center pressure/flow compensatedReference
Valves4 to 8Reference
Pump flow219.5 lpmReference
Pump flow435.3 lpmReference
SCV flow132.5 lpmReference
SCV flow159.0 lpmReference
Rear TypeIV/IVNReference
Rear lift6804 kgReference
Rear lift9072 kgReference
DrawbarCat. 5 HDReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type1000 (1.75)Reference
Power at rated PTO speed260.3 kWReference
Dimensions
Wheelbase415 cmReference
Weight24494 kgReference
30-inch tracksReference
Length817 cmReference
Width297 cmReference
Width312 cmReference
Height (exhaust)397 cmReference
Clearance (drawbar)40 cmReference
Shipping24494 kgReference
Max Drawbar5443 kgReference
9520RX Serial Numbers
Location:The John Deere 9520RX serial number plate on the right side of the tractor frame, just ahead of the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Charging amps240Reference
Charging volts12Reference
Batteries4Reference
Battery CCA925Reference
Battery volts12Reference
John Deere 9520RX Tracks
Width76 cmReference
Width91 cmReference
Capacities
Max capacity28123 kgReference
Test results
Diesel 18-speed crawlerNovember 17 - 30, 2016Link: OCED Tractor Test 2171 fileReference
PTO performanceReference
Fuel use75.7 l/hourReference
Fuel use76.1 l/hourReference
Fuel use77.2 l/hourReference
Drawbar performanceReference
Fuel use99.5 l/hourReference
Gear 7 used for power test.Reference
Max pull24375 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
