Tractor · 2002Unverified

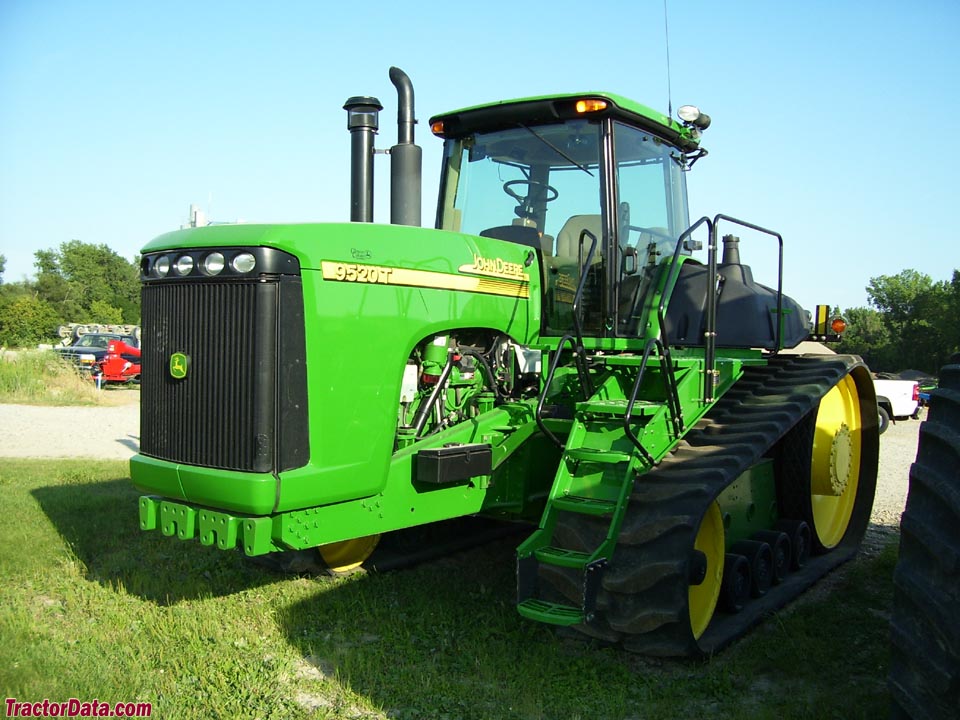

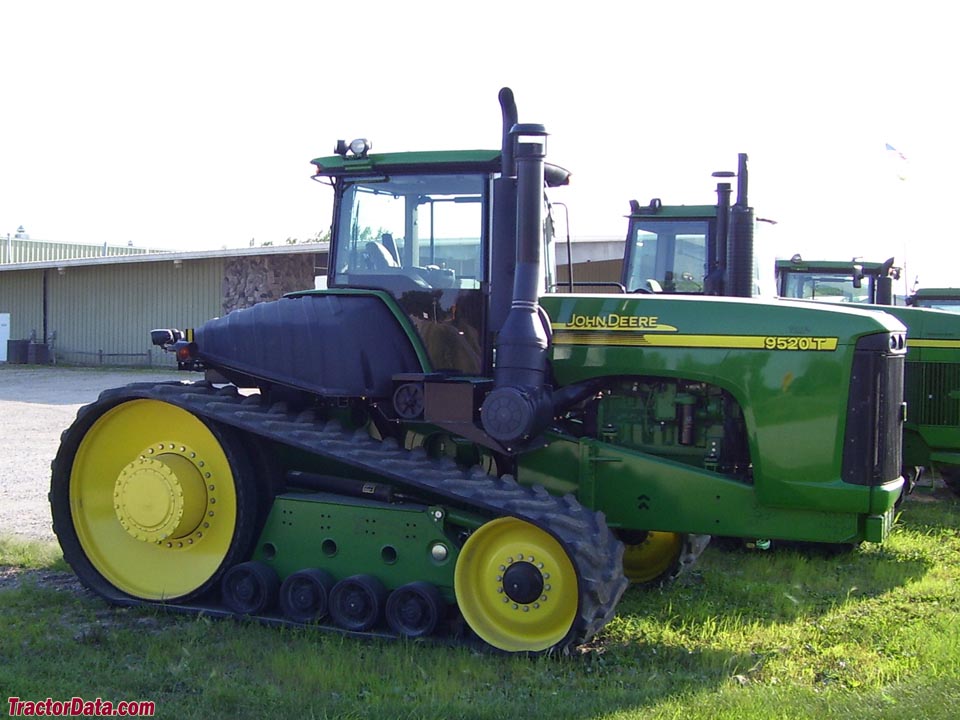

John Deere 9520T

Name: John Deere 9520T
Brand: John Deere

John Deere 9520T — Agricultural Crawler tractor · 333 hp. Reference specifications; pending source verification.

The John Deere 9520T is a tractor with a rated power of 333 hp, placing it at the higher end of its class. This model was manufactured from 2002 to 2007. It is equipped with a 6-cylinder turbocharged diesel liquid-cooled engine and a tracked undercarriage with a powershift transmission. The John Deere 9520T has an operating weight of 39,000 to 43,410 pounds, making it suitable for operations covering 1,500+ acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

333 hp

Max power

277.1 kW

Weight

39000 to 43410 pounds

Catalogue coverage

Variants represented

Richest spec table

85 rows

Recorded power

333 hp

Transmissions

18-speed full power shift

Production years

2002-2007

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Agricultural Crawler tractorReference

Built in Waterloo, Iowa, USAReference

DrivecrawlerReference

Steeringelectro-hydraulic powerReference

Hydraulic wet disc brakesReference

Cab standard.Reference

Variants

9520wheeled tractorReference

Engine

John Deere 12.5L 6-cyl dieselReference

Engine335.6 kWReference

Drawbar (tested)264.5 kWReference

John DeereReference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement12.5 LReference

Bore/Stroke127 x 165 mmReference

Power335.6 kWReference

Compression17:1Reference

Rated RPM2100Reference

Starter volts12Reference

Coolant capacity60.6 LReference

Oil capacity41.6 LReference

Max power277.1 kWReference

Power at rated engine speed248.3 kWReference

Max power264.5 kWReference

Transmission

18-speed full power shiftReference

TransmissionJohn Deere PowerShiftReference

Typefull power shiftReference

Gears18 forward and 6 reverseReference

Oil capacity227.1 LReference

Oil capacity230.9 LReference

PTO & Hydraulics

PTO (claimed)225.2 kWReference

PTO (tested)277.1 kWReference

Hydraulic system102.2 LReference

Hydraulic system104.1 LReference

Typeclosed center pressure/flow compensatedReference

Capacity102.2 LReference

Capacity104.1 LReference

Valves4 or 5Reference

Pump flow113.6 lpmReference

Total flow181.7 lpmReference

Rear TypeIII, IV/IVNReference

Rear lift6291 kgReference

Rear lift6552 kgReference

Rear PTOindependentReference

Rear PTO Type1000Reference

Power at rated PTO speed266.5 kWReference

Capacities

Fuel1211.2 LReference

Max capacity22680 kgReference

Dimensions

Wheelbase281 cmReference

Weight39000 to 43410 poundsReference

30-inch tracksReference

Length601 cmReference

Length683 cmReference

Width358 cmReference

Width345 cmReference

Height (cab)345 cmReference

Height (exhaust)351 cmReference

Ground clearance40 cmReference

Ground clearance48 cmReference

Shipping17690 kgReference

Operating19690 kgReference

9520T Serial Number Location

Serial number plate on the left side of the tractor frame.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps140Reference

Batteries3Reference

Battery CCA925Reference

Battery volts12Reference

John Deere 9520T Tracks

Width76 cmReference

Length on ground281 cmReference

Area on ground4.3 m²Reference

Width91 cmReference

Area on ground5.2 m²Reference

Test results

Diesel 18-speed crawlerApril 2 - May 31, 2002Link: OCED Tractor Test 1806 fileReference

PTO performanceReference

Fuel use77.2 l/hourReference

Fuel use74.2 l/hourReference

Fuel use73.4 l/hourReference

Drawbar performanceReference

Fuel use85.2 l/hourReference

Gear 7 used for power test.Reference

Max pull23050 kgReference

Gear 1 used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
