Tractor · 2007Unverified

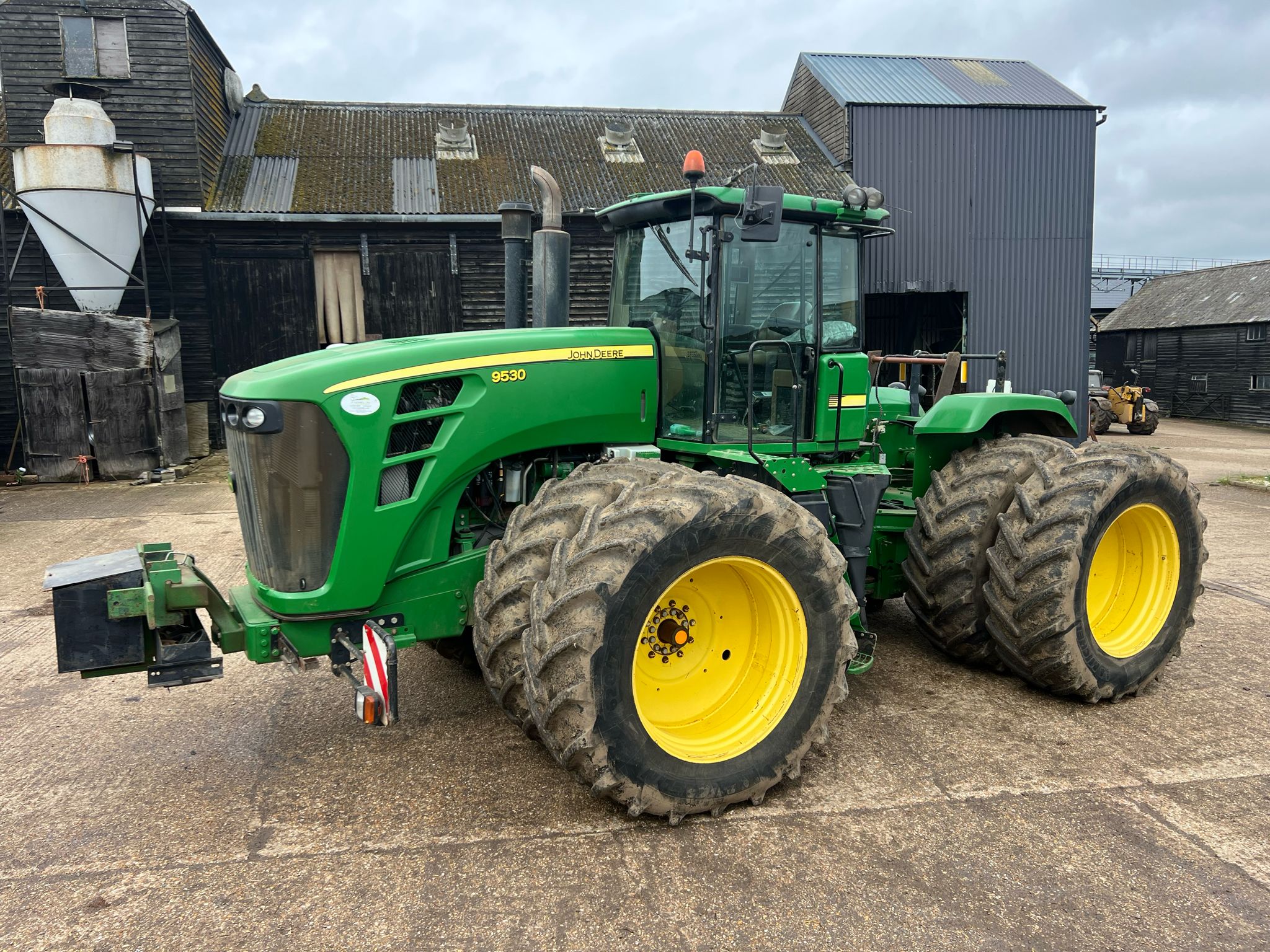

John Deere 9530
John Deere 9530 — Four-wheel Drive (4WD) tractor · 475 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
475 hp
Max power
291.3 kW
Weight
37747 to 39845 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Four-wheel Drive (4WD) tractorReference
Built in Waterloo, Iowa, USAReference
Four-wheel driveReference
Differential lockhydraulic differential lock standardReference
Steeringhydrostatic powerReference
Hydraulic wet discs brakesReference
Trailer brakeshydraulic optionalReference
CommandView Cab standard with air-conditioning. Optional automatic climate control and leather trim.Reference
Variants
9530wheeledReference
9530TcrawlerReference
Engine
John Deere 13.5L 6-cyl dieselReference
Engine354.2 kWReference
Drawbar (tested)291.3 kWReference
John DeereReference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement13.5 LReference
Bore/Stroke132 x 165 mmReference
EmissionsTier IIIReference
Power354.2 kWReference
Air cleaneraspirator and dual paper elemntsReference
Compression16.0:1Reference
Rated RPM2100Reference
Starter volts12Reference
Coolant capacity66.2 LReference
Oil capacity60.0 LReference
Max power291.3 kWReference
Transmission
18-speed full power shiftReference
TransmissionJohn Deere PowerShiftReference
Typefull power shiftReference
Gears18 forward and 6 reverseReference
Clutchelectronic wet discReference
Capacities
Fuel1324.8 LReference
PTO & Hydraulics
Hydraulic system102.2 LReference
Hydraulic system106.0 LReference
Hydraulic system75.7 LReference
Hydraulic system117.3 LReference
Typeclosed-center pressure and flow compensatingReference
Capacity102.2 LReference
Capacity106.0 LReference
Capacity75.7 LReference
Capacity117.3 LReference
Pressure200.0 barReference
Valves4 to 6Reference
SCV flow113.6 lpmReference
Total flow181.7 lpmReference
Total flow295.2 lpmReference
Rear Type4N/3Reference
Rear Type4N/4Reference
Rear lift (at 24"/610mm)6940 kgReference
DrawbarCatergory 5 standard with secondary chain support.Reference
Dimensions
Weight37747 to 39845 poundsReference
Length685 cmReference
Length723 cmReference
Width301 cmReference
Shipping weight17122 kgReference
Operating weight18073 kgReference
Hinge pin Ground clearance52 cmReference
Clearance (rear axle)78 cmReference
Rear axle119 by 3048 mmReference
9530 Serial Numbers
Location:Rear-left of tractor hinge frame on early models. Right side of tractor frame, ahead of front axle, on late models.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Batteries2Reference
Battery CCA950Reference
Battery volts12Reference
John Deere 9530 Height
Hood271 cmReference
Cab360 cmReference
Exhaust396 cmReference
Test results
Diesel 18-speed 4WDOctober 29 - November 13, 2008Link: OCED Tractor Test 1924 fileReference
Drawbar performanceReference
Fuel use93.9 l/hourReference
Gear 7 used for power test.Reference
Max pull22915 kgReference
Gear 1 used for pull test.Reference
Speeds
With Group 48 tires.Reference
