Tractor · 2012Unverified

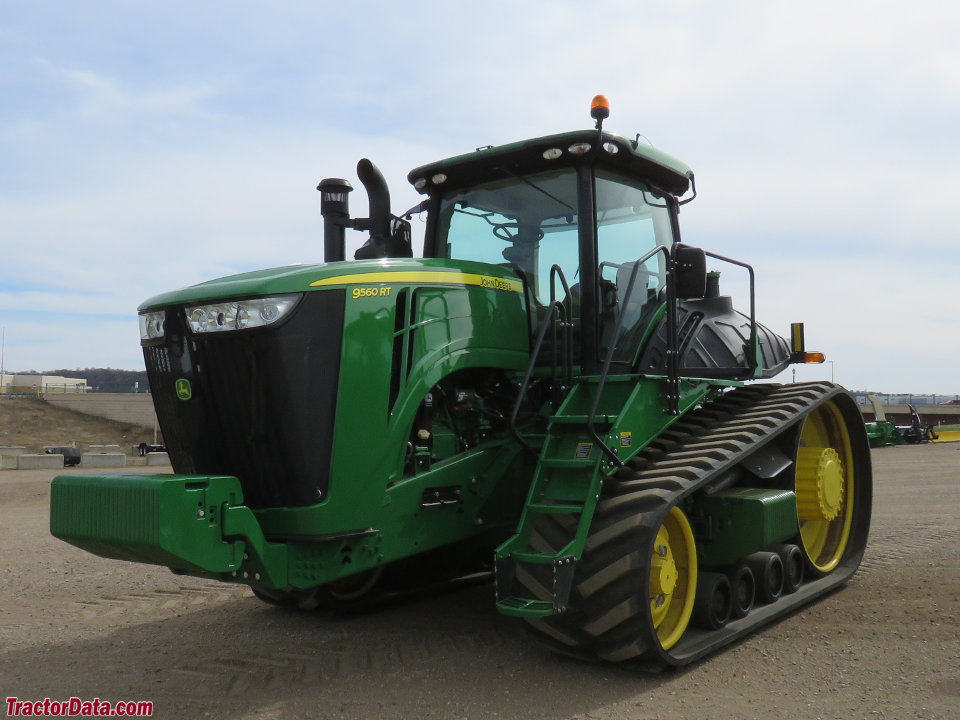

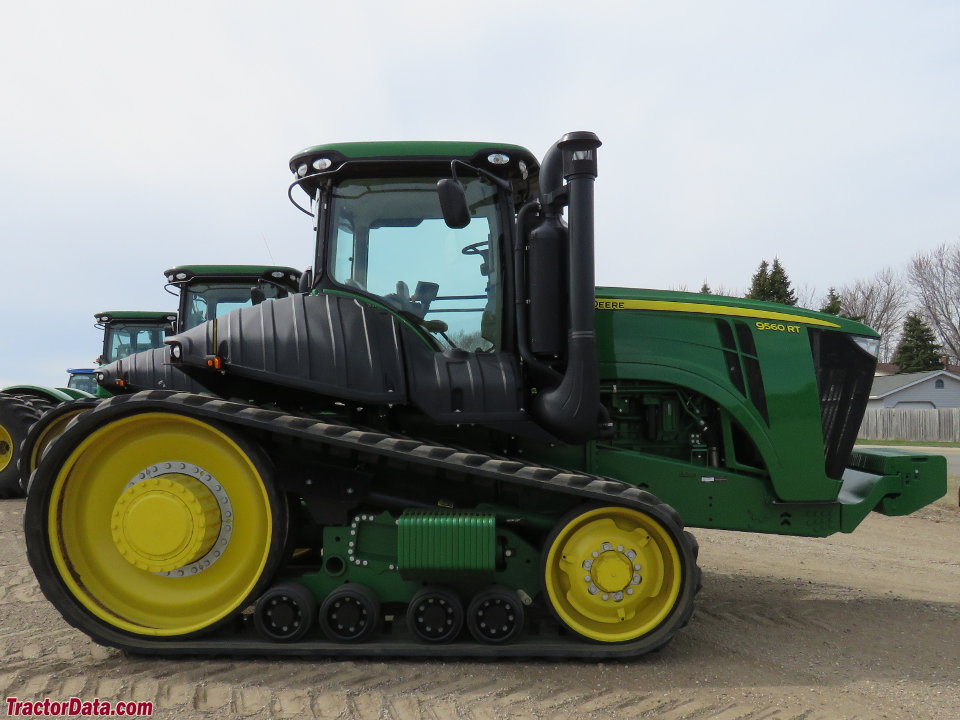

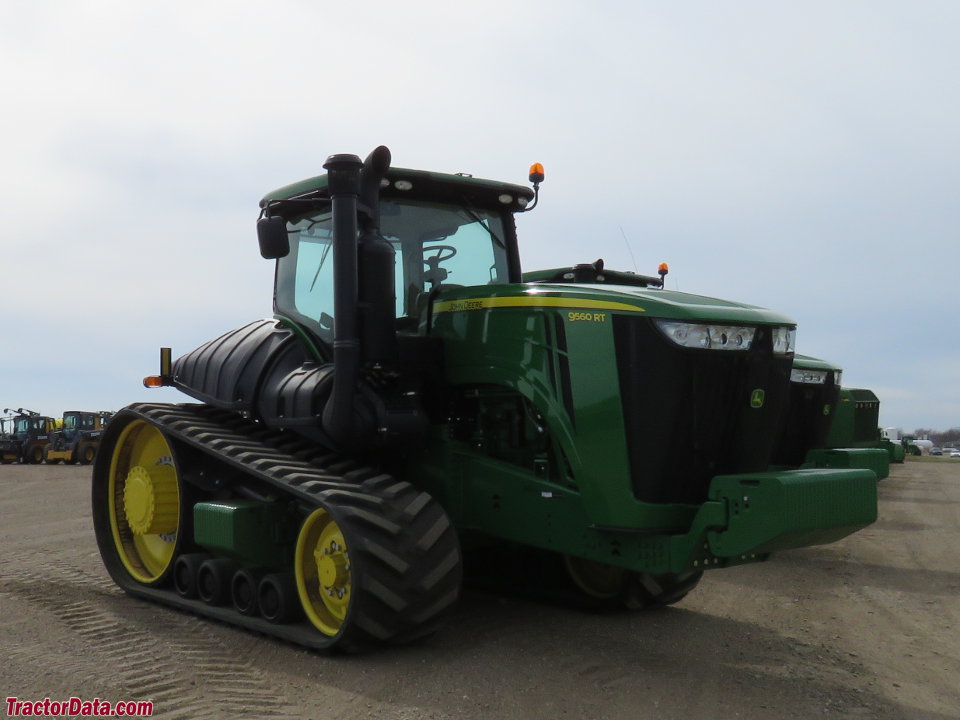

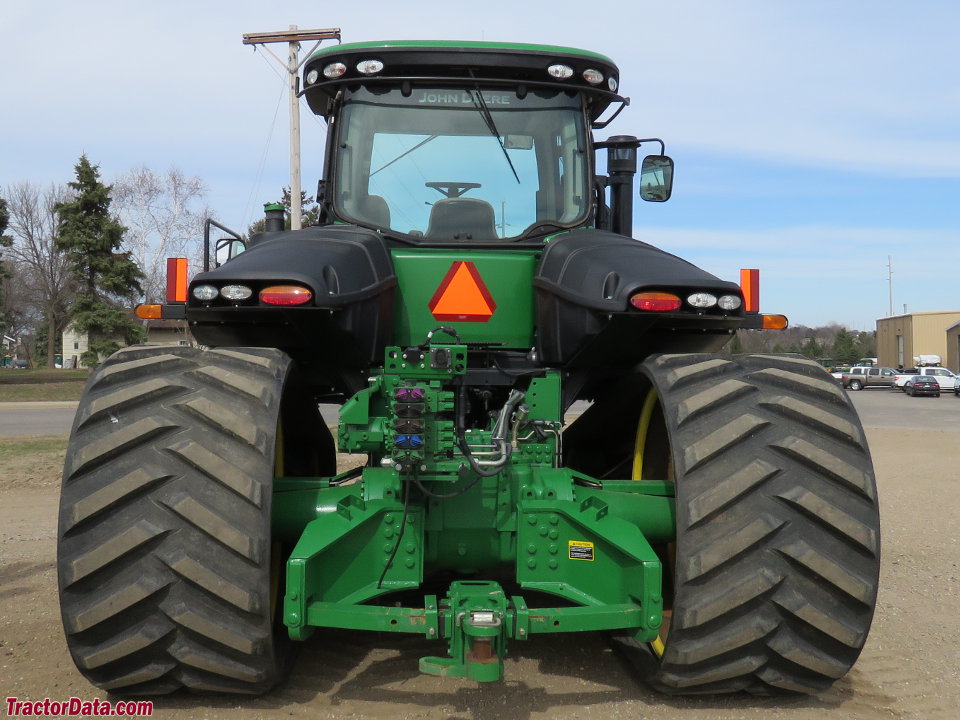

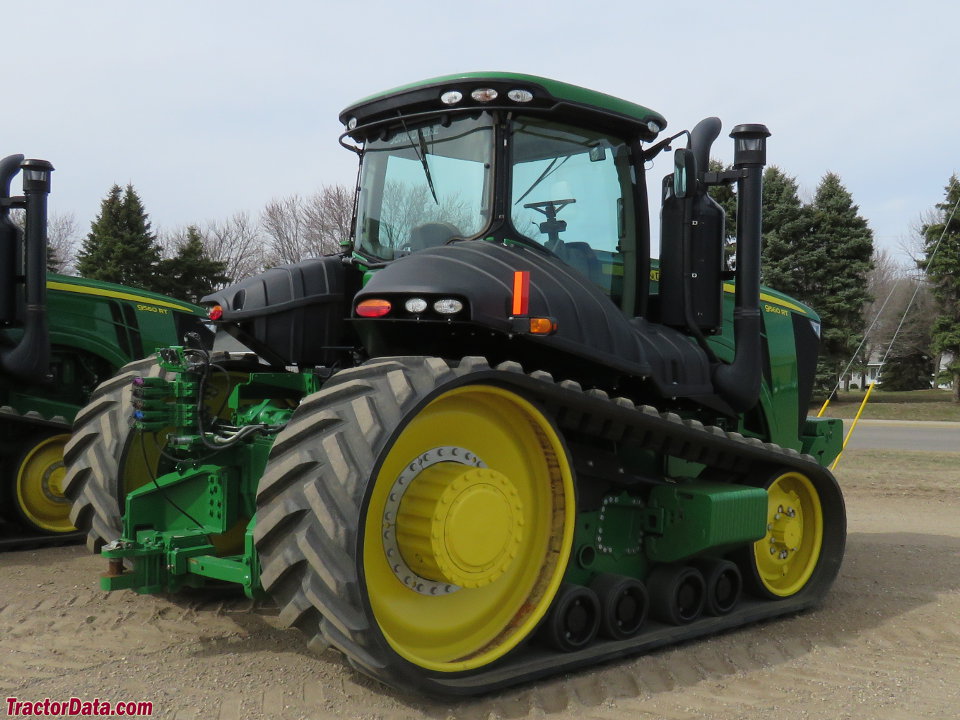

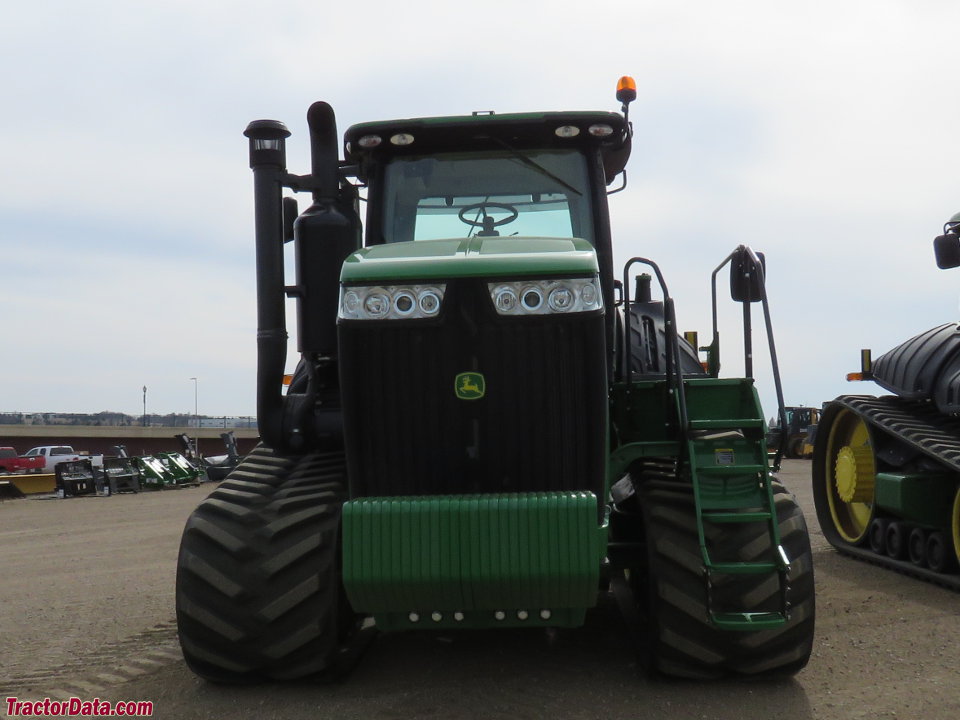

John Deere 9560RT
John Deere 9560RT — 9R/RT Series · 560 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
560 hp
Max power
264.3 kW
Weight
44910 to 47015 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Agricultural Crawler tractorReference
Built in Waterloo, Iowa, USAReference
Original price was $454,112 in 2014Reference
DrivecrawlerReference
Final drivesoutboard planetaryReference
Steeringhydrostatic power differentialReference
Hydraulic wet disc brakesReference

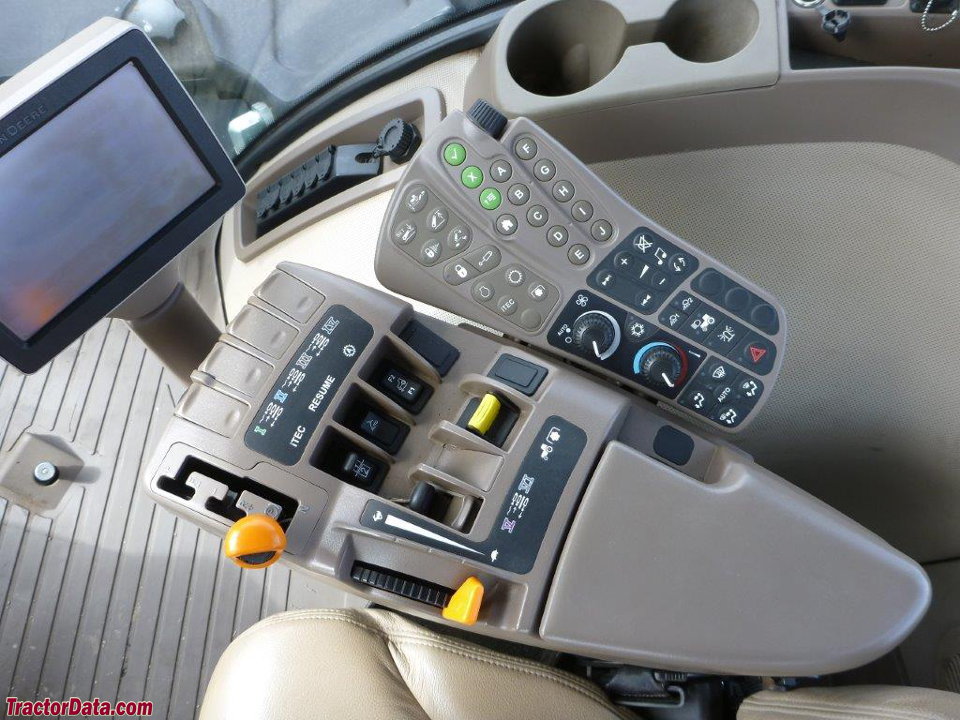

CommandView II cab standard with air-conditioning.Reference
Variants
9560R4WDReference
9560RTcrawlerReference
Engine
John Deere 13.5L 6-cyl dieselReference
Fuel tank1286.9 LReference
Engine (gross)417.6 kWReference
Engine (net)401.2 kWReference
Drawbar (tested)323.1 kWReference
John Deere PowerTech PSXReference
turbocharged dieselReference
6-cylinder 24-valveReference
liquid-cooled inlineReference
Displacement13.5 LReference
Bore/Stroke132 x 165 mmReference
EmissionsInterim Tier 4Reference
Emission controlexhaust gas recirculation (EGR)Reference
Rated Power (net)401.2 kWReference
Rated Power (gross)417.6 kWReference
Cooling systemvariable ratio belt driveReference
Compression16:1Reference
Rated RPM2100Reference
Idle RPM900-2200Reference
Operating RPM1500-2100Reference
StarterelectricReference
Starter volts12Reference
Oil capacity48.0 LReference
Coolant capacity55.1 LReference
Max power264.3 kWReference
Power at rated engine speed231.2 kWReference
Max power323.1 kWReference
Transmission
18-speed full power shiftReference
TransmissionJohn Deere PowerShiftReference
Typefull power shiftReference
Gears18 forward and 6 reverseReference
Clutchhydraulic wet discReference
PTO & Hydraulics
PTO (claimed)237.9 kWReference
PTO (tested)264.3 kWReference
Typeclosed center pressure flow compensatedReference
Pressure200.0 barReference
Valves4 to 6Reference
Pump flow181.7 lpmReference
Pump flow295.2 lpmReference
SCV flow140.0 lpmReference
SCV flow170.3 lpmReference
Rear Type4N/4Reference
Controlelectronic draft sensingReference
Rear lift6940 kgReference
Rear lift9072 kgReference
DrawbarCategory 5 wide-swing drawbar standard, rated to 4,581 kg. Optional heavy-duty kit rated to 5,440 kg.Reference
Rear PTOindependent (optional)Reference
Rear PTO Type1000 (1.75)Reference
Power at rated PTO speed258.3 kWReference
Dimensions
Wheelbase294 cmReference
Weight44910 to 47015 poundsReference
30-inch tracksReference
Length601 cmReference
Width345 cmReference
Width360 cmReference
Width396 cmReference
Height (cab)340 cmReference
Height (exhaust)393 cmReference
Shipping weight20371 kgReference
Operating weight21326 kgReference
Ground clearance40 cmReference
Clearance (drawbar)48 cmReference
9560RT Serial Number Location
On main tractor frame, front-right side.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Batteries3Reference
Battery CCA925Reference
Battery volts12Reference
John Deere 9560RT Tracks
Width76 cmReference
Test results
Diesel 18-speed crawlerOctober 12 - 23, 2012Link: OCED Tractor Test 2045 fileReference
PTO performanceReference
Fuel use77.2 l/hourReference
Fuel use77.6 l/hourReference
Fuel use78.7 l/hourReference
Drawbar performanceReference
Fuel use106.7 l/hourReference
Gear 7 used for power test.Reference
Max pull21888 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
