Tractor · 2015Unverified

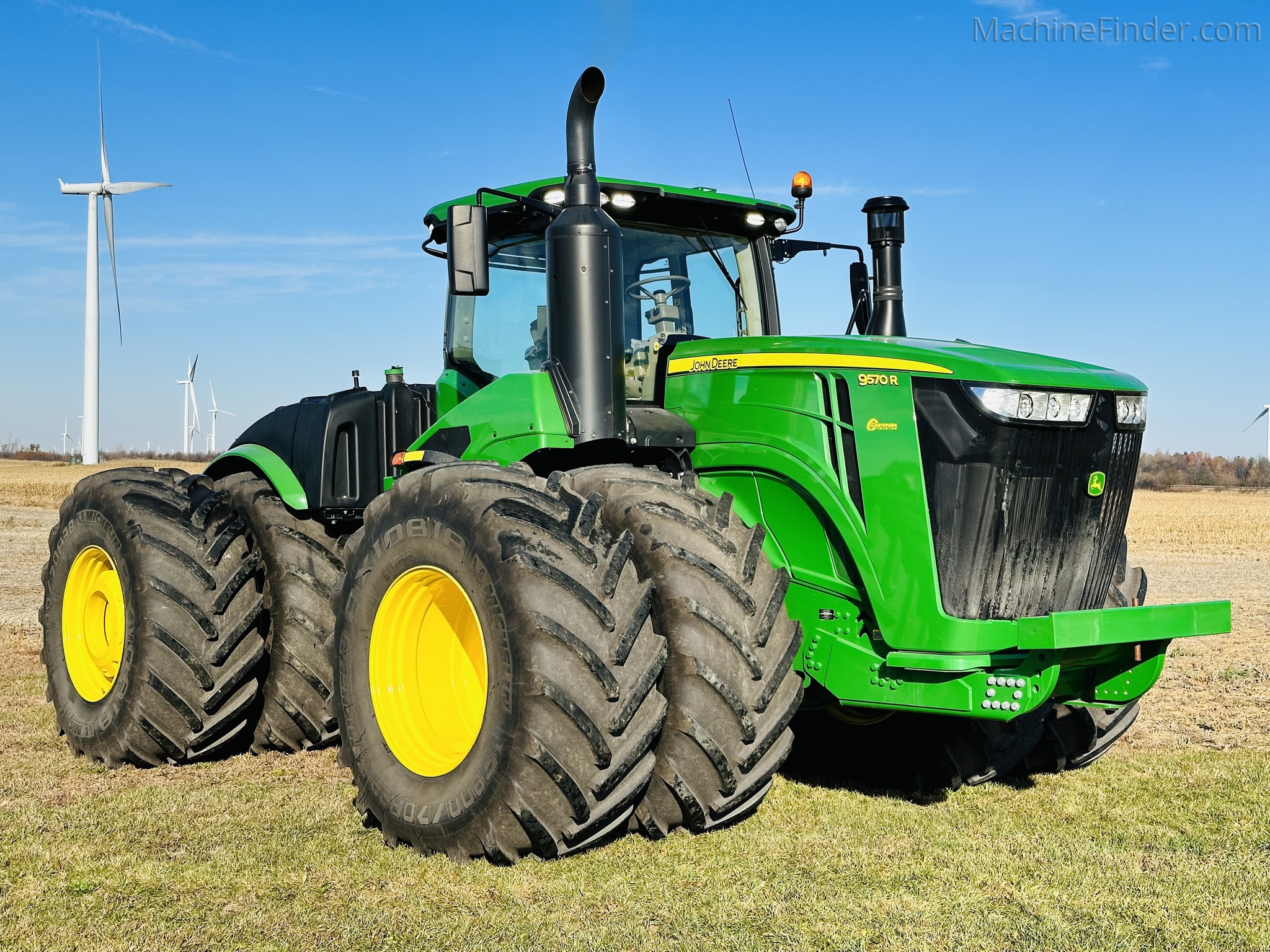

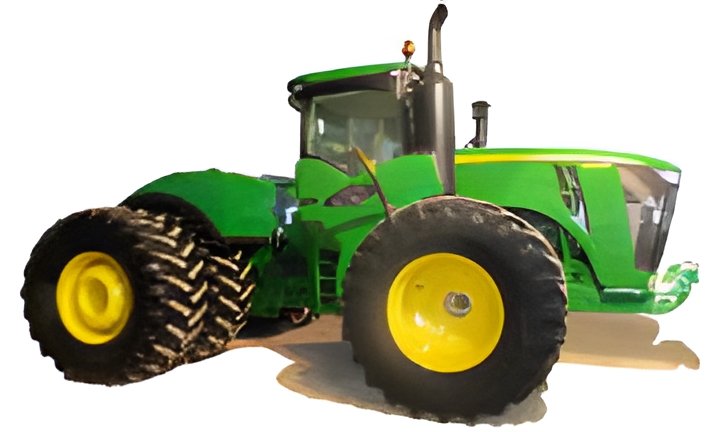

John Deere 9570R
John Deere 9570R — 9R Series · 570 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
570 hp
Weight
19754 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Four-wheel Drive (4WD) tractorReference
Built in Waterloo, Iowa, USAReference
Four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Articulated power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Command View Cab III standard with air-conditioning. AutoTrac ready; ISOBUS 11783Reference
Variants
9570Rwheeled 4WDReference
9570RTcrawlerReference
9570RXarticulated crawlerReference
Engine
Cummins 14.9L 6-cyl dieselReference
Engine (gross)425.0 kWReference
Engine (max)468.3 kWReference
Cummins QSX15Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement14.9 LReference
Bore/Stroke137 x 169 mmReference
EmissionsTier IVReference
Rated Power (gross)425.0 kWReference
Maximum Power (gross)468.3 kWReference
Fuel systemhigh pressure common railReference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Oil capacity48.0 LReference
Coolant capacity83.0 LReference
Transmission
18-speed full power shiftReference
Transmissione18 PowerShiftReference
Typefull power shiftReference
Gears18 forward and 6 reverseReference
Oil capacity220.0 LReference
Oil capacity227.0 LReference
PTO & Hydraulics
PTO (claimed)249.8 kWReference
Hydraulic system219.5 LReference
Hydraulic system227.1 LReference
Typeclosed-center pressure/flow compensatedReference
Capacity219.5 LReference
Capacity227.1 LReference
Pressure200.0 barReference
Rear valves4 to 8Reference
Pump flow219.5 lpmReference
Pump flow435.3 lpmReference
SCV flow132.5 lpmReference
SCV flow159.0 lpmReference
Rear TypeIV/IVNReference
Controldraft sensingReference
Rear lift6804 kgReference
Rear lift9072 kgReference
DrawbarCat. 5Reference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type1000 (1.75)Reference
Capacities
Fuel1514.0 LReference
Exhaust fluid (DEF)83.3 LReference
Dimensions
Wheelbase391 cmReference
Weight19754 kgReference
Length811 cmReference
Width490 cmReference
Clearance (drawbar)38 cmReference
Front axle119 by 3048 mmReference
Front axle119 by 3048 mmReference
Rear axle119 by 3048 mmReference
Shipping19754 kgReference
Ballasted27216 kgReference
Max Drawbar5443 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Charging amps240Reference
Charging volts12Reference
Batteries4Reference
Battery CCA925Reference
Battery volts12Reference
John Deere 9570R Height
Hood274 cmReference
Cab368 cmReference
Exhaust414 cmReference
Speeds
With group 47 (710/70R38) tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
