Tractor · 2015Unverified

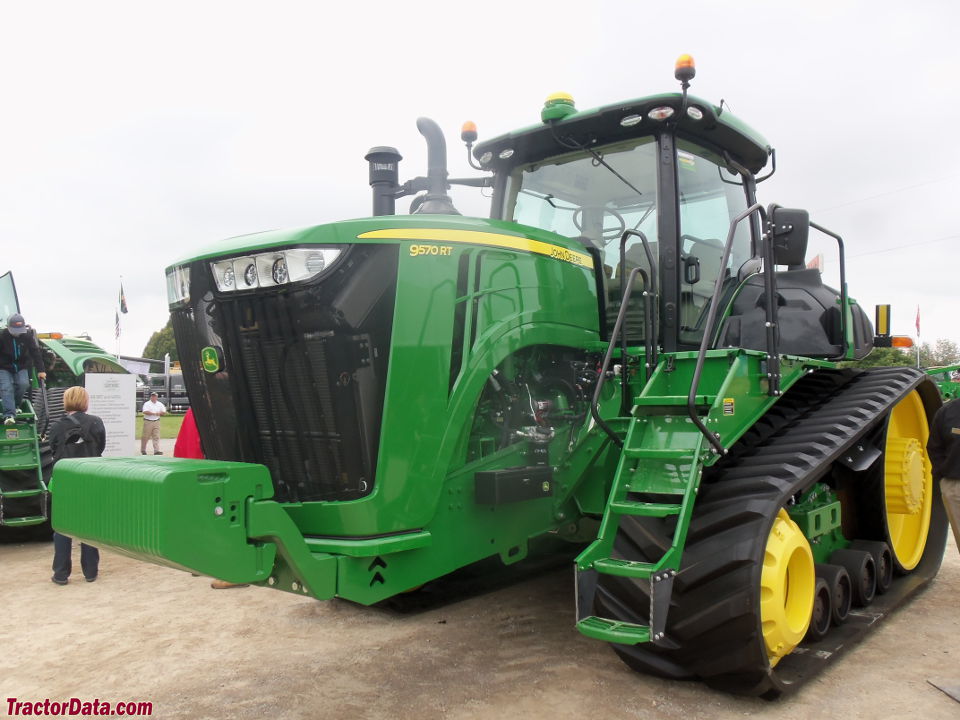

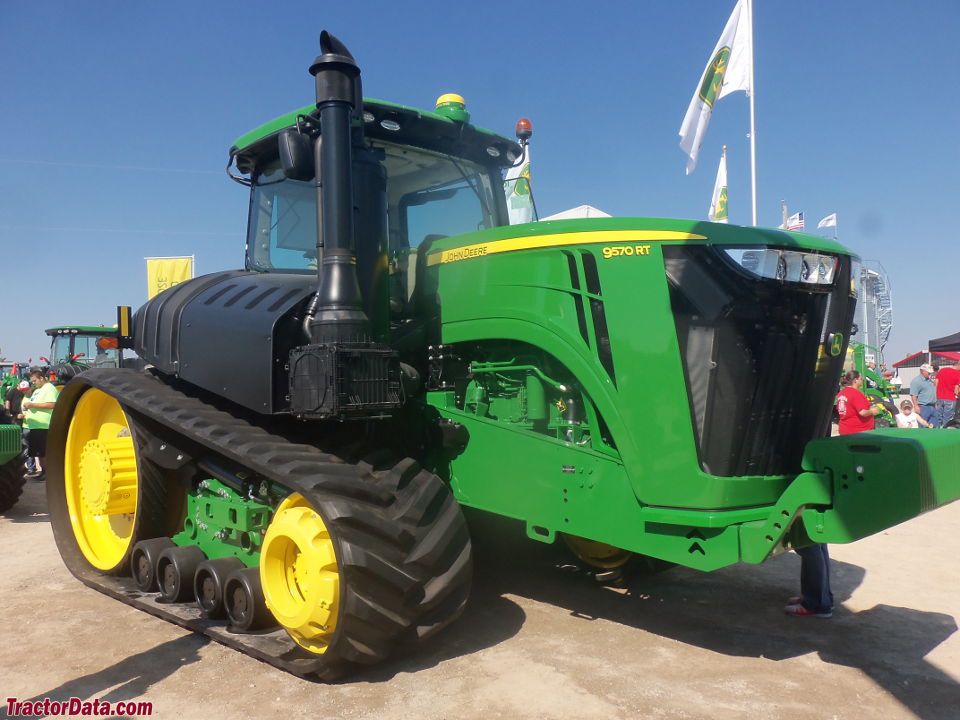

John Deere 9570RT

Name: John Deere 9570RT
Brand: John Deere

John Deere 9570RT — 9R Series · 570 hp. Reference specifications; pending source verification.

The John Deere 9570RT is a high-powered tractor, with a rating of 570 hp, positioning it among the more powerful machines in its class. Manufactured in 2015, the 9570RT features a 6-cylinder turbocharged diesel liquid-cooled engine, which drives a four-wheel drive system through a powershift transmission. The tractor's listed weight is 20371 kg, and it is suitable for tasks covering around 1,500+ acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

570 hp

Weight

20371 kg

Catalogue coverage

Variants represented

Richest spec table

67 rows

Recorded power

570 hp

Recorded weight

20371 kg

Transmissions

18-speed full power shift

Production years

2015-2015

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Agricultural Crawler tractorReference

Built in Waterloo, Iowa, USAReference

DrivecrawlerReference

Power steeringReference

Hydraulic wet disc brakesReference

Trailer brakeshydraulicReference

Command View Cab III standard with air-conditioning. AutoTrac ready; ISOBUS 11783; JDLink readyReference

Variants

9570Rwheeled 4WDReference

9570RTcrawlerReference

9570RXarticulated crawlerReference

Engine

Cummins 14.9L 6-cyl dieselReference

Engine (gross)425.0 kWReference

Engine (max)468.3 kWReference

Cummins QSXReference

variable geometry turbocharger dieselReference

6-cylinderReference

liquid-cooledReference

Displacement14.9 LReference

Bore/Stroke137 x 169 mmReference

EmissionsTier IVReference

Emission controlselective catalytic reductionReference

Rated Power (gross)425.0 kWReference

Maximum Power (gross)468.3 kWReference

Compression17.2:1Reference

Rated RPM2100Reference

StarterelectricReference

Starter volts12Reference

Transmission

18-speed full power shiftReference

Transmissione18 PowerShiftReference

Typefull power shiftReference

Gears18 forward and 6 reverseReference

PTO & Hydraulics

PTO (claimed)245.3 kWReference

Hydraulic system300.2 LReference

Hydraulic system307.7 LReference

Typeclosed-center pressure/flow compensatedReference

Capacity300.2 LReference

Capacity307.7 LReference

Pressure200.0 barReference

Rear valves4 to 8Reference

Pump flow219.5 lpmReference

Pump flow435.3 lpmReference

SCV flow132.5 lpmReference

SCV flow159.0 lpmReference

Rear TypeIV/IVNReference

Rear lift6804 kgReference

Rear lift9072 kgReference

DrawbarCat. 5 HDReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type1000 (1.75)Reference

Capacities

Fuel1324.8 LReference

Exhaust fluid (DEF)83.3 LReference

Dimensions

Weight20371 kgReference

30-inch tracksReference

Shipping20371 kgReference

Ballasted24494 kgReference

Max Drawbar5443 kgReference

Max Drawbar4581 kgReference

9570RT Serial Number Location

On main tractor frame, front-right side.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Batteries4Reference

Battery CCA925Reference

Battery volts12Reference

John Deere 9570RT Tracks

Width76 cmReference

Width91 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
