Tractor · 2016Unverified

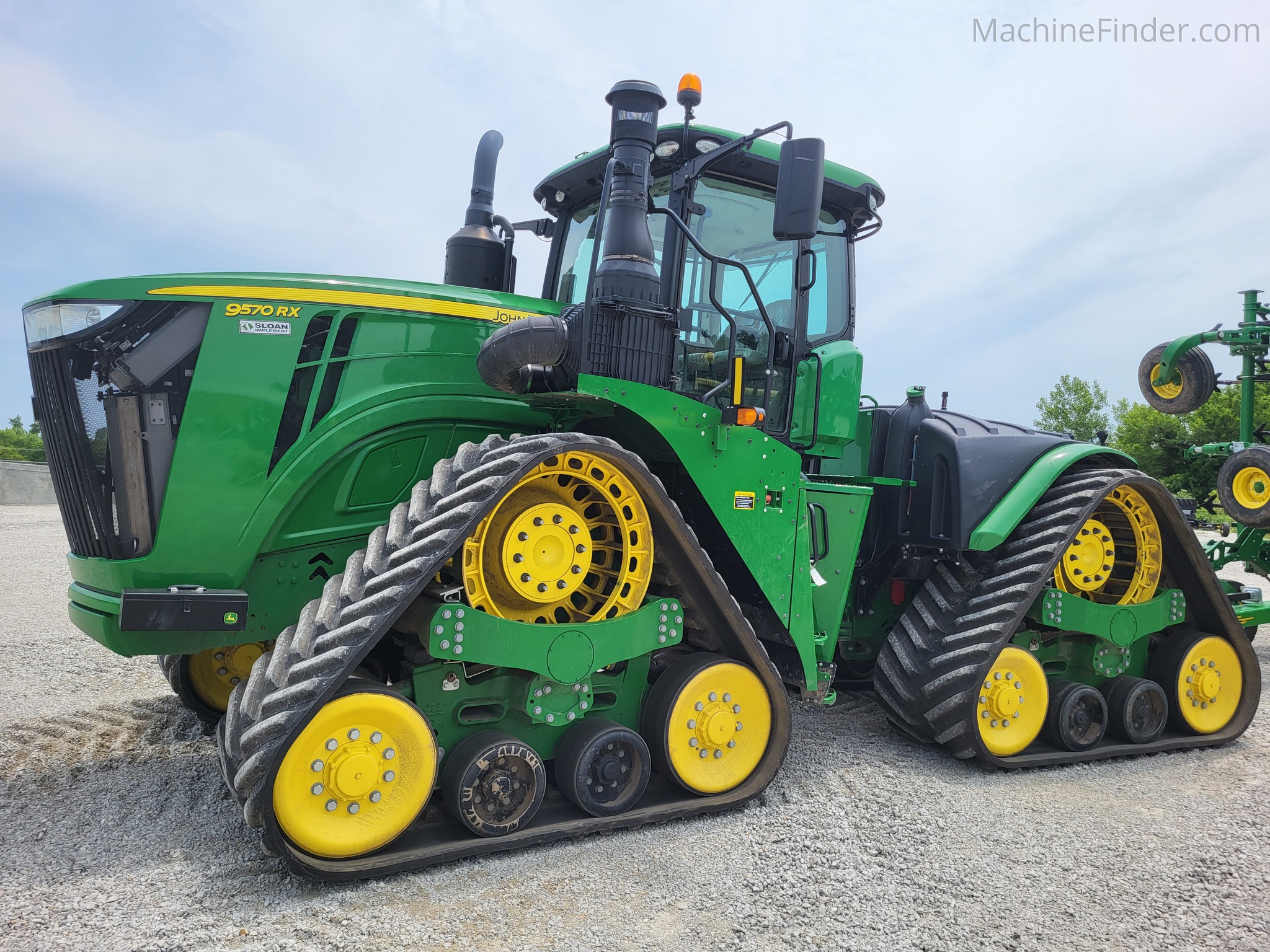

John Deere 9570RX
John Deere 9570RX — 9R Series · 570 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
570 hp
Max power
265.4 kW
Weight
25174 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Articulated Crawler tractorReference
Built in Waterloo, Iowa, USAReference
Original price was $549,072 in 2015Reference
Drivearticulated-crawlerReference
CommandView III cab standard with suspension and air-conditioning. AutoTrac ready; ISOBUS 11783; JDLink readyReference
Variants
9570Rwheeled 4WDReference
9570RTcrawlerReference
9570RXarticulated crawlerReference
Engine
Cummins 14.9L 6-cyl dieselReference
Fuel tank1514.0 LReference
Exhaust fluid (DEF)83.3 LReference
Engine (gross)425.0 kWReference
Drawbar (tested)333.0 kWReference
Cummins QSX15Reference
variable geometry turbocharger dieselReference
6-cylinderReference
liquid-cooledReference
Displacement14.9 LReference
Bore/Stroke137 x 169 mmReference
EmissionsTier IVReference
Emission controlselective catalytic reduction, exhaust-gas recirculation, and diesel particulate filterReference
Rated Power (gross)425.0 kWReference
StarterelectricReference
Starter volts12Reference
Max power265.4 kWReference
Power at rated engine speed238.9 kWReference
Max power333.0 kWReference
Transmission
18-speed full power shiftReference
Transmissione18 PowerShiftReference
Typefull power shiftReference
Gears18 forward and 6 reverseReference
PTO & Hydraulics
PTO (tested)265.4 kWReference
Typeclosed-center pressure/flow compensatedReference
Valves4 to 8Reference
Pump flow219.5 lpmReference
Pump flow435.3 lpmReference
SCV flow132.5 lpmReference
SCV flow159.0 lpmReference
Rear TypeIV/IVNReference
Rear lift6804 kgReference
Rear lift9072 kgReference
DrawbarCat. 5 HDReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type1000 (1.75)Reference
Power at rated PTO speed259.3 kWReference
Dimensions
Wheelbase415 cmReference
Weight25174 kgReference
30-inch tracksReference
Length817 cmReference
Width297 cmReference
Width312 cmReference
Height (exhaust)412 cmReference
Clearance (drawbar)40 cmReference
Shipping25174 kgReference
Max Drawbar5443 kgReference
9570RX Serial Numbers
Location:The John Deere 9570RX serial number plate on the right side of the tractor frame, just ahead of the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Charging amps240Reference
Charging volts12Reference
Batteries4Reference
Battery CCA925Reference
Battery volts12Reference
John Deere 9570RX Tracks
Width76 cmReference
Width91 cmReference
Capacities
Max capacity28123 kgReference
Test results
Diesel 18-speed crawlerApril 7 - 19, 2017Link: OCED Tractor Test 2173 fileReference
PTO performanceReference
Fuel use72.7 l/hourReference
Fuel use74.6 l/hourReference
Fuel use75.7 l/hourReference
Drawbar performanceReference
Fuel use107.9 l/hourReference
Gear 7 used for power test.Reference
Max pull21965 kgReference
Gear 2 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
