Tractor · 2004Unverified

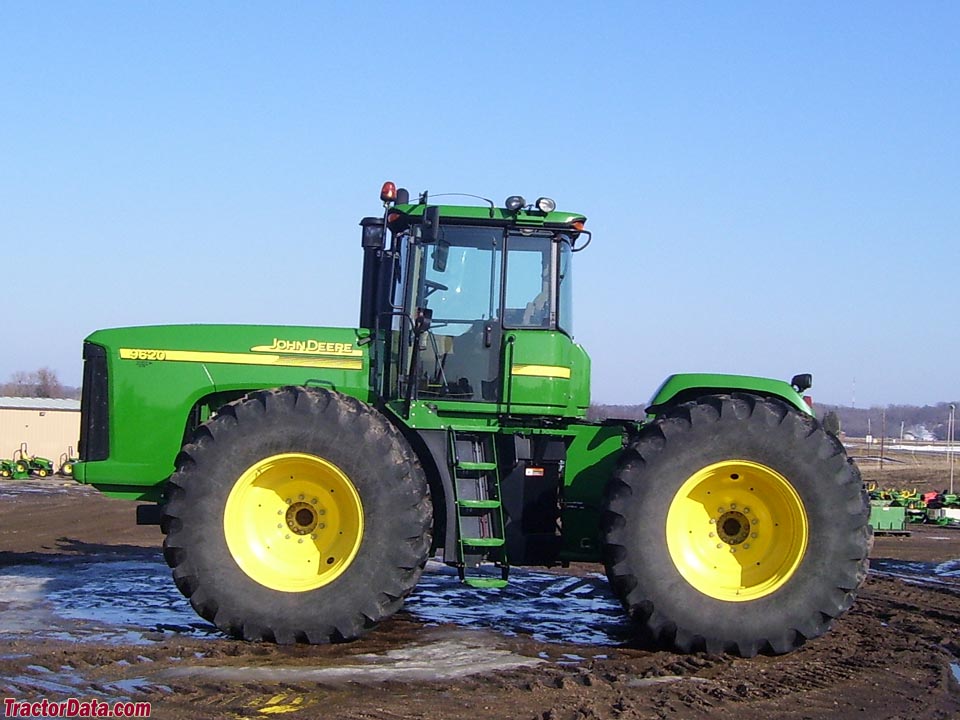

John Deere 9620

Name: John Deere 9620
Brand: John Deere

John Deere 9620 — Four-wheel Drive (4WD) tractor · 333 hp. Reference specifications; pending source verification.

The John Deere 9620 is a tractor with a rated power of 333 hp, placing it at the more powerful end of its class. Production of the model occurred between 2004 and 2007. It is equipped with a 6-cylinder turbocharged diesel liquid-cooled engine, which is paired with four-wheel drive and a hydrostatic transmission. The listed operating weight of the tractor ranges from 36090 to 39100 pounds, and it is suitable for operations covering 1,500+ acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

333 hp

Max power

280.9 kW

Weight

36090 to 39100 pounds

Catalogue coverage

Variants represented

Richest spec table

113 rows

Recorded power

333 hp

Transmissions

18-speed full power shift

Production years

2004-2007

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Four-wheel Drive (4WD) tractorReference

Built in Waterloo, Iowa, USAReference

Four-wheel driveReference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

CommandView cab standard with air-conditioning.Reference

Variants

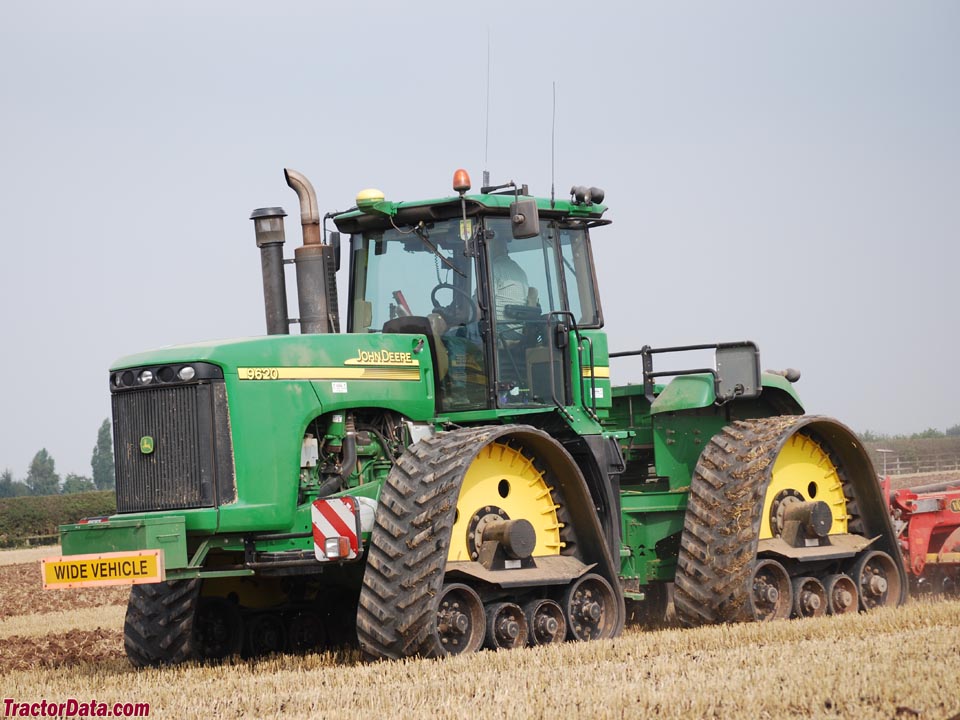

9620Tcrawler tractorReference

Engine

John Deere 12.5L 6-cyl dieselReference

Engine372.9 kWReference

Drawbar (tested)296.4 kWReference

John DeereReference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement12.5 LReference

Bore/Stroke127 x 165 mmReference

Power372.9 kWReference

Air cleanerdual paper elementsReference

Compression14.7:1Reference

Rated RPM2100Reference

Torque1678.7 NmReference

Torque RPM1252Reference

Starter volts12Reference

Oil capacity41.6 LReference

Max power280.9 kWReference

Power at rated engine speed248.4 kWReference

Max power296.4 kWReference

Transmission

18-speed full power shiftReference

TransmissionJohn Deere PowershiftReference

Typefull power shiftReference

Gears18 forward and 6 reverseReference

PTO & Hydraulics

PTO (claimed)235.6 kWReference

PTO (tested)280.9 kWReference

Hydraulic system102.2 LReference

Hydraulic system106.0 LReference

Hydraulic system113.6 LReference

Hydraulic system117.3 LReference

Typeclosed center pressure/flow compensatedReference

Capacity102.2 LReference

Capacity106.0 LReference

Capacity113.6 LReference

Capacity117.3 LReference

Valves4 or 5Reference

Pump flow113.6 lpmReference

Total flow181.7 lpmReference

Total flow295.2 lpmReference

Rear TypeIIIReference

Rear TypeIV/IVNReference

Rear lift6291 kgReference

Rear lift6552 kgReference

Rear PTOindependentReference

Rear PTO Type1000Reference

Power at rated PTO speed276.4 kWReference

Capacities

Fuel1022.0 LReference

Dimensions

Wheelbase350 cmReference

Weight36090 to 39100 poundsReference

Front tire800/70R38Reference

Rear tire800/70R38Reference

Ag front800/70R38Reference

Ag rear800/70R38Reference

Ag front480/80R46Reference

Ag front20.8R42Reference

Ag front520/85R42Reference

Ag front620/70R42Reference

Ag front710/70R38Reference

Ag front480/80R50Reference

Ag front520/85R46Reference

Ag front620/70R46Reference

Ag front710/70R42Reference

Ag rear480/80R46Reference

Ag rear20.8R42Reference

Ag rear520/85R42Reference

Ag rear620/70R42Reference

Ag rear710/70R38Reference

Ag rear480/80R50Reference

Ag rear520/85R46Reference

Ag rear620/70R46Reference

Ag rear710/70R42Reference

Length695 cmReference

Length734 cmReference

Width293 cmReference

Clearance (front axle)73 cmReference

Clearance (drawbar)43 cmReference

Shipping16370 kgReference

Operating17735 kgReference

Ballasted22700 kgReference

9620 Serial Numbers

Location:On the top-left of rear hinge memberReference

200420001Reference

200530001Reference

200640001Reference

200750001Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps140Reference

Batteries3Reference

Battery CCA925Reference

Battery volts12Reference

John Deere 9620 Height

Hood247 cmReference

Cab349 cmReference

Exhaust355 cmReference

Test results

Diesel 18-speed 4WDNovember 2 - 18, 2004Link: OCED Tractor Test 1844 fileReference

PTO performanceReference

Fuel use82.9 l/hourReference

Fuel use71.2 l/hourReference

Fuel use75.7 l/hourReference

Drawbar performanceReference

Fuel use90.5 l/hourReference

Gear 7 used for power test.Reference

Max pull23222 kgReference

Gear 1 used for pull test.Reference

Speeds

With 800/70R38 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
