Tractor · 2015Unverified

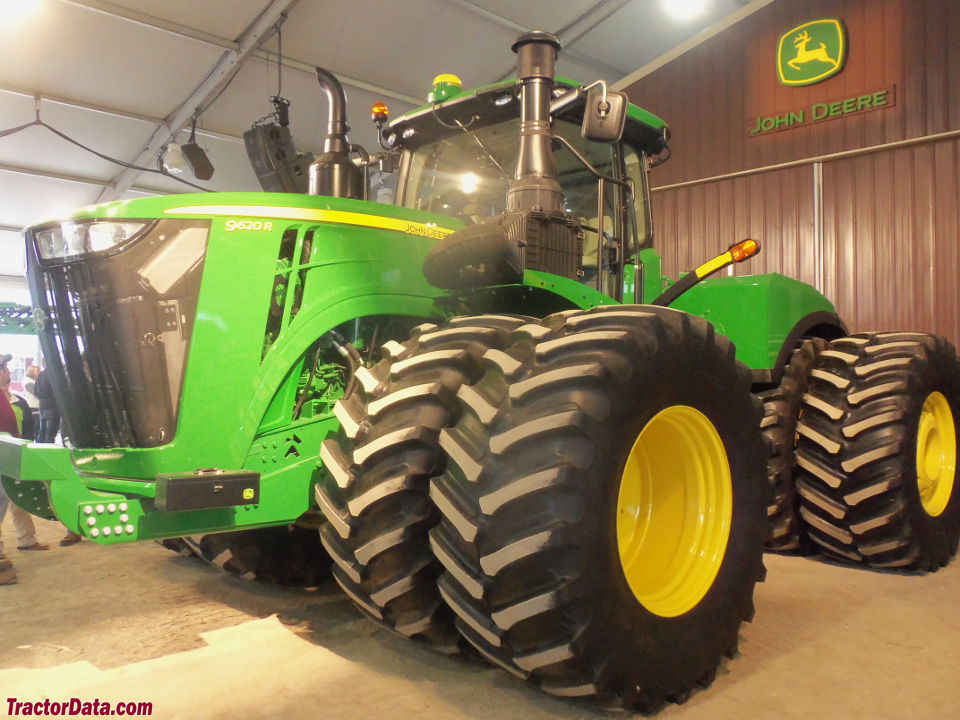

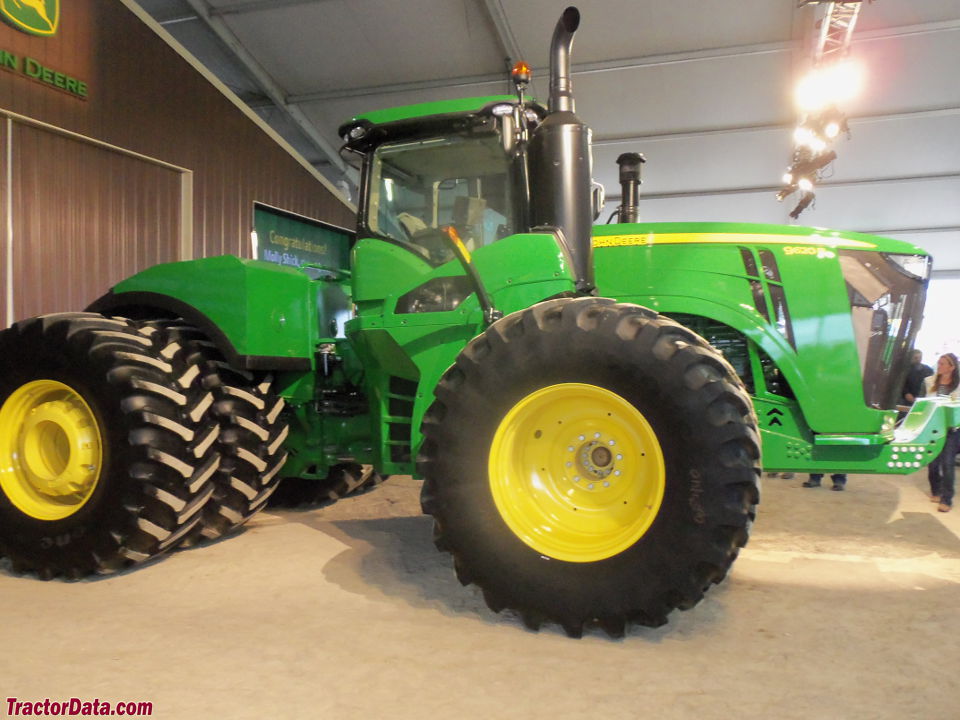

John Deere 9620R

Name: John Deere 9620R
Brand: John Deere

John Deere 9620R — 9R Series · 620 hp. Reference specifications; pending source verification.

The John Deere 9620R is a tractor model rated at 620 hp, positioning it among the higher-powered machines in its class. Manufactured from 2015 to 2021, this model features a 6-cylinder diesel liquid-cooled engine, which drives through a four-wheel drive system via a powershift transmission. The listed weight is 19,754 kg, and it is designed to handle large-scale farming jobs of approximately 1,500 acres or more.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

620 hp

Max power

670 hp

Weight

19754 kg

Catalogue coverage

Variants represented

Richest spec table

117 rows

Recorded power

620 hp

Recorded weight

19754 kg

Transmissions

18-speed full power shift

Production years

2015-2021

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Four-wheel Drive (4WD) tractorReference

Built in Waterloo, Iowa, USAReference

Four-wheel driveReference

Differential lockelectro-hydraulic front and rearReference

Articulated power steeringReference

Hydraulic wet disc brakesReference

Trailer brakeshydraulicReference

Command View Cab III standard with air-conditioning. AutoTrac ready; ISOBUS 11783; JDLink readyReference

Variants

9620Rwheeled 4WDReference

9620RXarticulated crawlerReference

Engine

Cummins 14.9L 6-cyl dieselReference

Engine (gross)462.3 kWReference

Engine (max)499.6 kWReference

Cummins QSX15Reference

dieselReference

6-cylinderReference

liquid-cooledReference

Displacement14.9 LReference

Bore/Stroke137 x 169 mmReference

EmissionsTier IVReference

Rated Power (gross)462.3 kWReference

Maximum Power (gross)499.6 kWReference

Fuel systemhigh pressure common railReference

Rated RPM2100Reference

StarterelectricReference

Starter volts12Reference

Oil capacity43.5 LReference

Coolant capacity83.0 LReference

Fuel TypedieselReference

No of Cylinders6 cylinderReference

Rated engine speed2,100 RPMReference

Emissions complianceTier IVReference

Bore and stroke5.39x6.65 inchesReference

Cooling systemliquid-cooledReference

Transmission

18-speed full power shiftReference

Transmissione18 PowerShiftReference

Typefull power shiftReference

Gears18 forward and 6 reverseReference

Oil capacity220.0 LReference

Oil capacity227.0 LReference

Transmission TypePowershiftReference

forward and reverse optionse18 PowerShift | 18F and 6RReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)249.8 kWReference

Hydraulic system219.5 LReference

Hydraulic system227.1 LReference

Typeclosed-center pressure/flow compensatedReference

Capacity219.5 LReference

Capacity227.1 LReference

Pressure200.0 barReference

Rear valves4 to 8Reference

Pump flow219.5 lpmReference

Pump flow435.3 lpmReference

SCV flow132.5 lpmReference

SCV flow159.0 lpmReference

Rear TypeIV/IVNReference

Controldraft sensingReference

Rear lift6804 kgReference

Rear lift9072 kgReference

DrawbarCat. 5Reference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type1000 (1.75)Reference

Capacities

Fuel1514.0 LReference

Exhaust fluid (DEF)83.3 LReference

Fuel tank1,514.2 LReference

Diesel exhaust fluid (DEF) tank83.3 LReference

Crankcase oil volume46 qtsReference

Dimensions

Wheelbase391 cmReference

Weight19754 kgReference

Length811 cmReference

Width490 cmReference

Clearance (drawbar)38 cmReference

Front axle119 by 3048 mmReference

Rear axle119 by 3048 mmReference

Shipping19754 kgReference

Ballasted27216 kgReference

Max Drawbar5443 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps200Reference

Charging amps240Reference

Charging volts12Reference

Batteries4Reference

Battery CCA925Reference

Battery volts12Reference

Total cold cranking amps925 ampsReference

John Deere 9620R Height

Hood274 cmReference

Cab368 cmReference

Exhaust414 cmReference

Speeds

With group 47 (710/70R38) tires.Reference

General

Make & ModelJohn DeereReference

Drawbar categoryCat. 5Reference

Front Axle TypeHydraCushion suspensionReference

Country of manufacturerUSAReference

Power

Max Power670 hpReference

Rated Power620 hpReference

PTO

PTO Power335 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Steering & brakes

BrakesHydraulic wet disc brakesReference

Steering typeArticulated power steeringReference

Hydraulics

Hydraulics Typeclosed-center pressure/flow compensatedReference

Maximum operating pressure2,900 psiReference

Remote Valves4 to 8Reference

Rear Hitch category (SAE designation)Category IV/IVN optReference

Rear Hitch maximum lift capacity9,071.8 kgReference

Rear Hitch Sensing Typedraft sensingReference

Dimensions & weight

Height Over Cab368.3 cmReference

Overall Length811.5 cmReference

Overall Width490.2 cmReference

Drawbar clearance38.1 cmReference

Overall weight19,753.9 kgReference

Operator station

Cab AvailabilityAvailableReference

Cab Air conditioning, temperature differentialCab available with Air ConditionerReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
