Tractor · 2016Unverified

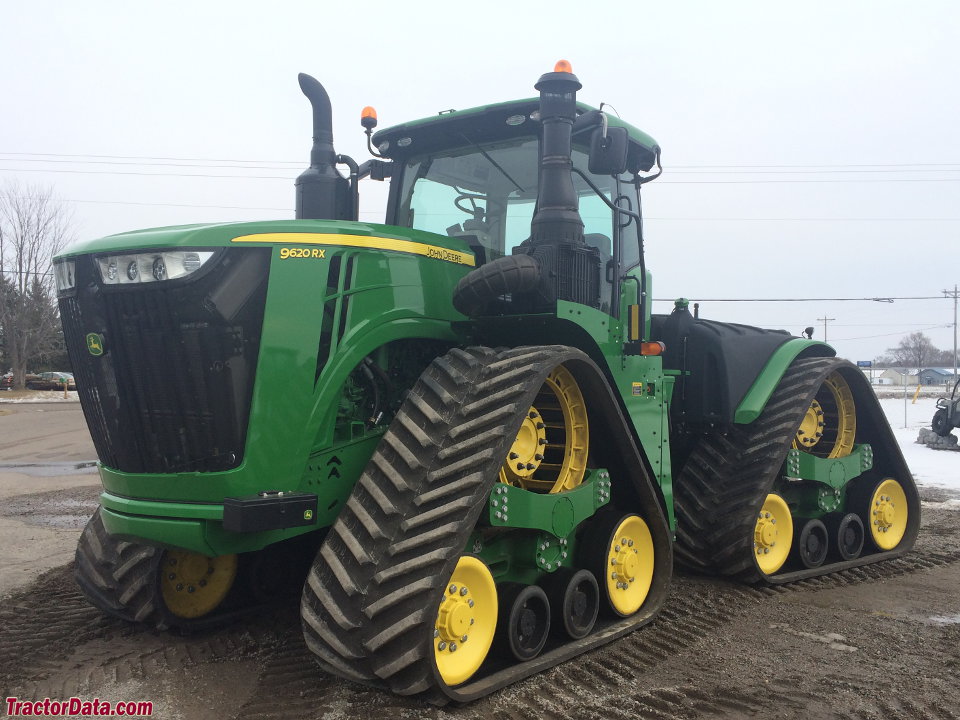

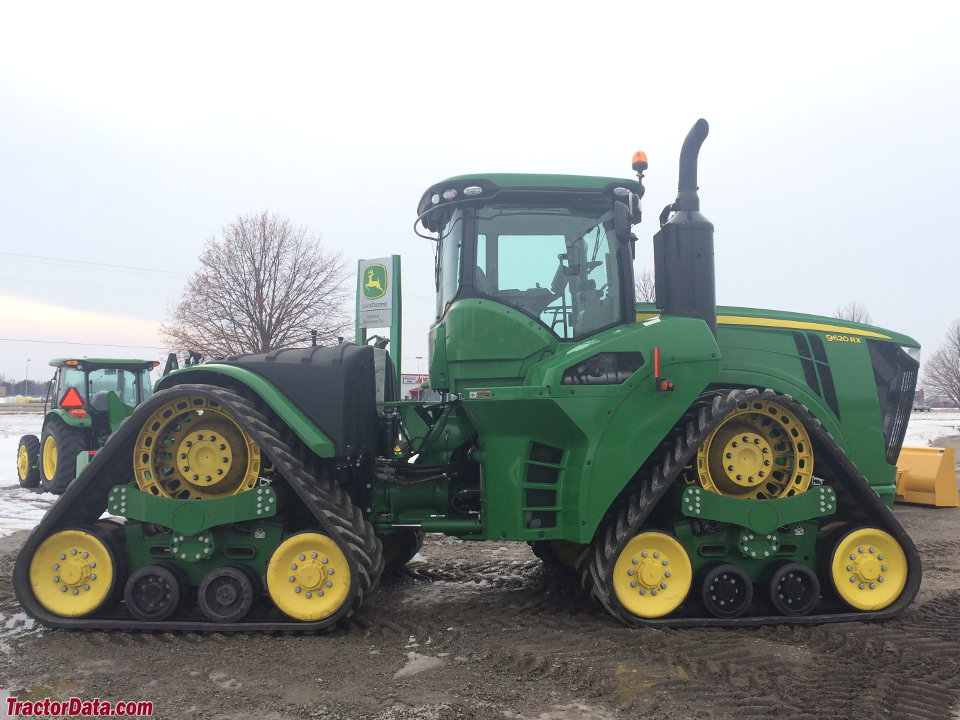

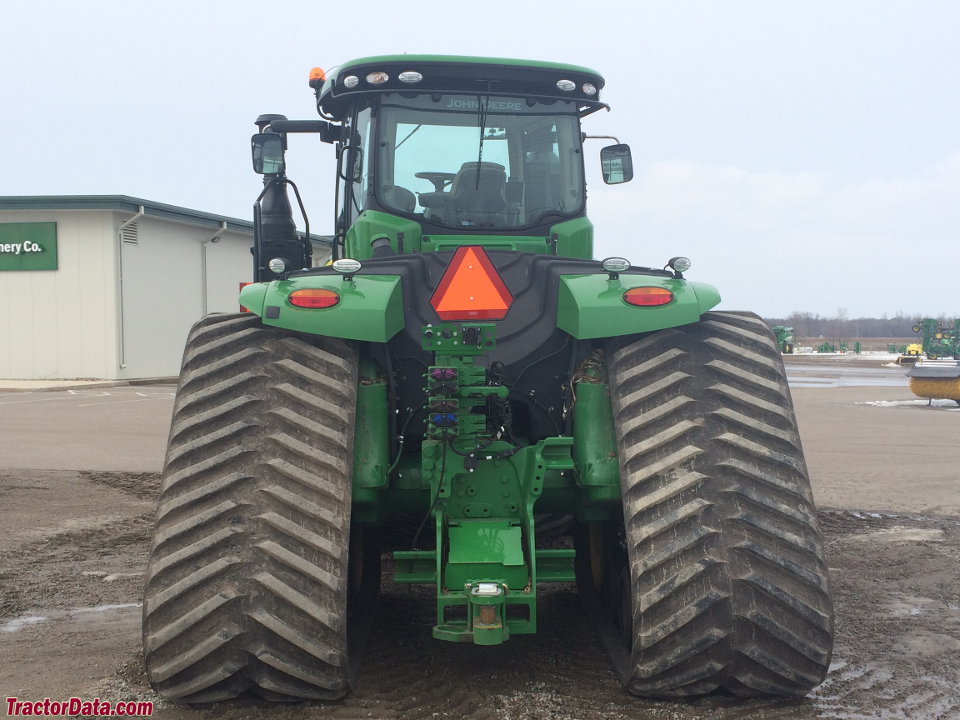

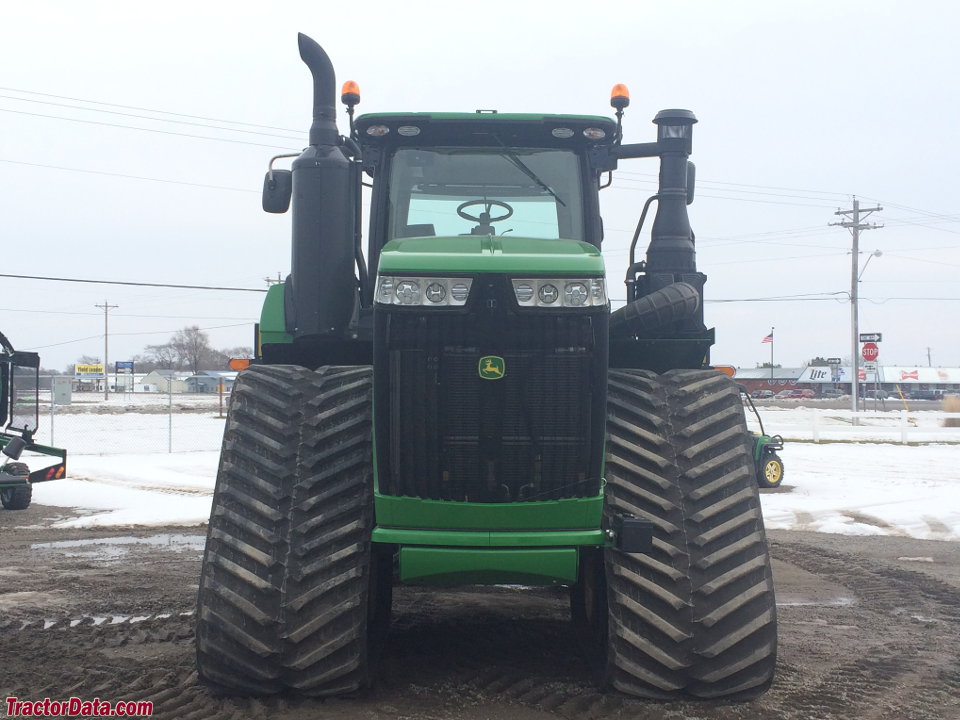

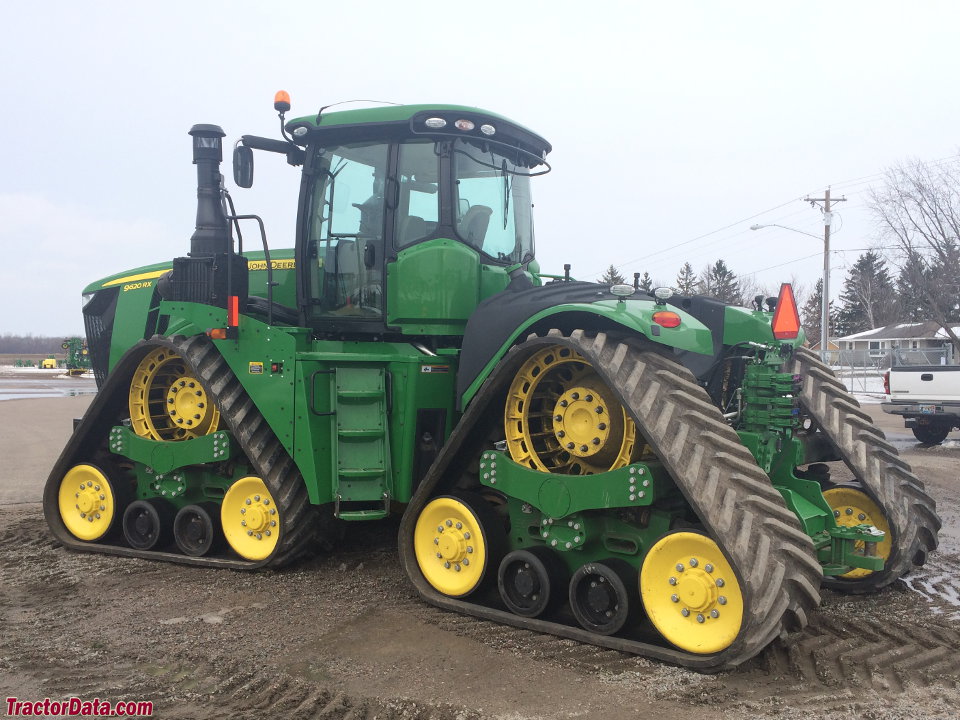

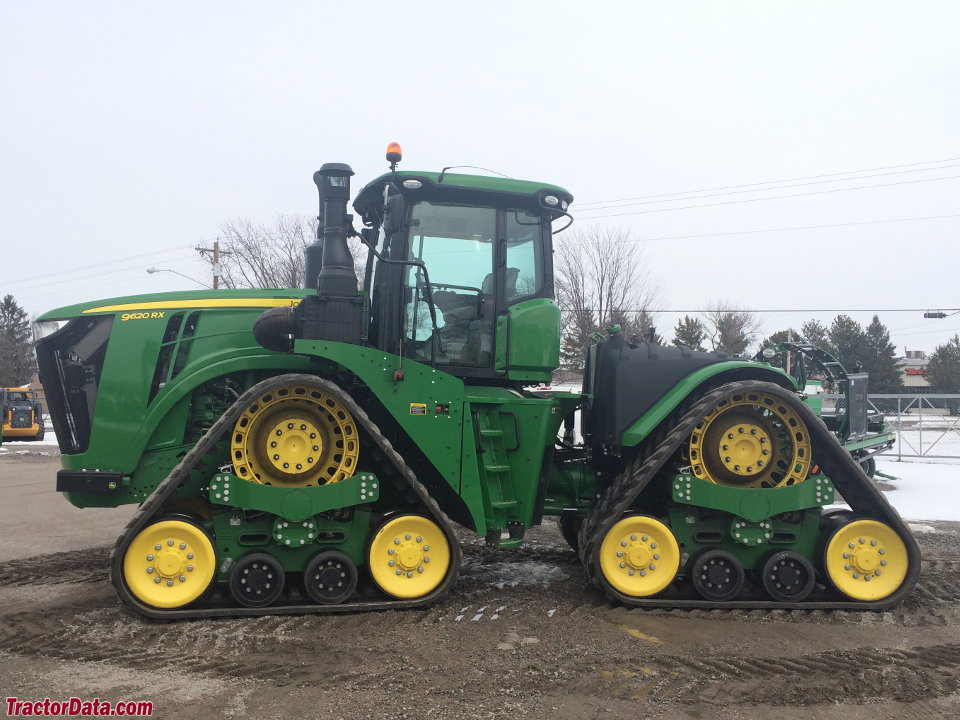

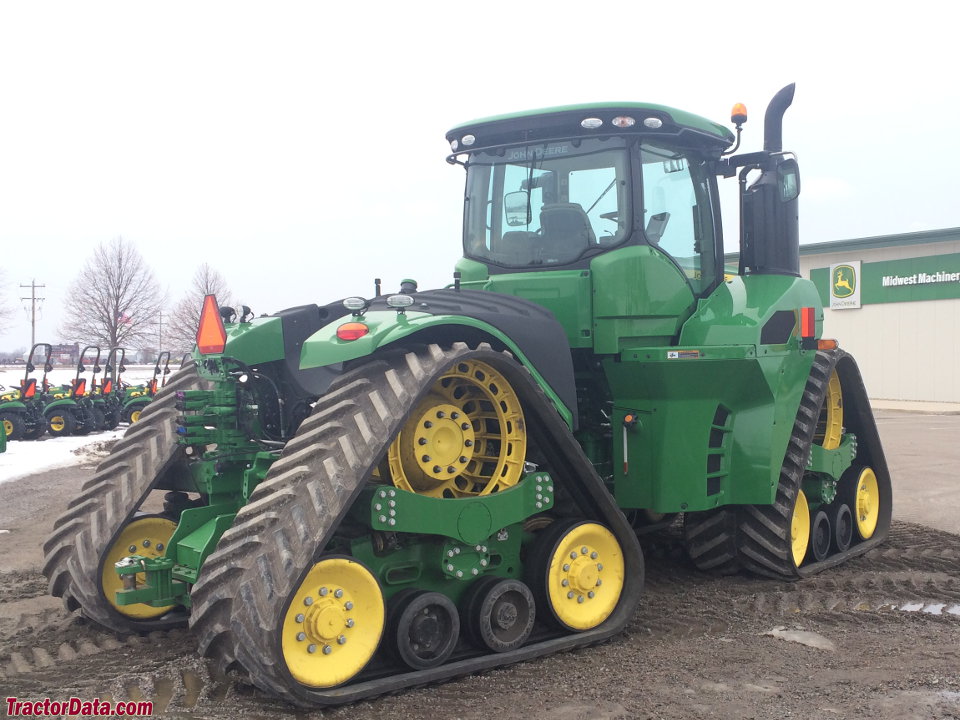

John Deere 9620RX

Name: John Deere 9620RX
Brand: John Deere

John Deere 9620RX — 9R Series · 620 hp. Reference specifications; pending source verification.

The John Deere 9620RX is a tractor model with a rated output of 620 hp, categorising it as a high-powered machine in its class. Production of the 9620RX spanned the period from 2016 to 2021. It is powered by a 6-cylinder turbocharged diesel liquid-cooled engine, driving through four-wheel drive with a powershift transmission. The listed weight of the 9620RX is 25174 kg, making it suitable for tasks on areas of approximately 1,500 acres or more.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

620 hp

Max power

266.9 kW

Weight

25174 kg

Catalogue coverage

Variants represented

Richest spec table

106 rows

Recorded power

620 hp

Recorded weight

25174 kg

Transmissions

18-speed full power shift

Production years

2016-2021

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Articulated Crawler tractorReference

Built in Waterloo, Iowa, USAReference

Original price was $574,786 in 2015Reference

Drivearticulated-crawlerReference

CommandView III cab standard with suspension and air-conditioning. AutoTrac ready; ISOBUS 11783; JDLink readyReference

Variants

9620Rwheeled 4WDReference

9620RXarticulated crawlerReference

Engine

Cummins 14.9L 6-cyl dieselReference

Fuel tank1514.0 LReference

Exhaust fluid (DEF)83.3 LReference

Engine (gross)462.3 kWReference

Drawbar (tested)368.6 kWReference

Cummins QSX15Reference

variable geometry turbocharger dieselReference

6-cylinderReference

liquid-cooledReference

Displacement14.9 LReference

Bore/Stroke137 x 169 mmReference

EmissionsTier IVReference

Emission controlselective catalytic reduction, exhaust-gas recirculation, and diesel particulate filterReference

Rated Power (gross)462.3 kWReference

StarterelectricReference

Starter volts12Reference

Max power266.9 kWReference

Power at rated engine speed235.0 kWReference

Max power368.6 kWReference

Fuel TypedieselReference

No of Cylinders6 cylinderReference

Emissions complianceTier IVReference

Bore and stroke5.39x6.65 inchesReference

Cooling systemliquid-cooledReference

Transmission

18-speed full power shiftReference

Transmissione18 PowerShiftReference

Typefull power shiftReference

Gears18 forward and 6 reverseReference

Transmission TypePowershiftReference

forward and reverse optionse18 PowerShift | 18F and 6RReference

Wheel DrivetrackReference

PTO & Hydraulics

PTO (tested)266.9 kWReference

Typeclosed-center pressure/flow compensatedReference

Valves4 to 8Reference

Pump flow219.5 lpmReference

Pump flow435.3 lpmReference

SCV flow132.5 lpmReference

SCV flow159.0 lpmReference

Rear TypeIV/IVNReference

Rear lift6804 kgReference

Rear lift9072 kgReference

DrawbarCat. 5 HDReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type1000 (1.75)Reference

Power at rated PTO speed257.1 kWReference

Dimensions

Wheelbase415 cmReference

Weight25174 kgReference

30-inch tracksReference

Length817 cmReference

Width297 cmReference

Width312 cmReference

Height (exhaust)412 cmReference

Clearance (drawbar)40 cmReference

Shipping25174 kgReference

Max Drawbar5443 kgReference

9620RX Serial Number Location

The John Deere 9620RX serial number plate on the right side of the tractor frame, just ahead of the front axle.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps200Reference

Charging amps240Reference

Charging volts12Reference

Batteries4Reference

Battery CCA925Reference

Battery volts12Reference

Total cold cranking amps925 ampsReference

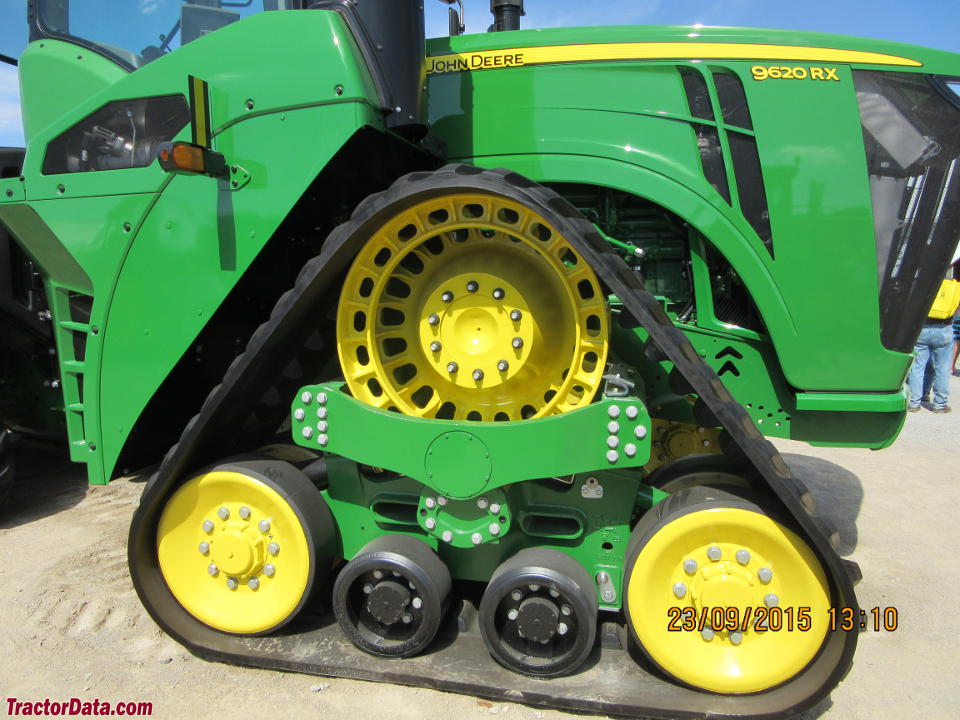

John Deere 9620RX Tracks

Width76 cmReference

Width91 cmReference

Capacities

Max capacity28123 kgReference

Capacity912 ciReference

Diesel exhaust fluid (DEF) tank83.3 LReference

Test results

Diesel 18-speed crawlerApril 12 - 19, 2017Link: OCED Tractor Test 2174 fileReference

PTO performanceReference

Fuel use73.4 l/hourReference

Fuel use74.9 l/hourReference

Drawbar performanceReference

Fuel use120.4 l/hourReference

Gear 7 used for power test.Reference

Max pull21992 kgReference

Gear 2 used for pull test.Reference

General

Make & ModelJohn DeereReference

SCV controlJoystickReference

Drawbar categoryCat. 5 HDReference

Country of manufacturerUSAReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Hydraulics

Hydraulics Typeclosed-center pressure/flow compensatedReference

Remote Valves4 to 8 valvesReference

Rear Hitch category (SAE designation)Category IV/IVN optReference

Rear Hitch maximum lift capacity9,071.8 kgReference

Dimensions & weight

Overall Length817.9 cmReference

Overall Width312.9 cmReference

Drawbar clearance40 cmReference

Overall weight25,174.4 kgReference

Track width91.4 cmReference

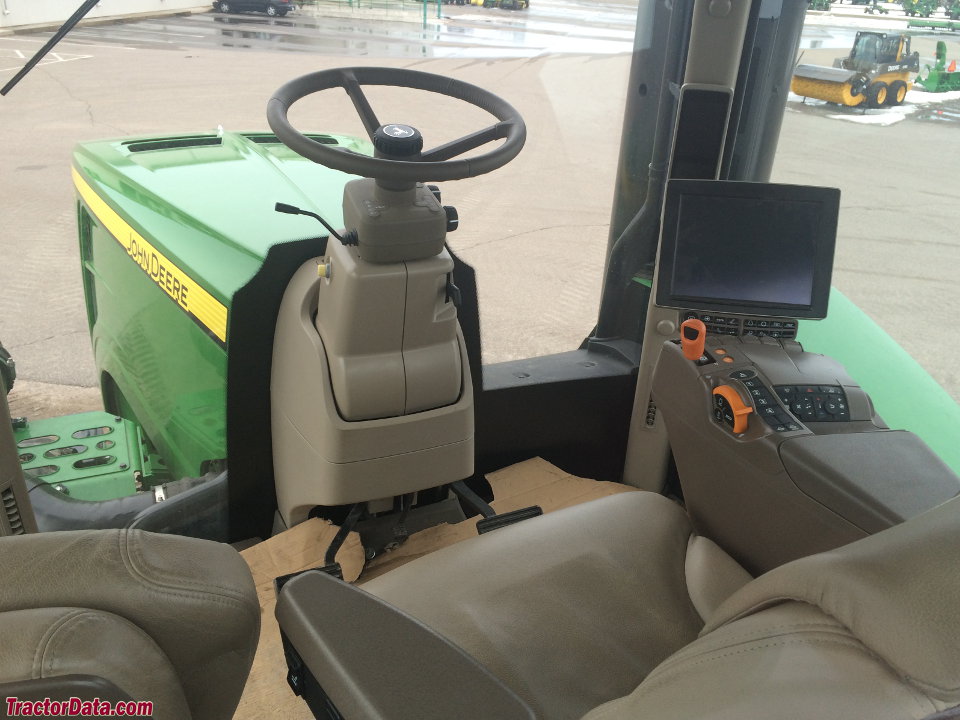

Operator station

Cab AvailabilityAvailableReference

Cab Air conditioning, temperature differentialCab available with Air ConditionerReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
