Tractor · 2007Unverified

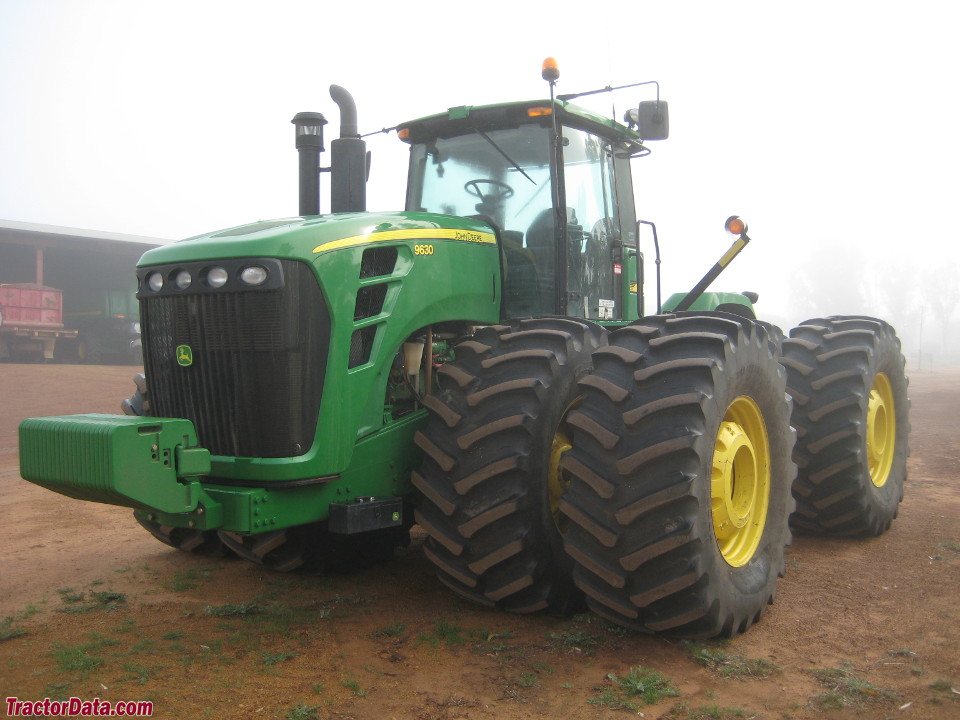

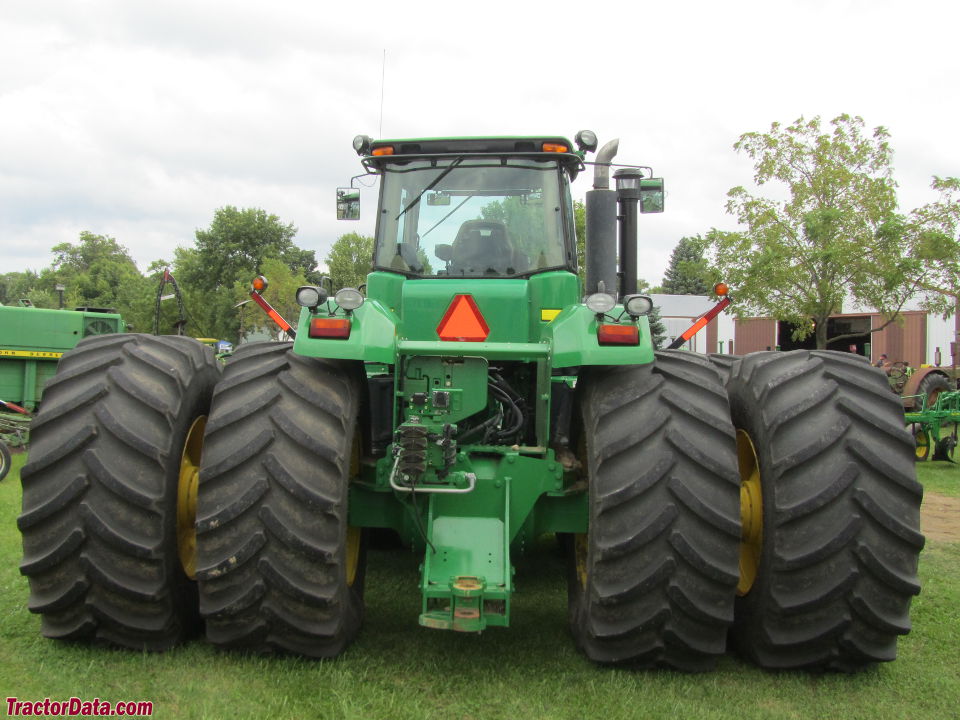

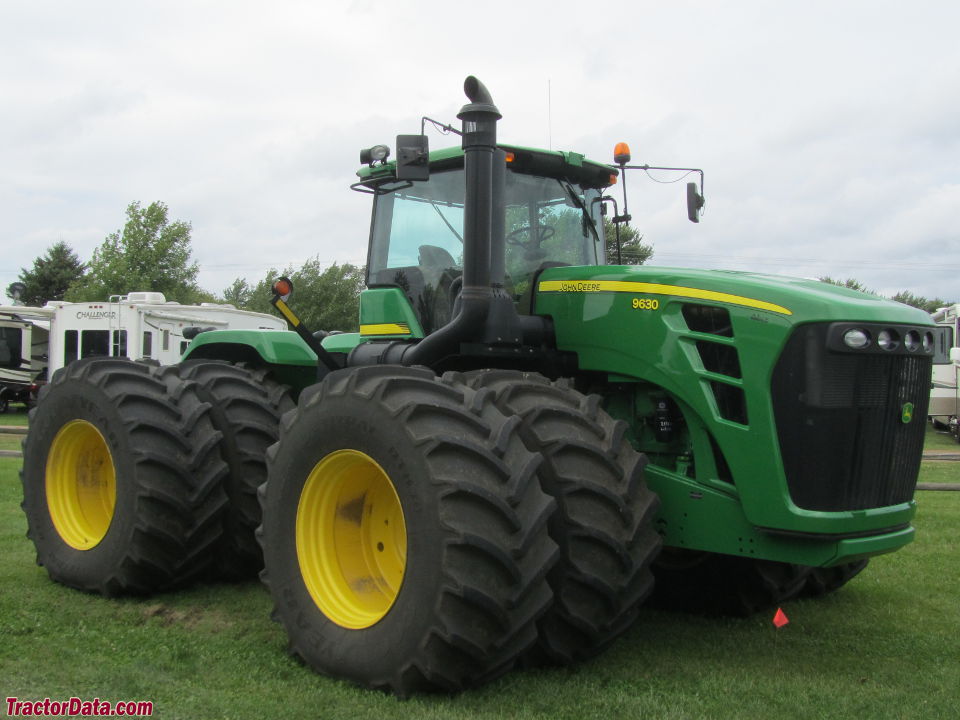

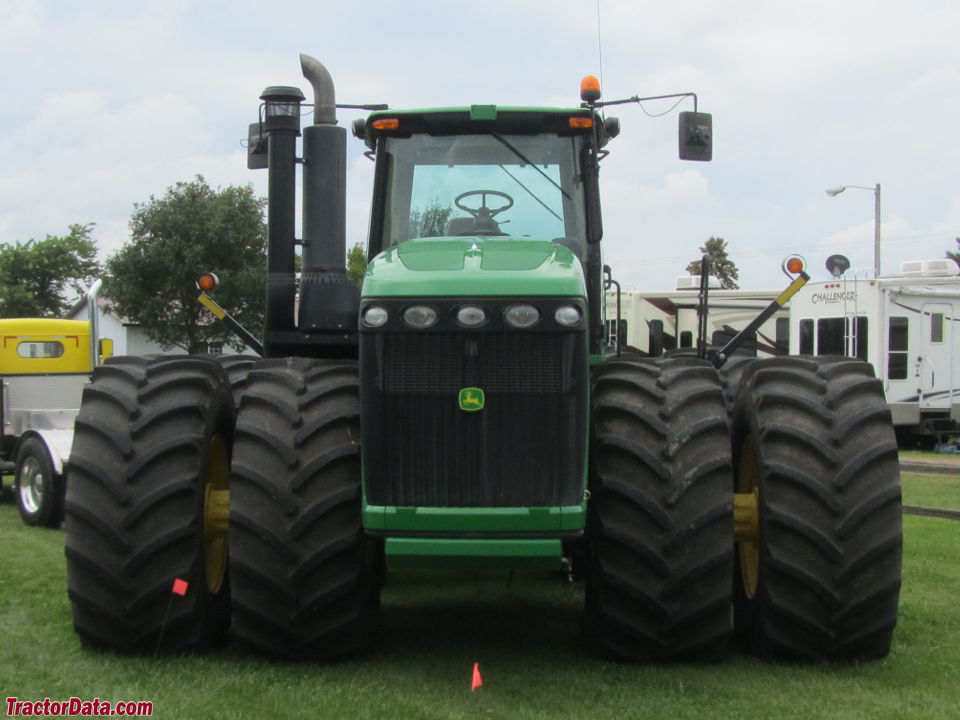

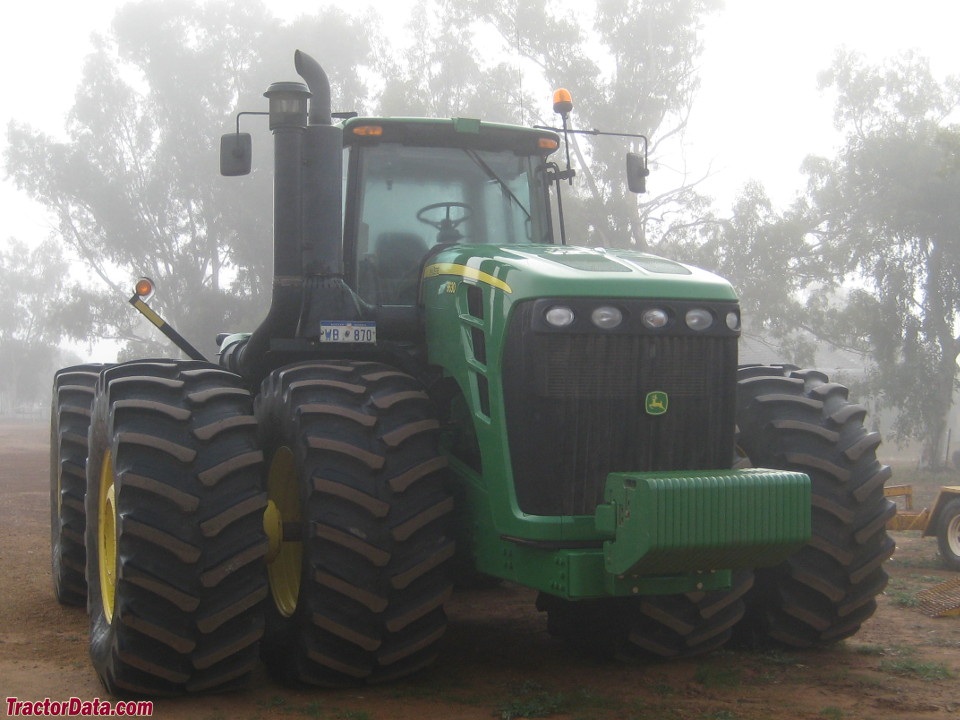

John Deere 9630
John Deere 9630 — Four-wheel Drive (4WD) tractor · 530 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
530 hp
Max power
318.5 kW
Weight
37747 to 39465 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Four-wheel Drive (4WD) tractorReference
Built in Waterloo, Iowa, USAReference
Four-wheel driveReference
Differential lockhydraulic differential lock standardReference
Steeringhydrostatic powerReference
Hydraulic wet discs brakesReference
Trailer brakeshydraulic optionalReference
CommandView Cab standard with air-conditioning. Optional automatic climate control and leather trim.Reference
Variants
9630wheeledReference
9630TcrawlerReference
Engine
John Deere 13.5L 6-cyl dieselReference
Engine395.2 kWReference
Drawbar (tested)318.5 kWReference
John DeereReference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement13.5 LReference
Bore/Stroke132 x 165 mmReference
EmissionsTier IIIReference
Power395.2 kWReference
Air cleaneraspirator and dual paper elemntsReference
Compression16.0:1Reference
Rated RPM2100Reference
Starter volts12Reference
Coolant capacity66.2 LReference
Oil capacity60.0 LReference
Max power318.5 kWReference
Transmission
18-speed full power shiftReference
TransmissionJohn Deere PowerShiftReference
Typefull power shiftReference
Gears18 forward and 6 reverseReference
Clutchelectronic wet discReference
Capacities
Fuel1324.8 LReference
PTO & Hydraulics
Hydraulic system102.2 LReference
Hydraulic system106.0 LReference
Hydraulic system75.7 LReference
Hydraulic system117.3 LReference
Typeclosed-center pressure and flow compensatingReference
Capacity102.2 LReference
Capacity106.0 LReference
Capacity75.7 LReference
Capacity117.3 LReference
Pressure200.0 barReference
Valves4 to 6Reference
SCV flow113.6 lpmReference
Total flow181.7 lpmReference
Total flow295.2 lpmReference
Rear Type4N/3Reference
Rear Type4N/4Reference
Rear lift (at 24"/610mm)6940 kgReference
DrawbarCatergory 5 standard with secondary chain support.Reference
Dimensions
Wheelbase350 cmReference
Weight37747 to 39465 poundsReference
Length685 cmReference
Length723 cmReference
Width301 cmReference
Hinge pin Ground clearance52 cmReference
Clearance (rear axle)78 cmReference
Rear axle119 by 3048 mmReference
Shipping17122 kgReference
Operating17901 kgReference
Ballasted24569 kgReference
9630 Serial Number Location
Rear-left of tractor hinge frame on early models. Right side of tractor frame, ahead of front axle, on late models.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Batteries3Reference
Battery CCA925Reference
Battery volts12Reference
John Deere 9630 Height
Hood271 cmReference
Cab360 cmReference
Exhaust396 cmReference
Test results
Diesel 18-speed 4WDNovember 4 - 14, 2008Link: OCED Tractor Test 1926 fileReference
Drawbar performanceReference
Fuel use105.2 l/hourReference
Gear 8 used for power test.Reference
Max pull24342 kgReference
Gear 1 used for pull test.Reference
Speeds
With Group 48 tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
