Tractor · 2007Unverified

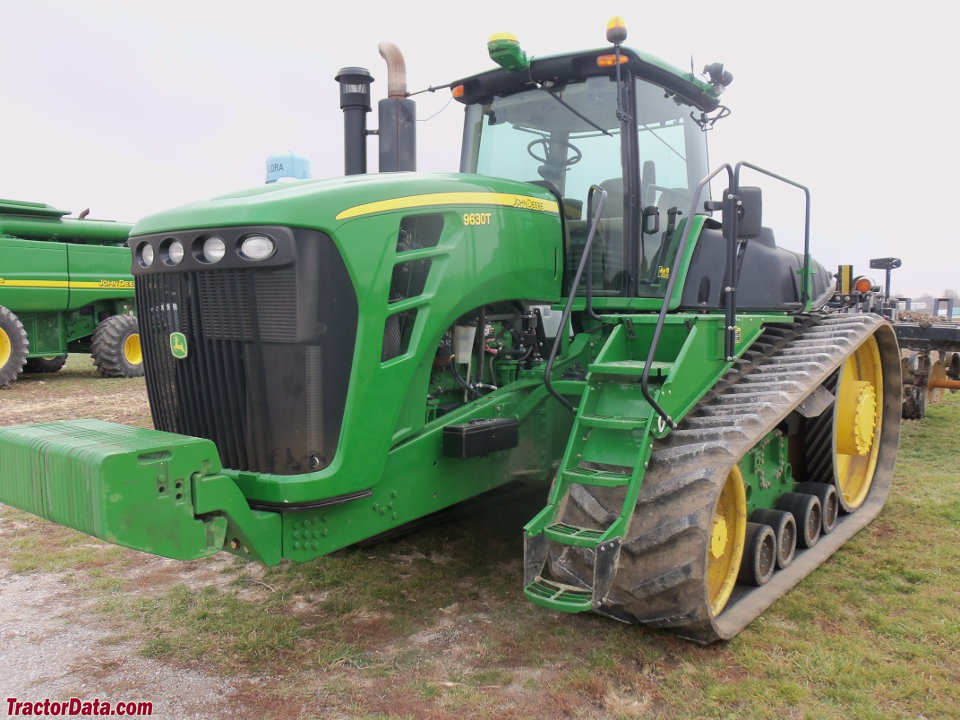

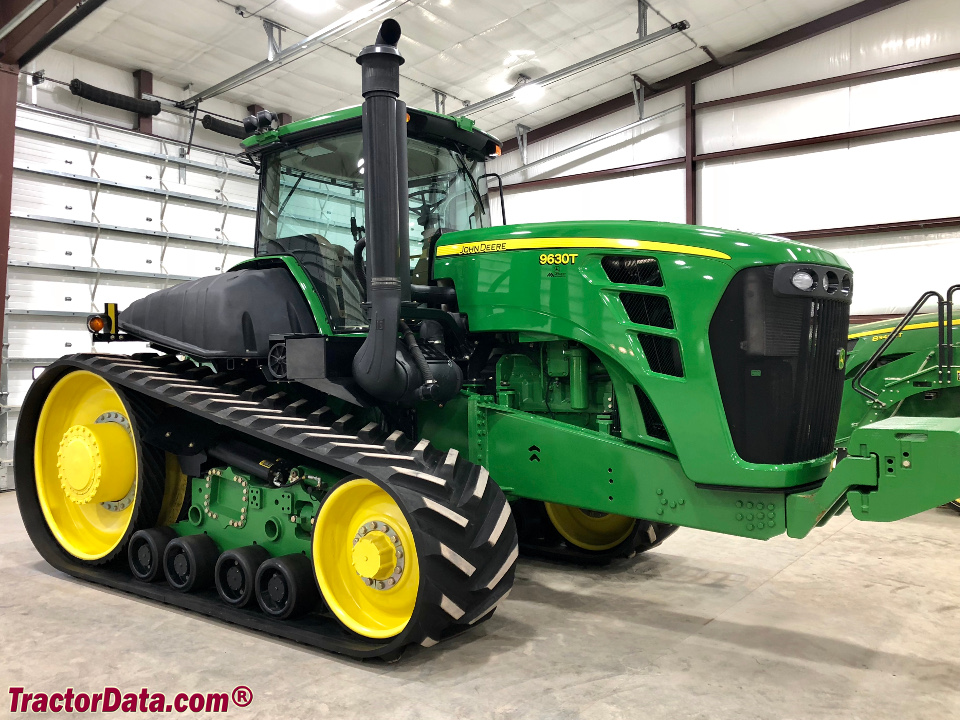

John Deere 9630T
John Deere 9630T — Agricultural Crawler tractor · 543 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
543 hp
Max power
299.7 kW
Weight
19922 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Agricultural Crawler tractorReference
Built in Waterloo, Iowa, USAReference
DrivecrawlerReference
Steeringelectro-hydraulic powerReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Variants
9630wheeledReference
9630TcrawlerReference
Engine
John Deere 13.5L 6-cyl dieselReference
Engine (gross)404.9 kWReference
Engine395.2 kWReference
Drawbar (tested)299.7 kWReference
John Deere PowerTech PlusReference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement13.5 LReference
Bore/Stroke132 x 165 mmReference
Power395.2 kWReference
Rated Power (gross)404.9 kWReference
Fuel systemelectronic injectionReference
Cooling systemvariable ratio fanReference
Air cleanerdual paper elementsReference
Compression16:1Reference
Rated RPM2100Reference
Starter volts12Reference
Coolant capacity53.0 LReference
Oil capacity59.8 LReference
Max power299.7 kWReference
Transmission
18-speed full power shiftReference
TransmissionJohn Deere PowerShiftReference
Typefull power shiftReference
Gears18 forward and 6 reverseReference
Clutchhydraulic wet discsReference
Oil capacity227.1 LReference
PTO & Hydraulics
PTO (claimed)279.6 kWReference
Hydraulic system102.2 LReference
Typeclosed-center pressure flow compensated (PFC)Reference
Capacity102.2 LReference
Pressure200.0 barReference
Pump flow181.7 lpmReference
SCV flow113.6 lpmReference
Rear Type4/4N (optional)Reference
Controlposition and draft controlReference
Rear lift6940 kgReference
Capacities
Fuel1249.0 LReference
Dimensions
Wheelbase294 cmReference
Weight19922 kgReference
TracksReference
Length601 cmReference
Length683 cmReference
Width345 cmReference
Width360 cmReference
Height (cab)340 cmReference
Height (exhaust)393 cmReference
Operating weight19922 kgReference
Max weight24040 kgReference
Ground clearance40 cmReference
Clearance (drawbar)48 cmReference
9630T Serial Number Location
Front-right of tractor frame.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Batteries3Reference
Battery CCA925Reference
Battery volts12Reference
John Deere 9630T Tracks
Size30-inch beltReference
Option36-inch beltReference
Test results
Diesel 18-speed crawlerMay 6 - 14, 2008Link: OCED Tractor Test 1927 fileReference
Drawbar performanceReference
Fuel use101.1 l/hourReference
Gear 7 used for power test.Reference
Max pull24490 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
