Tractor · 2021Unverified

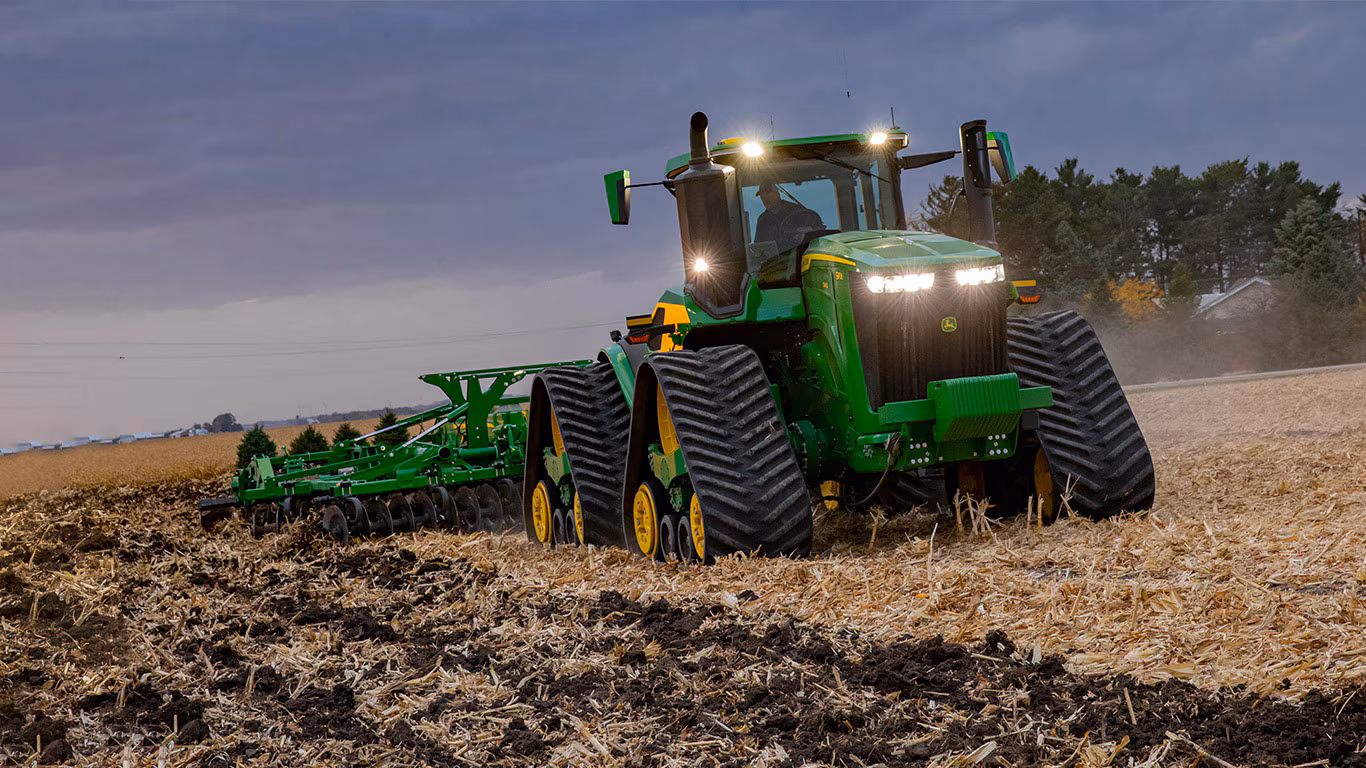

John Deere 9RX 590

Name: John Deere 9RX 590
Brand: John Deere

John Deere 9RX 590 — 9R Series · 582 hp. Reference specifications; pending source verification.

The John Deere 9RX 590 is a tractor with a rated power of 582 hp, placing it at the powerful end of its class. It was manufactured in 2021 and features a 6-cylinder turbocharged diesel liquid-cooled engine paired with four-wheel drive and a powershift transmission. The tractor has an operating weight of 25,546 kg and is suitable for operations covering areas of 1,500 acres or more.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

582 hp

Weight

25546 kg

Catalogue coverage

Variants represented

Richest spec table

71 rows

Recorded power

582 hp

Recorded weight

25546 kg

Transmissions

18-speed full power shift

Production years

2021-2021

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Articulated Crawler tractorReference

Built in Waterloo, Iowa, USAReference

Original price$858,308 (2023 )Reference

Original price$957,161 (2026 )Reference

Drivearticulated-crawlerReference

Final drivesbull gearReference

Differential lockelectro-hydraulic front and rearReference

Articulated power steeringReference

Hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Variants

9R 590wheeled 4WDReference

9RX 590articulated crawlerReference

Engine

John Deere 13.6L 6-cyl dieselReference

Fuel tank1514.0 LReference

Exhaust fluid (DEF)120.0 LReference

Engine (gross)434.0 kWReference

Engine (max)477.0 kWReference

John Deere JD14Reference

turbocharged aftercooled dieselReference

6-cylinder 24-valveReference

liquid-cooled inlineReference

Displacement13.6 LReference

Bore/Stroke132 x 165 mmReference

EmissionsTier IVReference

Rated Power (gross)434.0 kWReference

Maximum Power (gross)477.0 kWReference

Fuel systemelectronic high-pressure common railReference

Air cleanerdryReference

Compression15.9:1Reference

Rated RPM2100Reference

Torque2722.8 NmReference

Torque RPM1550Reference

StarterelectricReference

Starter volts12Reference

Oil capacity64.0 LReference

Oil change500 hReference

Coolant capacity56.5 LReference

Transmission

18-speed full power shiftReference

Transmissione18Reference

Typefull power shiftReference

Gears18 forward and 6 reverseReference

PTO & Hydraulics

PTO (claimed)249.8 kWReference

Typeclosed center pressure/flow compensatedReference

Pressure200.0 barReference

Valves4 to 8Reference

Pump flow208.2 lpmReference

Pump flow416.4 lpmReference

SCV flow132.5 lpmReference

SCV flow159.0 lpmReference

Rear TypeIVN/IVReference

Rear lift (at 24"/610mm)6804 kgReference

Rear lift (at 24"/610mm)9072 kgReference

Rear PTOindependentReference

Rear PTO Type1000 (1.75)Reference

Dimensions

Wheelbase412 cmReference

Weight25546 kgReference

30-inch tracksReference

Length879 cmReference

Height (cab)371 cmReference

Height (exhaust)368 cmReference

Shipping weight25546 kgReference

Gauge220/304 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps250Reference

Charging amps330Reference

Batteries3Reference

Battery volts12Reference

John Deere 9RX 590 Tracks

Width76 cmReference

Width91 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
