Tractor · 1947Unverified

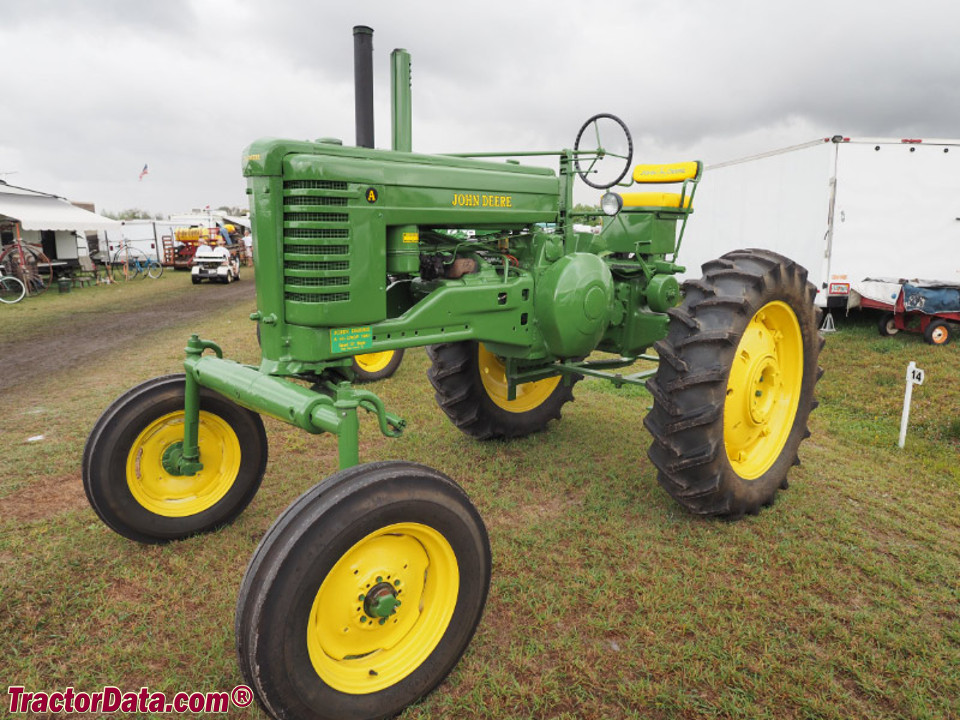

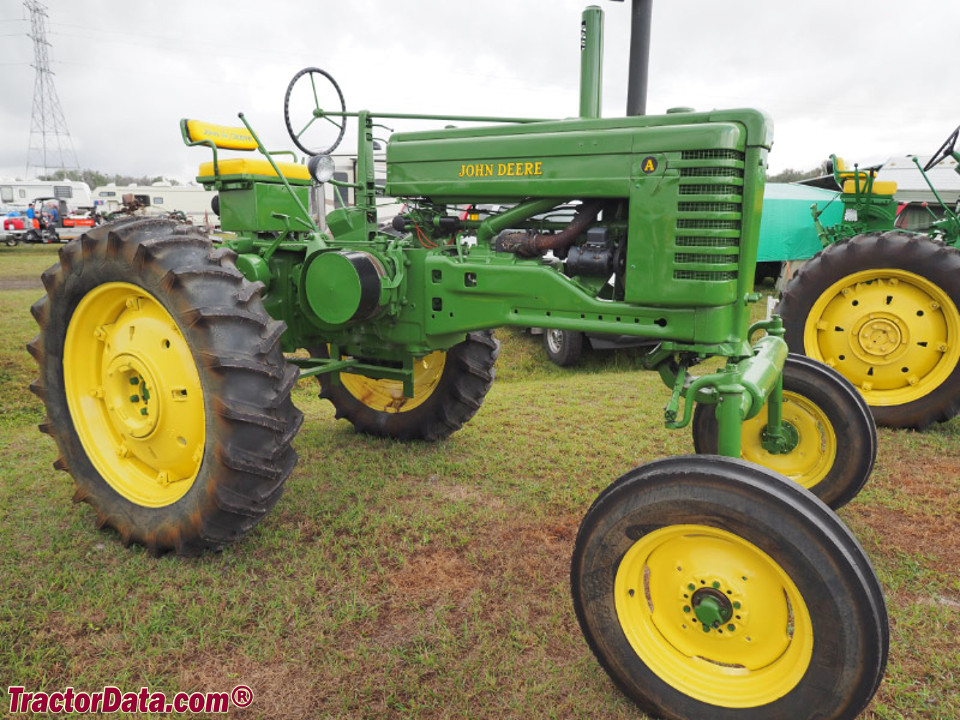

John Deere AH
John Deere AH — Two-Cylinder Letter Series · 34 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
34 hp
Weight
2903 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
High-Clearance tractorReference
Built in Waterloo, Iowa, USAReference
Total built427 (total)Reference
Total built246 (gas)Reference
Total built181 (all-fuel)Reference
Two-wheel driveReference
Manual steeringReference
Mechanical drum brakesReference
Open operator station.Reference
Variants
ARA-Regular with standard front axleReference
AOOrchardReference
AWAdjustable wide-frontReference
ANSingle front wheelReference
AHHigh-cropReference
Engine
John Deere 5.3L 2-cyl gasolineReference
Drawbar (claimed)25.4 kWReference
Belt (claimed)28.3 kWReference
John DeereReference
gasolineReference
2-cylinderReference
liquid-cooledReference
Displacement5.3 LReference
Bore/Stroke140 x 171 mmReference
Rated RPM975Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speed gearReference
TransmissionJohn DeereReference
TypegearReference
Gears6 forward and 1 reverseReference
Dimensions
Weight2903 kgReference
Front tire7.50-20Reference
Rear tire11-38Reference
Ag front7.50-20Reference
Ag rear11-38Reference
Ag rear12-38Reference
Shipping weight2903 kgReference
Front tread152 to 213 cmReference
Rear tread152 to 228 cmReference
Electrical
GroundpositiveReference
Batteries2Reference
Battery volts6Reference
Speeds
With 11-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
