Tractor · 1935Unverified

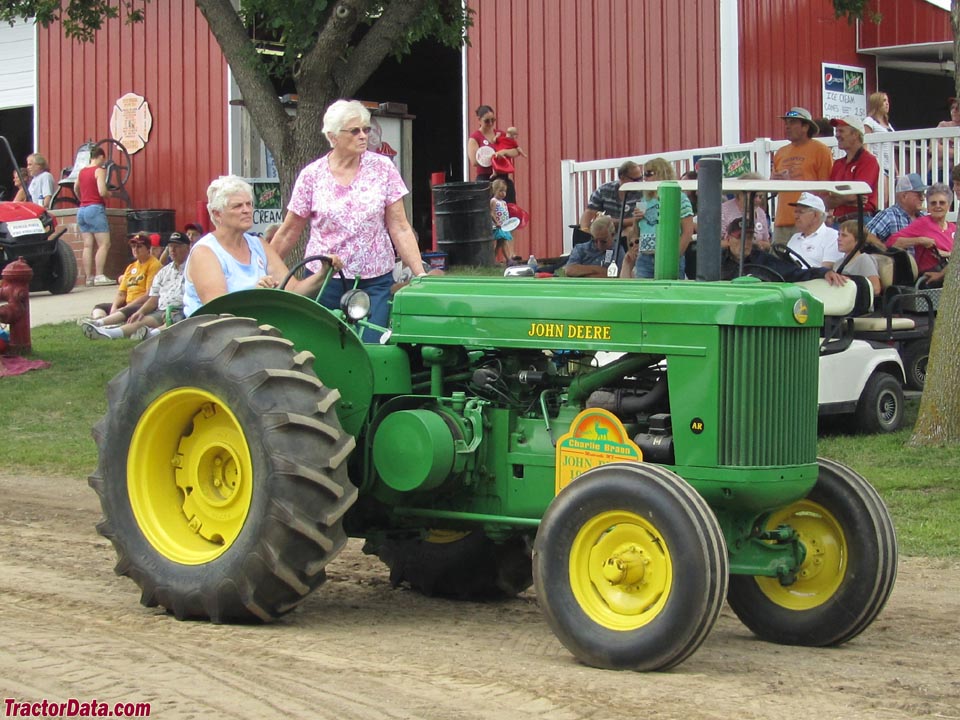

John Deere AR Styled
John Deere AR Styled — Model year 1935-19411950-1953 · 35 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Max power
25.4 kW
Weight
5244 to 5600 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Standard-tread tractorReference
Built in Waterloo, Iowa, USAReference
Total built10,420 (AR)Reference
Total built1,495 (AO)Reference
Original price was $2,300 in 1951Reference
The AR/AO was the "regular", or fixed-tread version of the model A. The AR was not styled until 1949, a decade after the row-crop model A.Reference
Two-wheel driveReference
Manual steeringReference
Mechanical shoe brakesReference
Open operator stationReference
Engine
John Deere 5.3L 2-cyl gasolineReference
John Deere 5.3L 2-cyl keroseneReference
Gas Drawbar (claimed)26.0 kWReference
All-fuel Drawbar (claimed)20.2 kWReference
Gas Belt (claimed)29.2 kWReference
All-fuel Belt (claimed)23.1 kWReference
Plows2 (16-inch)Reference
Drawbar (tested)25.4 kWReference
Belt (tested)28.2 kWReference
John DeereReference
gasolineReference
2-cylinderReference
liquid-cooledReference
Displacement5.3 LReference
Bore/Stroke140 x 171 mmReference
Compression5.6:1Reference
Rated RPM975Reference
Firing order1-2Reference
Starter volts12Reference
Coolant capacity33.1 LReference
SparkplugAC88LReference
Sparkplug gap0.762 mmReference
Point gap0.533 mmReference
Intake valve clearance0.508 mmReference
Exhaust valve clearance0.508 mmReference
Oil capacity10.4 LReference
Oil change120 hReference
keroseneReference
Air cleaneroil bathReference
Compression4.5:1Reference
SparkplugChampion 8Reference
Belt power (max)28.2 kWReference
Max power25.4 kWReference
Transmission
6-speed unsynchronized gearReference
TransmissionJohn DeereReference
Typeunsynchronized gearReference
Gears6 forward and 1 reverseReference
Oil capacity30.3 LReference
Oil typeSAE 90Reference
Capacities
Fuel75.7 LReference
Aux. fuel3.8 LReference
Diameter32 cmReference
Width18 cmReference
RPM975Reference
Speed996.70 meters/minReference
PTO & Hydraulics
Hydraulic system7.9 LReference
TypePowr-Trol (optional)Reference
Capacity7.9 LReference
Pressure64.1 barReference
Valves1Reference
Pump flow33.7 lpmReference
Rear PTOtransmissionReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase192 cmReference
Weight5244 to 5600 poundsReference
Front tire6.00-16Reference
Rear tire13-26Reference
Ag front6.00-16Reference
Ag rear13-26Reference
Ag front7.50-16Reference
Ag front6.50-18Reference
Ag front7.50-18Reference
Ag rear14-26Reference
Ag rear15-26Reference
Length314 cmReference
AR Width184 cmReference
AO Width192 cmReference
Height (hood)144 cmReference
Rear axle69 mmReference
Rear tread138 to 148 cmReference
AR Shipping2378 kgReference
AO Shipping2495 kgReference
Operating2540 kgReference
Ballasted3341 kgReference
AR Serial Numbers
1935250000 (Unstyled)Reference
1936251486 (Unstyled)Reference
1937253521 (Unstyled)Reference
1938255416 (Unstyled)Reference
1939256700 (Unstyled)Reference
1940257647 (Unstyled)Reference
1941260000 (Unstyled)Reference
1942261125 (Unstyled)Reference
1943262157 (Unstyled)Reference
1944262755 (Unstyled)Reference
1945264198 (Unstyled)Reference
1946265535 (Unstyled)Reference
1947266643 (Unstyled)Reference
1948268410 (Unstyled)Reference
1949270131 (Unstyled)Reference
Final271573 (Unstyled)Reference
1950272000 (Styled)Reference
1951275938 (Styled)Reference
1952278700 (Styled)Reference
1953282351 (Styled)Reference
Final284074 (Styled)Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundpositiveReference
Charging systemgeneratorReference
Batteries2Reference
Battery volts6Reference
Test results
Gasoline 6-speed 2WDOctober 11 - 15, 1949Link: Nebraska Tractor Test 429 fileReference
Belt fuel use (max)13.2 l/hourReference
Drawbar performanceReference
Gear 4 used for power test.Reference
Max pull1983 kgReference
Gear 1 used for pull test.Reference
Speeds
With 13-26 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
