Lawn Tractor · 2011Unverified

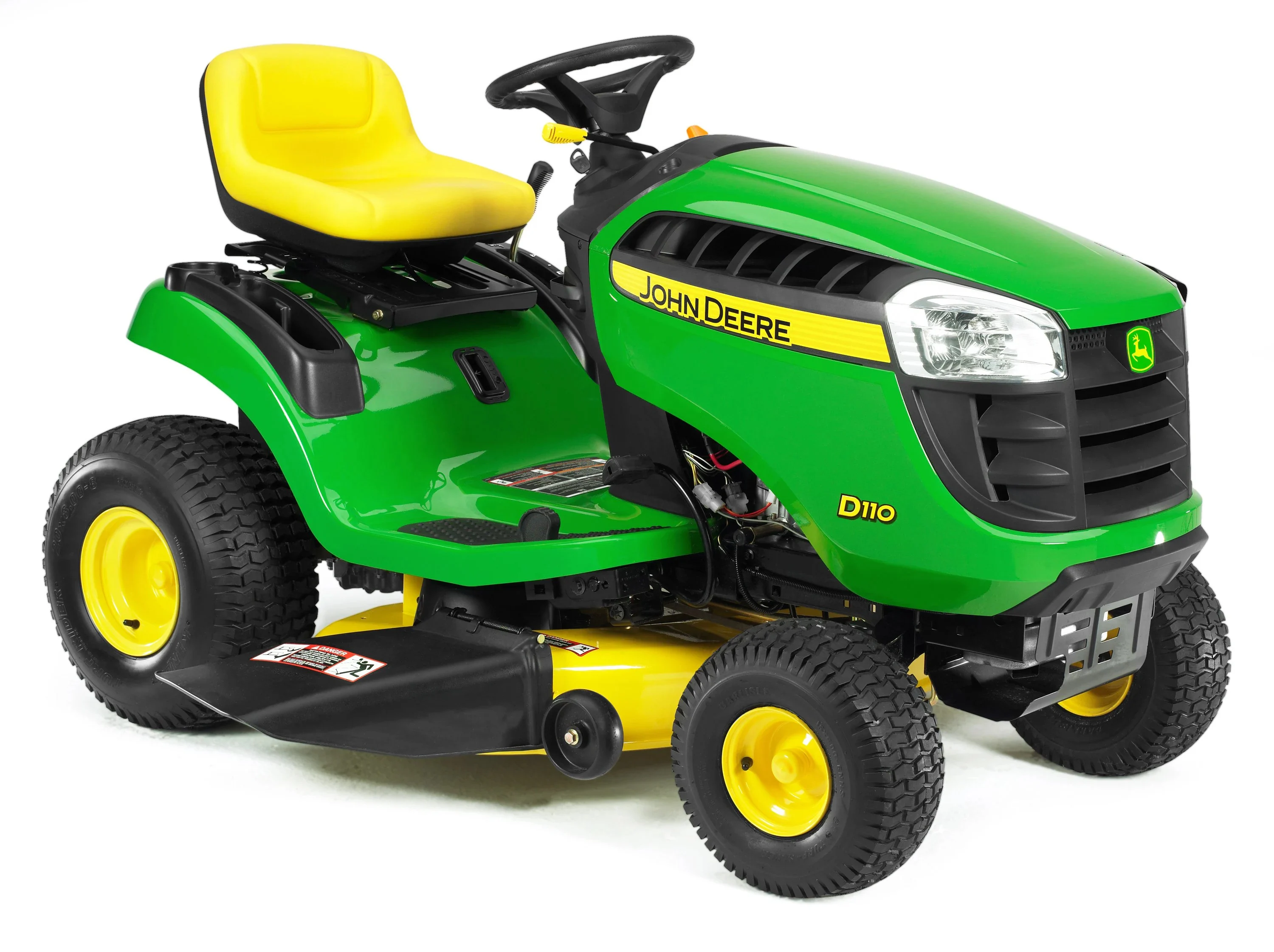

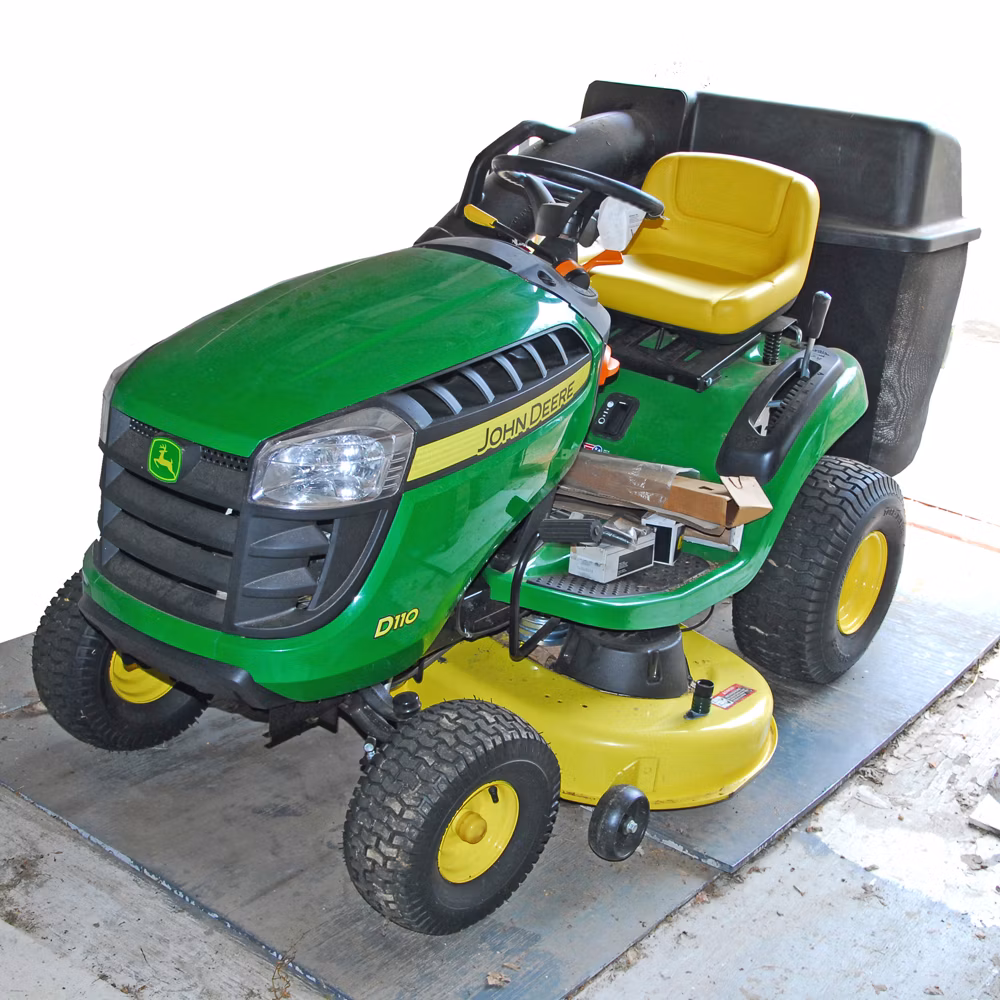

John Deere D110
John Deere D110 — Model year 2011-20122013-2017 · 20 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Weight
204 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Lawn tractorReference
Built in Greeneville, Tennessee, USAReference
Original price$1,699 (2011)Reference
Two-wheel driveReference
Manual steeringReference
Mechanical shoe on transaxle brakesReference
Open operator station. Adjustable 11-inch tall seat with 5.5-inches of travel in ten positions. Fender-mounted cup holder. Optional nylon sunshade canopy or snow enclosure.Reference
Engine
19.5HP Briggs & Stratton 499cc 1-cyl gasolineReference
Fuel tank7.9 LReference
Fuel tank9.1 LReference
Briggs & Stratton 31P677Reference
gasolineReference
1-cylinderReference
air-cooled vertical-shaftReference
Displacement30.5 ciReference
Bore/Stroke91 x 78 mmReference
Power (gross)14.5 kWReference
Air cleanercartridgeReference
StarterelectricReference
Starter volts12Reference
Oil capacity1.4 LReference
Sparkplug gap0.762 mmReference
Point gap0.305 mmReference
Intake valve clearance0.102 mmReference
Exhaust valve clearance0.152 mmReference
Transmission
hydrostaticReference
TransmissionTuff Torq T40Reference
Typebelt-driven hydrostaticReference
Gearsinfinite forward and reverseReference
Automatic transmission with right-side accelerator and decelerator/reverse foot pedals. Left-side brake pedal. Cruise control is standard equipment.Reference
PTO & Hydraulics
Mid PTOmanual independentReference
Dimensions
Wheelbase124 cmReference
Weight204 kgReference
Front tire15x6.00-6Reference
Rear tire20x8.0-8Reference
Lawn/turf front15x6.00-6Reference
Lawn/turf rear20x8.0-8Reference
Length174 cmReference
Width131 cmReference
Height107 cmReference
John Deere D110 attachments
42" mid-mount mower deckReference
snowblowerReference
bladeReference
D110 Serial Numbers
Location:Serial number on rear of tractor, left side, under fender.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps9Reference
Battery volts12Reference
Battery GroupU1Reference
Attachment overview
42" mid-mount mower deckReference
SnowblowerReference
BladeReference
42" Mower deck
Typemid-mount John Deere Edge 42Reference
Type2-blade with manual with spring-assist liftReference
Cutting width106 cmReference
Overall width132 cmReference
Cut height2 to 10 cmReference
Cut positions13Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
