Lawn Tractor · 2014Unverified

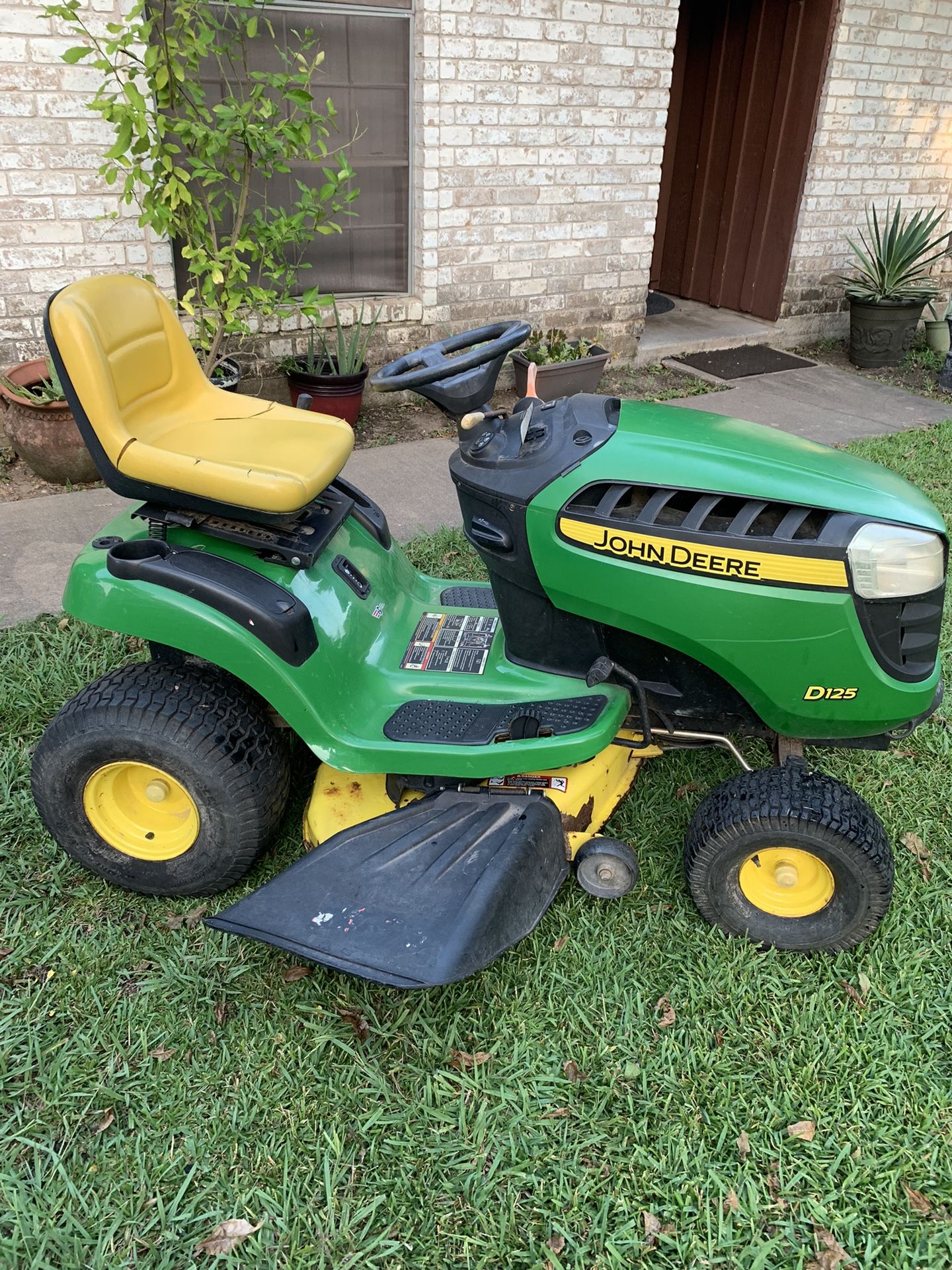

John Deere D125
John Deere D125 — Lawn tractor · 20 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Weight
198 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Lawn tractorReference
Built in Greeneville, Tennessee, USAReference
Original price was $1,799 in 2015Reference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
20HP Briggs & Stratton 655cc 2-cyl gasolineReference
Fuel tank9.1 LReference
Briggs & Stratton 40Reference
gasolineReference
2-cylinderReference
air-cooled vertical-shaft V-TwinReference
Displacement40 ciReference
Bore/Stroke75 x 73 mmReference
Power (gross)14.9 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TransmissionTuff Torq T40Reference
Typebelt-driven hydrostaticReference
Gearsinfinite forward and reverseReference
Oil changesealed unit, owner service is not recommendedReference
Beginning with tractor serial number 600001 the TLT200 transmission replaced the T40.Reference
Dimensions
Weight198 kgReference
Front tire15x6-6Reference
Rear tire20x8.0-0Reference
Lawn/turf front15x6-6Reference
Lawn/turf rear20x8.0-0Reference
Length174 cmReference
Height113 cmReference
John Deere D125 attachments
42" mid-mount mower deckReference
snowblowerReference
bladeReference
D125 Serial Numbers
2014500001Reference
2015600001Reference
2016700001Reference
2017810001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
42" mid-mount mower deckReference
SnowblowerReference
BladeReference
42" Mower deck
Typemid-mount John DeereReference
Type2-blade with manual liftReference
Cutting width106 cmReference
Overall width139 cmReference
Cut height2 to 10 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
