Lawn Tractor · 2011Unverified

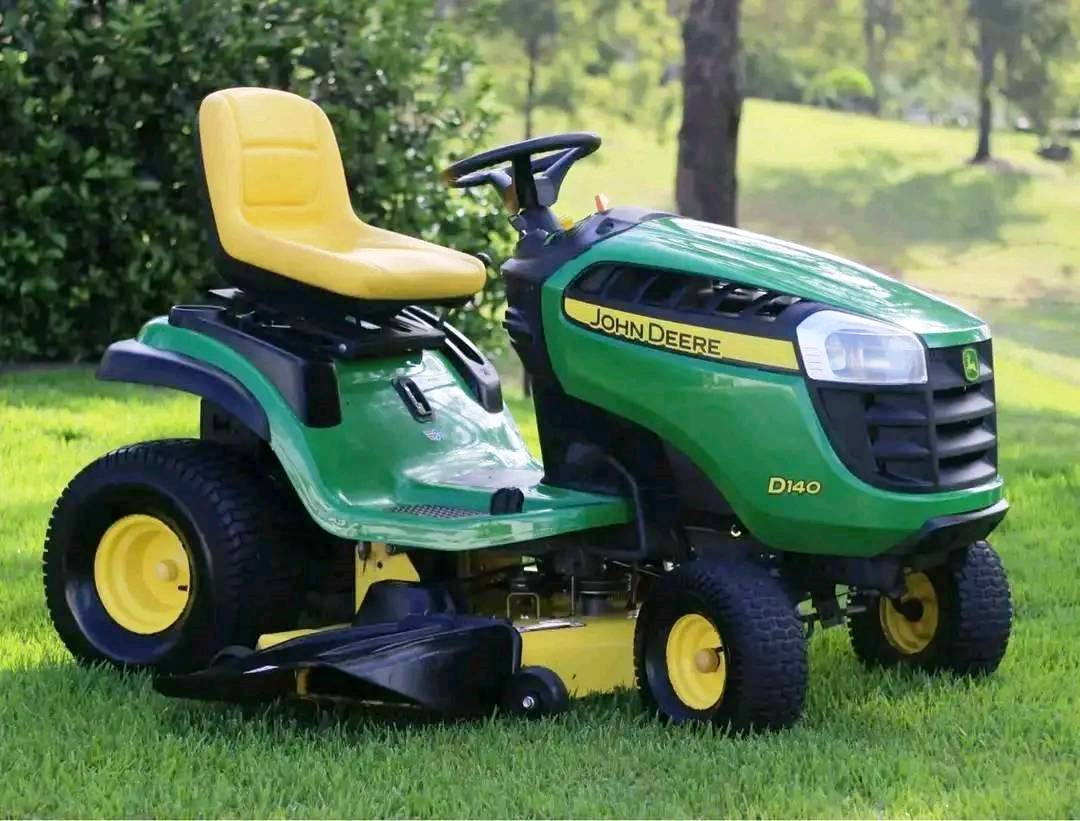

John Deere D140
John Deere D140 — Model year 2011-20122013-2017 · 22 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Weight
238 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Lawn tractorReference
Original price$1,999 (2011)Reference
Two-wheel driveReference
SteeringmanualReference
Mechanical shoe on transaxle brakesReference
Open operator station. Adjustable 15-inch tall seat with 5.5-inches of travel in ten positions. Fender-mounted cup holder. Optional nylon sunshade canopy or snow enclosure.Reference
Variants
D13042-inch deckReference
D14048-inch deckReference
Engine
22HP Briggs & Stratton 655cc 2-cyl gasolineReference
Fuel tank15.1 LReference
Fuel tank9.1 LReference
Briggs & Stratton 40Reference
gasolineReference
2-cylinderReference
air-cooled vertical-shaft V-TwinReference
Displacement40 ciReference
Bore/Stroke75 x 73 mmReference
Power (gross)16.4 kWReference
Air cleanercartridgeReference
StarterelectricReference
Starter volts12Reference
Sparkplug gap0.762 mmReference
Point gap0.254 mmReference
Intake valve clearance0.127 mmReference
Exhaust valve clearance0.127 mmReference
Oil capacity1.9 LReference
Transmission
hydrostaticReference
TransmissionTuff Torq T40Reference
Typebelt-driven hydrostaticReference
Gearsinfinite forward and reverseReference
Automatic transmission with right-side accelerator and decelerator/reverse foot pedals. Left-side brake pedal. Cruise control is standard equipment.Reference
PTO & Hydraulics
Mid PTOelectric independentReference
Dimensions
Wheelbase124 cmReference
Weight238 kgReference
Front tire15x6.00-6Reference
Rear tire20x10.00-8Reference
Lawn/turf front15x6.00-6Reference
Lawn/turf rear20x10.00-8Reference
Length174 cmReference
Width152 cmReference
Height114 cmReference
John Deere D140 attachments
48" mid-mount mower deckReference
snowblowerReference
bladeReference
D140 Serial Numbers
Location:Serial number on rear of tractor, left side, under fender.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps9Reference
Battery volts12Reference
Battery GroupU1Reference
Attachment overview
48" mid-mount mower deckReference
SnowblowerReference
BladeReference
48" Mower deck
Typemid-mount John Deere Edge 48Reference
Type3-blade with manual with spring assist liftReference
Cutting width121 cmReference
Overall width152 cmReference
Cut height2 to 10 cmReference
Cut positions13Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
