Lawn Tractor · 2011Unverified

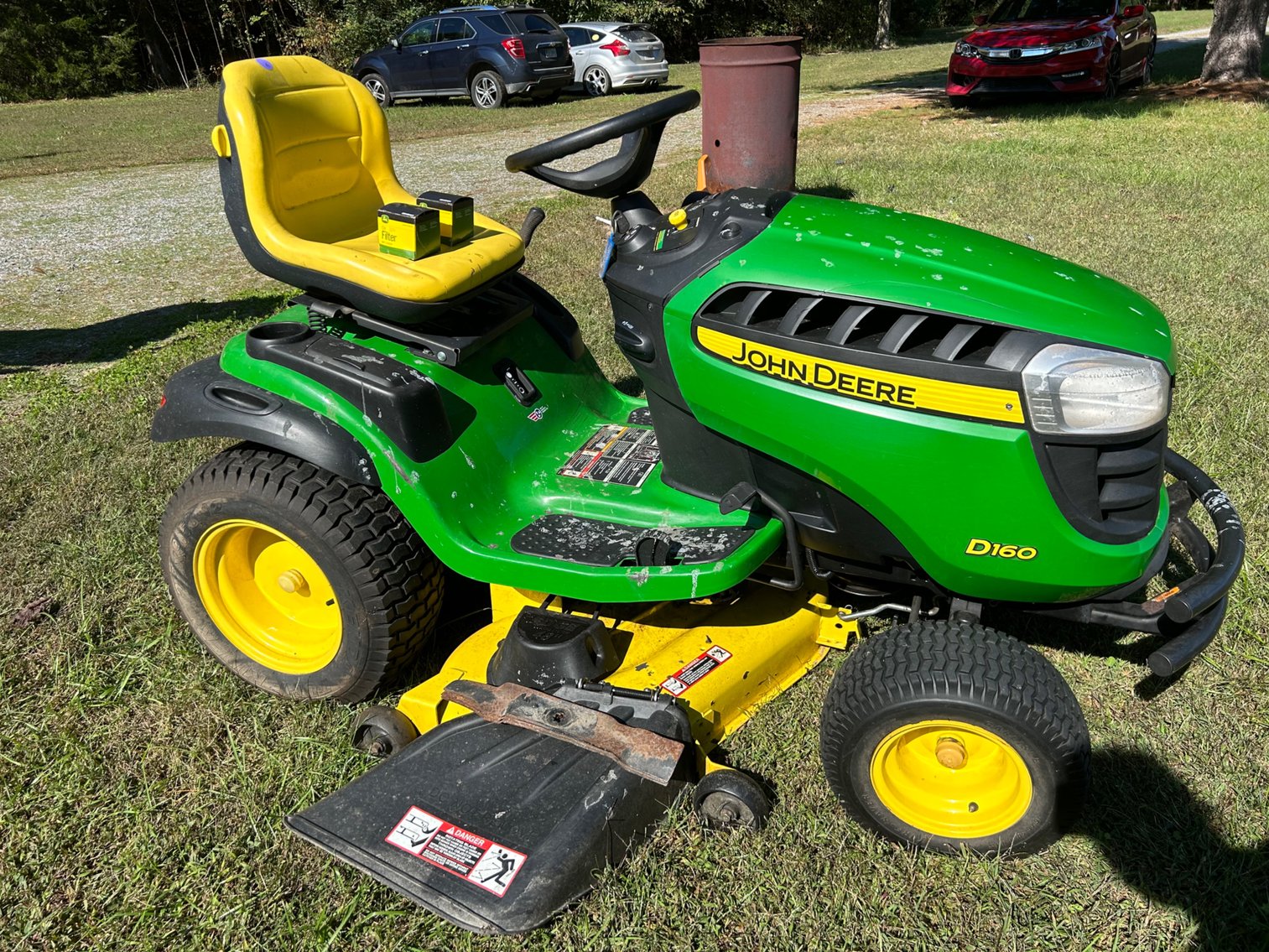

John Deere D160
John Deere D160 — D100 Series · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
238 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Lawn tractorReference
Built in Greeneville, Tennessee, USAReference
Original price$2,599 (2011 )Reference
Original price$2,349 (2015 )Reference
Two-wheel driveReference
Manual steeringReference
Mechanical shoe on transaxle brakesReference
Open operator station. Adjustable 15-inch tall seat with 5.5-inches of travel in ten positions and lumbar adjustment. Fender-mounted cup holder. Optional nylon sunshade canopy or snow enclosure. Optional 12-volt power outlet.Reference
Engine
25HP Briggs & Stratton 724cc 2-cyl gasolineReference
Fuel tank15.1 LReference
Fuel tank9.1 LReference
Briggs & Stratton ELS 44Reference
gasolineReference
2-cylinderReference
air-cooled vertical-shaft V-TwinReference
The Deere D160 was rated at 24 HP until 2014. From 2014 on, it was rated at 25 HP.Reference
Displacement44.2 ciReference
Bore/Stroke79 x 73 mmReference
Power (gross)18.6 kWReference
Air cleanercartridge with foam pre-cleanerReference
StarterelectricReference
Starter volts12Reference
Oil capacity1.9 LReference
Sparkplug gap0.762 mmReference
Point gap0.229 mmReference
Intake valve clearance0.127 mmReference
Exhaust valve clearance0.127 mmReference
Transmission
hydrostaticReference
TransmissionTuff Torq HD K46Reference
Typebelt-driven hydrostaticReference
Gearsinfinite forward and reverseReference
Oil changesealed unit, owner service is not recommendedReference
Hydrostatic transmission with right-side accelerator and decelerator/reverse foot pedals. Left-side brake pedal. Cruise control is standard equipment.Reference
PTO & Hydraulics
Front PTOindependentReference
ClutchelectricReference
Dimensions
Wheelbase124 cmReference
Weight238 kgReference
Front tire16x6.5-8Reference
Rear tire22x9.5-12Reference
Lawn/turf front16x6.5-8Reference
Lawn/turf rear22x9.5-12Reference
Length175 cmReference
Width152 cmReference
Height114 cmReference
John Deere D160 attachments
48" mid-mount mower deckReference
snowblowerReference
bladeReference
D160 Serial Numbers
Location:Serial number on rear of tractor, left side, under fender.Reference
2011B100001Reference
2012C300001Reference
2013D400001Reference
2014E500001Reference
2015F600001Reference
2016G700001Reference
2017H810001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps16Reference
Battery volts12Reference
Battery GroupU1Reference
Attachment overview
48" mid-mount mower deckReference
SnowblowerReference
BladeReference
48" Mower deck
Typemid-mount John Deere Edge 48Reference
Type3-blade with manual with spring assist liftReference
Cutting width121 cmReference
Overall width152 cmReference
Cut height2 to 10 cmReference
Cut positions13Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
