Lawn Tractor · 2011Unverified

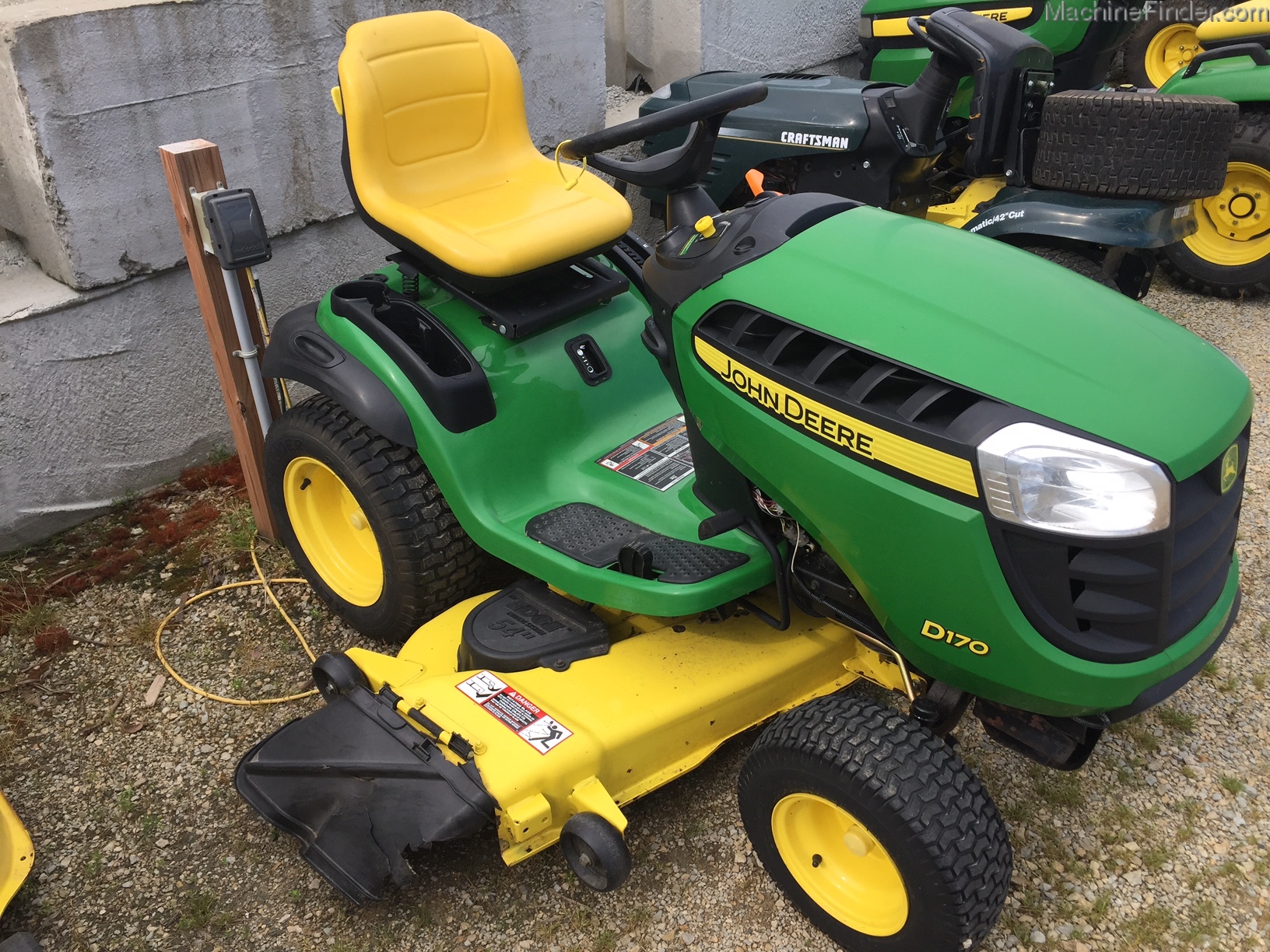

John Deere D170
John Deere D170 — D100 Series · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
262 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Lawn tractorReference
Built in Greeneville, Tennessee, USAReference
Original price$2,799 (2011 )Reference
Original price$2,799 (2015 )Reference
Two-wheel driveReference
Manual steeringReference
Mechanical shoe on transaxle brakesReference
Open operator station. Adjustable 15-inch tall seat with 5.5-inches of travel in ten positions and lumbar adjustment. Fender-mounted cup holder. Optional nylon sunshade canopy or snow enclosure. Optional 12-volt power outlet.Reference
Engine
25HP Briggs & Stratton 724cc 2-cyl gasolineReference
Fuel tank15.1 LReference
Fuel tank9.1 LReference
Briggs & Stratton ELS 44Reference
gasolineReference
2-cylinderReference
air-cooled vertical-shaft V-TwinReference
The Deere D170 was rated at 26 HP until 2014. From 2014 on, it was rated at 25 HP.Reference
Displacement44.2 ciReference
Bore/Stroke79 x 73 mmReference
Power (gross)18.6 kWReference
Air cleanercartridge with foam pre-cleanerReference
StarterelectricReference
Starter volts12Reference
Oil capacity1.9 LReference
Sparkplug gap0.762 mmReference
Point gap0.229 mmReference
Intake valve clearance0.127 mmReference
Exhaust valve clearance0.127 mmReference
Transmission
hydrostaticReference
TransmissionTuff Torq HD K46Reference
Typebelt-driven hydrostaticReference
Gearsinfinite forward and reverseReference
Oil changesealed unit, owner service is not recommendedReference
Hydrostatic transmission with right-side accelerator and decelerator/reverse foot pedals. Left-side brake pedal. Cruise control is standard equipment.Reference
PTO & Hydraulics
Mid PTOelectric independentReference
Dimensions
Wheelbase124 cmReference
Weight262 kgReference
Front tire16x6.5-8Reference
Rear tire22x9.5-12Reference
Lawn/turf front16x6.5-8Reference
Lawn/turf rear22x9.5-12Reference
Length175 cmReference
Width173 cmReference
Height114 cmReference
John Deere D170 attachments
54" mid-mount mower deckReference
snowblowerReference
bladeReference
D170 Serial Numbers
Location:Serial number on rear of tractor, left side, under fender.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps16Reference
Battery volts12Reference
Battery GroupU1Reference
Attachment overview
54" mid-mount mower deckReference
SnowblowerReference
BladeReference
54" Mower deck
Typemid-mount John Deere Edge 54Reference
Type3-blade with manual with spring assist liftReference
Cutting width137 cmReference
Overall width173 cmReference
Cut height2 to 10 cmReference
Cut positions13Reference
