Lawn Tractor · 2008Unverified

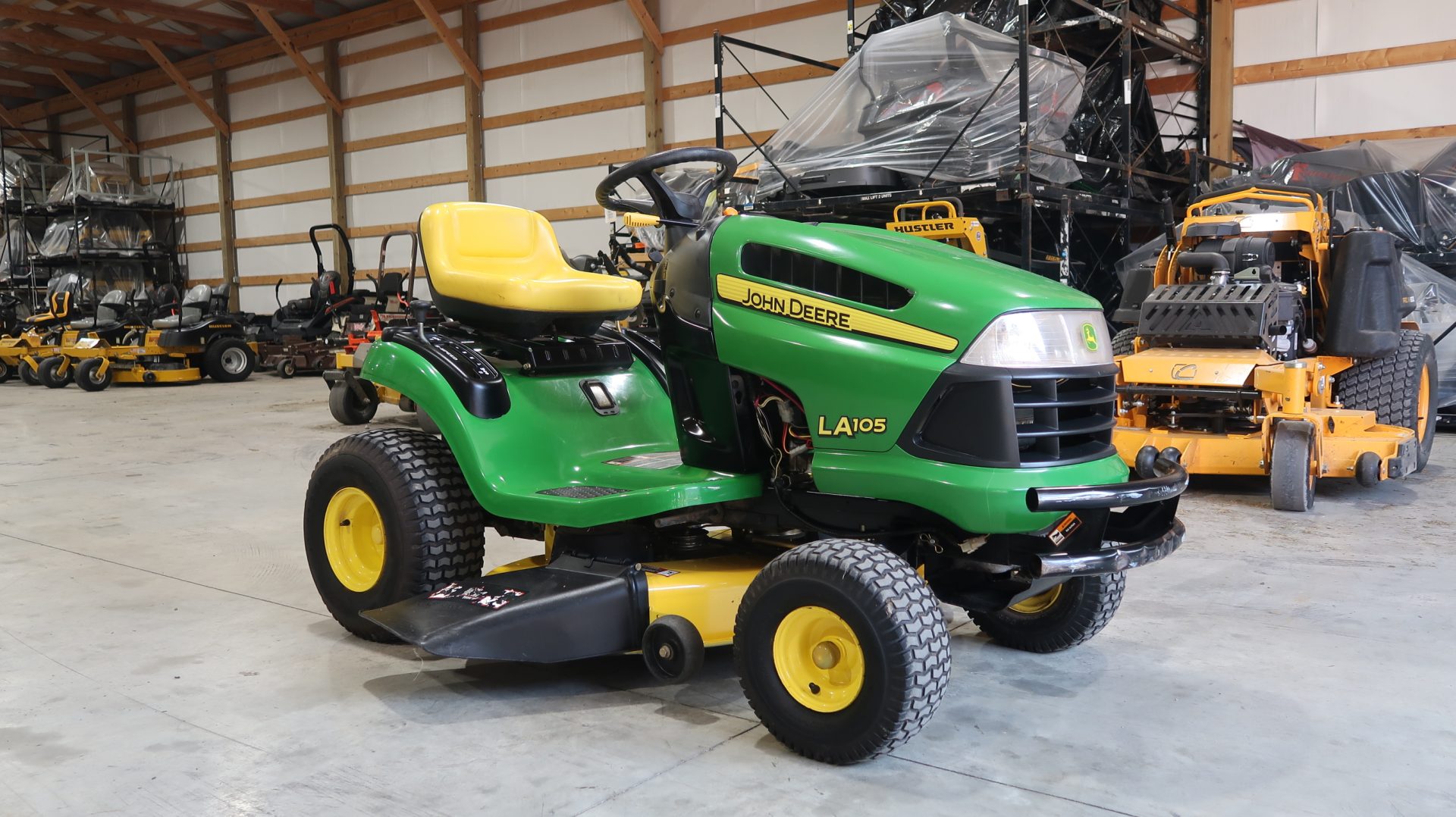

John Deere LA105
John Deere LA105 — LA105 Series · 20 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Weight
200 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Lawn tractorReference
Built in Greeneville, Tennessee, USAReference
Original price was $1,499 in 2010Reference
Two-wheel driveReference
Manual steeringReference
Open operator station. Adjustable seat (10 position, 5.5-inches travel) and cup holder. Optional nylon canopy.Reference
Variants
LA105gear driveReference
LA115hydro driveReference
Engine
19.5HP Briggs & Stratton 499cc 1-cyl gasolineReference
Fuel tank7.9 LReference
Briggs & Stratton 31Reference
gasolineReference
1-cylinderReference
air-cooledReference
Displacement30.5 ciReference
Bore/Stroke91 x 78 mmReference
Power (gross)14.5 kWReference
Air cleanerpaper and foam elementsReference
Starter volts12Reference
Sparkplug gap0.762 mmReference
Intake valve clearance0.102 mmReference
Exhaust valve clearance0.152 mmReference
Oil capacity1.4 LReference
Transmission
5-speed gearReference
TransmissionDana 4360Reference
Typebelt-driven gearReference
Gears5 forward and 1 reverseReference
Oil changesealed unit, owner service is not recommendedReference
Dimensions
Wheelbase124 cmReference
Weight200 kgReference
Front tire15x6.00-6Reference
Rear tire20x8.0-8Reference
Lawn/turf front15x6.00-6Reference
Lawn/turf rear20x8.0-8Reference
Length174 cmReference
Width131 cmReference
Height107 cmReference
John Deere LA105 attachments
42" mid-mount mower deckReference
snowblowerReference
bladeReference
LA105 Serial Number Location
Serial number plate under the left-rear fender.Reference
LA105 Serial Numbers
2008050001Reference
2009200001Reference
2010300001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging amps9Reference
Battery volts12Reference
Battery GroupU1Reference
Questions
I have a LA105 and I see a picture of the choke sign on the dash but have no clue where the knob or lever is. The choke is engaged at the full throttle position. Once the engine is running the throttle lever should be moved just below this position to disengage the choke.Reference
Attachment overview
42" mid-mount mower deckReference
SnowblowerReference
BladeReference
42" Mower deck
Typemid-mount John DeereReference
Type2-blade with manual liftReference
Cutting width106 cmReference
Overall width132 cmReference
Cut height2 to 10 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
